How to replace the Sanyo PLC-XP10 projector lamp

Sanyo PLC-XP10 Projector, Sanyo POA-LMP18 (service parts no 610 279 5417)

Sanyo PLC-XP10 Projector

STEP-BY-STEP INSTRUCTIONS FOR SANYO PLC-XP10 LAMP REPLACEMENT

If your projector Sanyo PLC-XP10 lamp no longer turns on, it needs to be replaced.  If the picture is dim or looks unnatural the Sanyo POA-LMP17 (service parts no 610 276 3010) is reaching its end of life. If the Replace Lamp Indicator light on the front panel is blinking orange, you must replace the SSanyo POA-LMP17 (610 276 3010) immediately. Follow our simple step-by-step instructions to replace your lamp in the Sanyo PLC-XP10 projector easily. Sanyo PLC-XP10 Replacement Lamp Indicator, Sanyo POA-LMP18 (service parts no 610 279 5417)

The lifespan of your Sanyo POA-LMP17 lamp will vary depending on how much the projector is used and if the filters are cleaned regularly.

Before Installation

Buy your Sanyo POA-LMP17 (610 276 3010) from an authorized manufacturer and avoid the lower-priced knock-off lamps. These counterfeit lamps are usually made with inferior parts that can damage your projector, they may end up costing you more if the damage the sensitive mechanisms in your Sanyo PLC-XP10 projector. Buying from a legitimate source keeps your projector under warranty and gives you a solid guarantee.

Looking for a less expensive option? Want more information? Watch our step-by-step video on replacing only the Sanyo POA-LMP17 (service parts no 610 276 3010) bulb instead of the entire lamp housing.

Replacing the Sanyo POA-LMP17 Lamp Assembly

Sanyo PLC-XP10 Lamp Cover, Sanyo POA-LMP18 (service parts no 610 279 5417)

  1. Allow the Sanyo PLC-XP10 projector to thoroughly cool before changing the lamp. Turn off the projector, unplug the AC cord and allow 45 to 60 minutes for the projector to cool. These projectors operate under high heat and there is a possibility of being burned, if the projector is not fully cooled before changing the Sanyo POA-LMP17  lamp.
  2. The lamp cover for the PLC-XP10 projector is located at the bottom of the projector. Gently turn over the projector onto its side and loosen the screw holding the cover in place. Place the cover to one side. Sanyo PLC-XP10 Lamp Cage, Sanyo POA-LMP18 (service parts no 610 279 5417)
  3. Inside you’ll find the Sanyo POA-LMP17 (service parts no 610 276 3010) lamp cage. Loosen both screws holding the lamp cage in place. Grab the lamp handle and gently lift the lamp out of its socket. Place to one side. Be sure to dispose of the lamp properly through a local recycling program.
  4. Taking the new Sanyo POA-LMP17 (service parts no 610 276 3010) lamp cage by the handle—avoid touching the actual bulb as this can break or damage the lamp. Without forcing the lamp, place it into the slot.
  5. Once the lamp is in, tighten both screws on the Sanyo POA-LMP17 Lamp Assembly. Make sure the screws have been tightened properly or the Sanyo PLC-XP10 projector will not turn on.
  6. Replace the Lamp Cover and tighten the screw. Re-connect the power cord and turn on the Sanyo PLC-XP10 projector If the Sanyo POA-LMP17 (610 276 3010) lamp does not turn on after the warm-up period, try re-installing the lamp. Reset the Lamp Counter Screen by following the instructions below.

NOTE: Your old Sanyo POA-LMP17 (service parts no 610 276 3010) lamp should be properly recycled. These lamps contain mercury and can’t be placed into common garbage.



RESETTING THE LAMP REPLACEMENT MONITOR TIMER FOR SANYO PLC-XP10

In order for the projector to properly track the lamp life of your Sanyo POA-LMP17 (service parts no 610 276 3010) you’ll need to reset the Lamp Replacement Monitor Timer. Failure to do so can result in the Replace Lamp Indicator not tracking the lamp life properly.

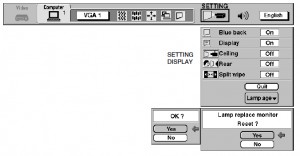

Sanyo PLC-XP10 Lamp Timing Monitor

  • Press SELECT (rear click) to have the SETTING DISPLAY screen appear.
  • Press the POINT DOWN button and a red arrow shows up on screen.
  • Using the POINT UP/DOWN button, select the LAMP PAGE and then press SELECT.
  • You’ll see the message “Lamp replace monitor reset?
  • Move the arrow to YES and press SELECT.
  • OK is shown for confirmation. Press YES and then the SELECT button.
  • Move the arrow QUIT and press SELECT to exit the MENU and return to the screen.
  • Your newly installed Sanyo POA-LMP17 (610 276 3010) should last between 1,000 to 2,000 hours depending on usage and maintenance of the Sanyo PLC-XP10 projector.



TIPS FOR EXTENDING THE SANYO POA-LMP17 LAMP

Make your newly installed Sanyo POA-LMP17 (service parts no 610 276 3010) last longer:

  • Wait at least five minutes before turning the Sanyo PLC-XP10 projector off.
  • Don’t operate the projector continuously without letting it stand for at least one hour turned off every 24 hours.
  • Cleaning the air filter regularly will also prolong the life of the Sanyo POA-LMP17 (service parts no 610 276 3010) and prevent the Sanyo PLC-XP10 from overheating.
