Install a new Sanyo PLC-XU47 / PLC-XU48 projector lamp in 3 easy steps
Follow our easy 3-step guide to a new projector lamp.
STEP ONE: Purchase the correct projector lamp
The lifespan of your Sanyo POA-LMP55 (service part no 610 309 2706) lamp will vary depending on how much the projector is used and if the filters are cleaned regularly. When the Sanyo PLC-XU47 / PLC-XU48 projector lamp is nearing its end of life you’ll notice the Lamp Replacement indicator is blinking yellow.
Other warning sings may include a picture that is dim with unnatural colors or a projector that won’t turn on.
Save money and protect your Sanyo PLC-XU47 / PLC-XU48 projector by investing in an original Sanyo POA-LMP55 (610-309-2706) projector lamp. Generic lamps may look like a great bargain since they are generally cheaper, however, these knock-off lamps are created with inferior materials and may actually cost you more in the long run. Knock-offs are susceptible to explosions, have a shorter life span and can damage the precise components in your Sanyo PLC-XU47 / PLC-XU48projector. Installing a knock-off generic lamp also voids your warranty.
Learn more about spotting dangerous projector lamps by reading our article: 7 tips for spotting counterfeits.
STEP TWO: Install the Sanyo POA-LMP55 lamp
NOTE: Allow the Sanyo PLC-XU47 / PLC-XU48 projector to thoroughly cool before changing the lamp. Turn off the projector, unplug the AC cord and allow 45 to 60 minutes for the projector to cool. These projectors operate under high heat and there is a possibility of being burned, if the projector is not fully cooled before changing the Sanyo POA-LMP55 (service part no 610 309 2706) lamp.
- The lamp cover for the Sanyo PLC-XU47 / PLC-XU48 is at the bottom of the projector. Gently turn projector over and loosen the screw holding the cover in place. Place the cover to one side.
- Inside you’ll find the Sanyo POA-LMP55 (service part no 610 309 2706) lamp cage. Loosen both screws holding the lamp cage in place.
- Grab the lamp handle and gently lift the lamp out of its socket. Place to one side. Be sure to dispose of the used lamp through a local recycling program. Don’t throw this lamp into regular garbage as it contains mercury.
- Taking the new Sanyo POA-LMP55 lamp assembly by the handle place it into the slot. Avoid touching the actual bulb as the oil from your fingers can burn a black spot on the lenses or you can accidentally break the bulb. Don’t force the lamp into place — it should slide into the slot easily.
- Once the lamp is in, tighten both screws on the Sanyo POA-LMP55 (6103092706) lamp assembly. Make sure the screws have been tightened properly or the Sanyo PLC-XU47 / PLC-XU48 projector will not turn on.
- Replace the Lamp Cover and tighten the screw. Re-connect the power cord and turn on the Sanyo PLC-XU47 / PLC-XU48 projector. If the Sanyo POA-LMP55 (service part no 610 309 2706) lamp does not turn on after the warm-up period, try re-installing the lamp.
- Reset the Lamp Replacement Counter following the instructions below.
NOTE: Your old Sanyo POA-LMP55 (service part no 610 309 2706) lamp should be properly recycled. These lamps contain mercury and can’t be placed into common garbage.
STEP THREE: Reset the Sanyo PLC-XU47 / PLC-XU48 Lamp Replace Counter
The Lamp Replace Counter for the Sanyo PLC-XU47 / PLC-XU48 will track the correct age of your newly installed lamp and trigger the Lamp Replacement Indicator. Failure to reset the counter may result in the projector not tracking the end of life for the Sanyo POA-LMP55 (610-309-2706) and letting the projector inadvertently use the lamp past its normal life cycle. Your projector may stop working suddenly if the Lamp Replace Counter has not been properly set.
- Press the MENU Button to display the MAIN MENU. Press the POINT LEFT/RIGHT button and scroll right to select SETTING.
- Press the SELECT button to display the SETTING DISPLAY menu.
- Press the POINT DOWN button (a red arrow will appear).
- Move the red arrow to the LAMP AGE and then press the SELECT button.

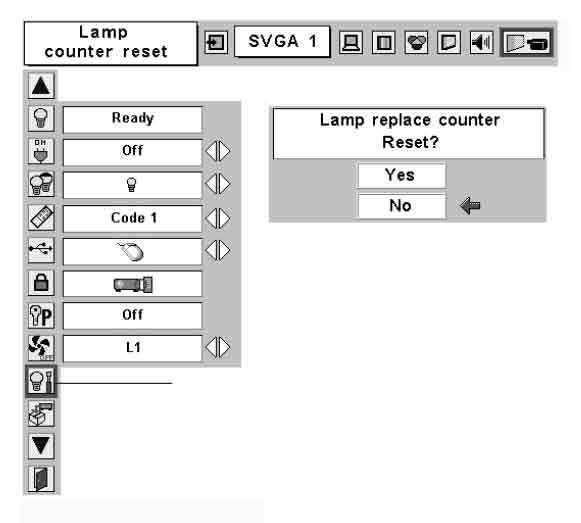

- The message “Lamp replace counter reset?” appears. Move the arrow down to YES and press the SELECT button.
- Move the arrow to QUIT and press the SELECT button.
3 tips for extending the life of the Sanyo POA-LMP55 projector lamp
Extend the life of your newly installed Sanyo POA-LMP55 (service part no 610 309 2706) by following these helpful tips:
- Wait at least five minutes before turning the Sanyo PLC-XU47 / PLC-XU48 projector off.
- Don’t operate the projector continuously without letting it stand for at least one hour turned off every 24 hours.
- Cleaning the air filter regularly will also prolong the life of the Sanyo POA-LMP55 (service part no 610 309 2706) and prevent the Sanyo PLC-XU47 / PLC-XU48 projector from overheating.
