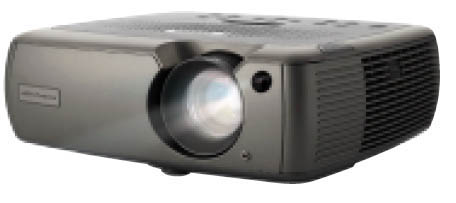

ASK Proxima C160/C180 projector lamp

Replacing the ASK Proxima C160/C180 projector lamp

How to replace the ASK Proxima C160/C180 projector lamp

When the LED light is blinking red it’s time to replace the ASK Proxima C160/C180 projector lamp. You may also see a “Replace Lamp” message on the screen. Don’t wait to replace the ASK Proxima SP-LAMP-017. The projector will turn off once the lamp life is approaching end of life.

Find out how many hours have been used on the ASK Proxima SP-LAMP-017 through the ABOUT option found on the main MENU.
nbsp

The importance of authentic lamps

Prolong the life of your ASK Proxima C160/C180 projector by installing an original ASK Proxima SP-LAMP-017 projector lamp. Generic lamps look like a great bargain but these knock-off lamps are created with inferior materials making them susceptible to explosions when installed and they can damage the sensitive components in your ASK Proxima C160/C180 projector. They’ve created using toxic substances such as Krypton-85 (which is carcinogenic to humans). “Compatible” lamps also have a shorter life span so can actually cost more money in the long run.

Buying authentic guarantees a projector lamp created with genuine, non-hazardous materials by the original manufacturer. These lamps come with money-back guarantee and keeps your warranty entact. It’s worth the few extra dollars to eliminate potential problems and have a lamp built to work properly with your ASK Proxima C160/C180 sensitive mechanisms. Learn more about spotting dangerous projector lamps by reading our article: 7 tips for spotting counterfeits.

Buy this lamp on Amazon from the following authorized dealers:

Aurabeam Replacement Lamp for Ask Proxima SP-LAMP-017 Projector with Housing
SpArc Bronze for Ask Proxima SP-LAMP-017 Projector Replacement Lamp with Housing

<br>

Replacing the lamp

Turn the ASK Proxima C160/C180 projector off and unplug the AC cord. Wait 60 minutes until the projector is fully cooled. These projectors work under extremely high heat and there is danger of burning yourself if you don’t let the projector cool off.
Turn the ASK Proxima C160/C180 projector upside down.

Loosen the screw holding the lamp cover in place.
Pry the lamp door off using the tip of the screw driver.

Remove the two screws on the ASK Proxima SP-LAMP-017 lamp module.
Grasp the metal wire handle to left the ASK Proxima SP-LAMP-017 lamp module.

Be sure to send the used lamp to a properly recycling facility. Don’t throw the used lamp into the regular garbage.

Put the new ASK Proxima SP-LAMP-017 lamp into the projector making sure it’s properly seated.
Replace the two screws on the lamp module.
Replace the door and tighten the screw.
Plug in the power cable and turn the projector back on. You are ready to reset the lamp timer.

Resetting the lamp timer

Once you have replaced the ASK Proxima SP-LAMP-017 it’s extremely important to reset the lamp timer. You want the the lamp life to properly track the hours left for your ASK Proxima SP-LAMP-017. Otherwise you run the risk of the ASK Proxima C160/C180 suddenly shutting down.
There are two ways of resetting the lamp timer.

Using the projector:

Press the decrease volume button on the remote first, followed by the increase volume button.
The LED light will blink green when the lamp hour has been reset.

Using the menu:

Open the MAIN menu.
Navigate to the SETTINGS menu. Press SELECT.
Scroll down to the SERVICE menu option. Press SELECT.
Scroll down to the LAMP RESET option. Press SELECT.

Learn more with Top tips for extending DLP projector lamp life.

Reggie says:

March 16, 2015 at 12:49 am

Hi, I have ASK Proxima C160 projector that needed a Lamp to be replaced. Then we purchased new lamp quickly but still after replacement was do, projector still showing same error message “Please replace lamp”, can someone help quickly!!!

Shelagh McNally says:
March 17, 2015 at 10:28 pm
Hi Reggie,
You have to reset the lamp timer after putting on a new lamp. This will signal the projector that a new lamp is installed and turn off the warning signs. To update the lamp timer: Using the projector:
Press the decrease volume button on the remote first, followed by the increase volume button.
The LED light will blink green when the lamp hour has been reset.
Using the menu:
Open the MAIN menu.
Navigate to the SETTINGS menu. Press SELECT.
Scroll down to the SERVICE menu option. Press SELECT.
Scroll down to the LAMP RESET option. Press SELECT.
Let me know if this helps.
Cheers,
Shelagh

Phyllis says:

May 17, 2015 at 11:23 am

I have a ASK Proxima C1560-180 projector and would like to buy a new lamp. I found ones that are “lamp only” and “lamp with housing”.
Is there some reason I need to purchase a new housing?
Also you post says that we should only buy an original lamp, not generic. When you click on that link you get a discount merchant that offers an off brand and a Phillips brand. Is Phillips considered the Original?

Shelagh McNally says:
May 19, 2015 at 1:56 am
Hi Phyllis,
Phillips is the original brand. Discount Merchant only sells Philips brands, which they manufacture themselves in North America. They have been approved by Philips so anything you buy from them will be good. You don’t need to purchase a new housing, you can replace just the lamp. However, you will need to remove the old lamp from the old housing and replace the new bulb inside. Some people find this challenging and worry about doing it perfectly so everything fits back into the projector. ASK Proxima has fairly straightforward lamps so it shouldn’t be too challenging. If you want to just do a plug and play then buy the whole lamp housing. Let me know how everything turns out.
Cheers,
Shelagh
