Eliminate white dots on your Mitsubishi WD-73737 with a new 4719-001997 DLP Chip

Mitsubishi WD-73737 with a new 4719-001997 DLP Chip Are those annoying white dots showing up on your Mitsubishi  WD-73737 screen? Keep reading for a easy and inexpensive solution.

White dots, a.k.a as white death syndrome is caused by the 4719-001997 DLP Chip wearing out. Installing a new 4719-001997 DLP Chip will restore your screen.



Buy the 4719-001997 DLP Chip on line and then follow our step-by-step guide to replace the 4719-001997 DLP Chip for the Mitsubishi WD-73734 rear projector television.

Equipment needed

  • Electric Philips screwdriver
  • needle nose pliers or a 5mm nut driver
  • antistatic gloves OR Dissipative gloves used with an antistatic wrist band
  • soft cloth or brush

Replacing the 4719-001997 DLP Chip

These instructions can also be used for the following Mitsubishi models for replacing the 4719-001997 DLP Chip:

WD-57733, WD-57734, WD-57833, WD-60638, WD-60733,WD-60735, WD-60737,WD-60738, WD-60833, WD-60837, WD-60C8,WD-60C9, WD-65638,WD-65731, WD-65733,WD-65734, WD-65735, WD-65737, WD-65738,WD-65833,WD-65835,WD-65837, WD-65838,WD-65C8,WD-65C9, WD-73638, WD-73640, WD-73733, WD-73734, WD-73735, WD-73736,WD-73737, WD-73738, WD-73833, WD-73835,WD-73837,WD-73838, WD-73840, WD-73C11, WD-73C8, WD-73C9, WD-75837, WD-82737, WD-82738, WD-82838, WD-Y657 WD-C657,WD-Y577.

Click on any picture to enlarge it.

replace 4719-001997 DLP Chip Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement
Step 1: Put on the plastic gloves. Loosen all the screws found on the back panel.









replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 2: Put the screws to the side. Gently remove the back panel.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 3: Remove the 3 screws holding the lamp engine in place. (Click on the photo to enlarge.)







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

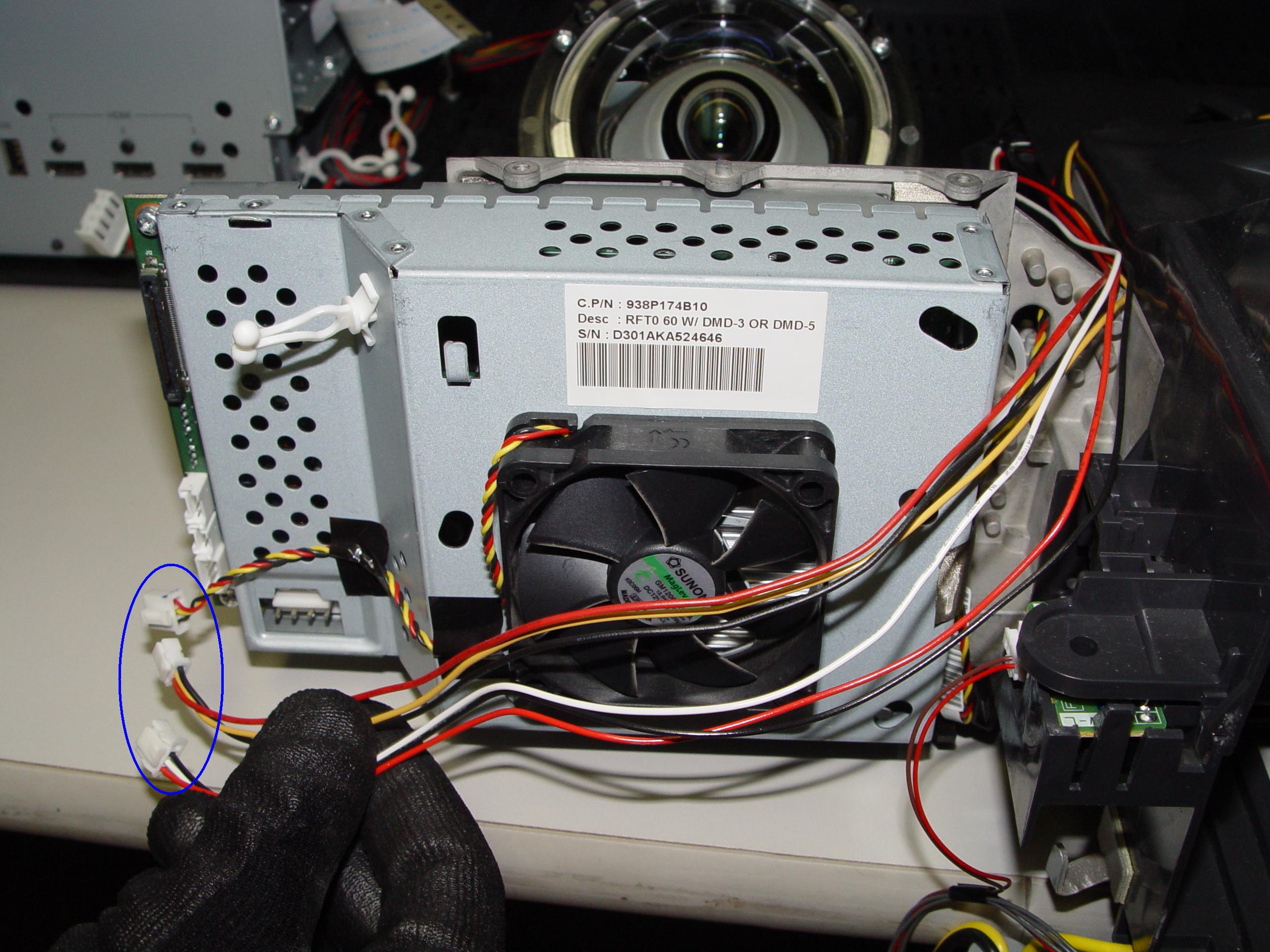

Step 4: Disconnect all the connectors. Important: don’t yank any cables.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 5: Carefully slide the light engine from the cabinet.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 6: Remove the 3 screws holding the color wheel protective cover in it place. Avoid touching any of the optical components as this can affect the quality of your picture.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 7: Carefully disconnect the cable between the terminal board and lamp.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 8: Disconnect the cables connecting the color wheel.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV

4719-001997 DLP Chip replacement

Step 9: Loosen the 3 screws holding the cooling unit/fan to the terminal board.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV

4719-001997 DLP Chip replacement



Step 10: Remove the cooling unit.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 11: Loosen the 2 screws holding the terminal cover in place. (Good time to dust this section).







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 12: Loosen the 10 screws holding the terminal in place.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 13: Carefully pop the terminal out of its holder.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV

4719-001997 DLP Chip replacement

Step 14: Unlock the old DLP Chip from the terminal. You may need to loosen the screw on the side or use a flat edged screwdriver to pop it out.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 15: Place the new DLP chip into place. Handle the DMD DLP CHIP only by the edges because it is very sensitive to sensitive to electrostatic discharge.









replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 16: Put the terminal back into its holder.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV

4719-001997 DLP Chip replacement

Step 17: Tighten the 10 screws holding the terminal in place.









replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV

4719-001997 DLP Chip replacement

Step 18: Tighten the 2 screws on terminal board’s cover









replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 19: Put the fan unit back on.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 20: Tighten the 3 screws holding the cooling unit/fan to the terminal board.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 21: Reconnect the cables connecting the color wheel.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 22: Reconnect the cable between the terminal board and lamp







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 23: Replace the color wheel protective cover and tighten the 3 screws.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 24: Re-connect all the cables running from the terminal board and light engine.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 25: Carefully place the light engine back inside the unit. Tighten the 3 holding the terminal board and light engine in place.







replace 4719-001997 DLP Chip in the Mitsubishi WD-73737 RPTV



4719-001997 DLP Chip replacement

Step 26: Put the back panel back onto the TV.







replace 4719-001997 DLP Chip in the Mitsubishi WD-737387 RPTV



4719-001997 DLP Chip replacement

Step 27: Tighten all the screws on the back panel.










Mitsubishi WD-73737 with a new 4719-001997 DLP Chip

4719-001997 DLP Chip replacement

Enjoy your crisp, clear picture on your Mitsubishi WD-73737.









Learn more about your WD-73737 RPTV:

7 Tips for extending RPTV lamp life

RPTV Troubleshooting: TV won’t turn on

Consumer Alert: The dangers of RPTV generic lamps









Posted in FixYourDLP, Rear Projection TV Lamp Replacement Tagged with: , , , , , , , ,
3 comments on “Eliminate white dots on your Mitsubishi WD-73737 with a new 4719-001997 DLP Chip
  1. avatar James says:

    The reason the DLP chip fails is it overheats.
    It’s got a 180W lamp shining on it, and when the gray heatsink tape dries out, the DLP cooks.
    You need to scrape the gray heatsink tape off the heatsink with your fingernail, wipe and clean the heatsink and DLP surfaces with 91% rubbing alchohol. Apply quality heatsink compound such as Aavid Thermalcote I to both heatsink and DLP surfaces. Do not cinch down the heatsink screws. Back them off a little so the springs do their job and allow the heatsink to float and lay flat against the DLP.

    I think following the instructions above without using new heatsink grease will result in white dot failure again. Mitsubishi cheaped out on the heatsink grease, and all these sets are failing.

  2. avatar fishydude says:

    A couple of technical errors.

    Dissipative gloves, rather than plastic gloves, are recommended. Plastic gloves build electrostatic charge. The gloves shown are the typical black dissipative gloves.

    Step 15. I believe you meant to write “sensitive to electrostatic discharge” not antistatic. :)

    Just ordered a replacement board. These instructions will make the swap very easy. 10-Q

    • avatar Shelagh McNally says:

      Hey fishydude!
      Thanks for the corrections. They’ve been put into the blog. Glad the instructions helped.
      Cheers,
      the fixyourdlp Team
