The easy way to replace the Epson Powerlite 77C projector lamp

Epson-PowerLite-77C-projector-Epson-ELPLP41-lampFollow this quick 3-step guide to install a new lamp in your Epson Powerlite 77C projector.

Note: These instructions can also be used for the Epson Powerlite 77 projector.

Step 1: When to replace

Watch for the signs that the Epson ELPLP41 needs to be replaced in the Epson Powerlite 77C projector:

  • Dark image
  • Image that has deteriorated
  • On warning message appears on screen
  • Lamp light flashes orange

You can expect up to the 3000 hours of use with the Epson ELPLP41 before it needs to be replaced, if you have installed an authentic lamp.

Step 2: Buy authentic

It’s critical to install a genuine Epson ELPLP41 rather than a compatible generic lamps. Although lower in price initially, generic, knock-off lamps end up costing much more in the long run. Counterfeit generic lamp have a shorter lamp life, damage the components in your projector, have poor picture quality and are prone to explosion. You also run the risk of being exposed to the carcinogenic substances such Krypton-85 used in the making of these lamps.

6 reasons to buy authentic

Be sure the purchase an authentic Epson ELPLP41 projector lamp for your Epson Powerlite 77C projector. Save yourself unnecessary headaches and buy authentic from a recognized dealer. You’ll be getting a far superior product with a replacement guarantee and tech support.

Read more about the 7 Ways to Spot a Counterfeit Lamp.

Step 3: Install the Epson ELPLP41

Before installation:

  • Turn power button off wait for light to stop flashing.
  • Turn off power switch on Epson Powerlite 77C projector.
  • Unplug the power cord.
  • Allow the Epson Powerlite 77C projector to cool for one hour – it should be cool to the touch. Inside of the projector can be very hot since these machines operator under high temperatures and you run the risk of being burned if the projector has not cooled down.
  • Do not operate the projectors while any of the lamps are removed as this may result in malfunctions, fire hazard and other accidents.

Caution: Don’t touch the screen or the actual bulb with your finger since the oil from your skin can cause a black spot on the bulb.



Epson-PowerLite-77C-projector-cover-screws-removed-Epson-ELPLP41-lamp

The lamp cover is found on top of the Epson Powerlite 77C projector. Loosen the lamp cover screw — you can’t remove it only loosen it.











Epson-PowerLite-77C-projector-remove-cover-Epson-ELPLP41-lamp





Slide the Epson Powerlite 77C lamp cover off.













Epson-PowerLite-77C-remove-lamp-screws-Epson-ELPLP41-lamp



Loosen the two screws holding the Epson ELPLP41 lamp in place. You not be able to remove them completely from the lamp — only loosen them enough to remove the lamp.











Epson-PowerLite-77C-lamp-removed-Epson-ELPLP41-lamp

Grab the Epson ELPLP41 lamp by the two indents on the lamp. Gently remove the lamp by lifting straight up.

Pulling too quickly can cause the bulb to shatter. Learn what to do should the bulb shatter.

NOTE: The Epson ELPLP41 lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamps! If you bought from an authentic manufacturer they will recycle the lamp for you at no extra cost (another reason to buy authentic lamps).





Gently insert the Epson ELPLP41 lamp following the rail guide. Make sure it’s facing the correct way. If it’s not facing the right way, the lamp will not go in properly. Push the lamp down firmly where you see the PUSH label. Tighten the screws on new Epson ELPLP41 lamp when it’s fitted properly into the projector





Epson-PowerLite-77C-cover-reinstalled-Epson-ELPLP41-lamp



Replace the lamp cover and tighten the screw on the Epson Powerlite 77C projector  lamp cover.
You are now ready to reset the lamp timer.











Reset the lamp timer on the Epson Powerlite 77C projector

Reset the Epson Powerlite 77C Lamp Replacement Counter only when the Epson ELPLP41 lamp has been replaced.

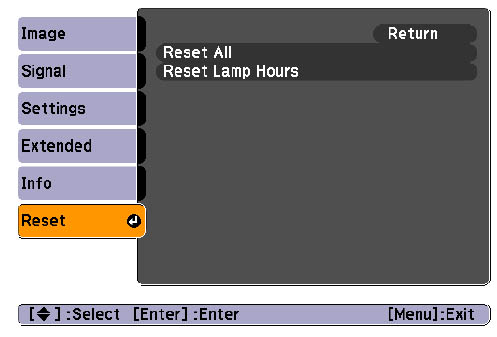

Epson-PowerLite-77C-reset-lamp-timer-Epson-ELPLP41-lamp

  • Press the MENU button on the remote control. The Lamp Reset Menu will appear.
  • Scroll down to the RESET LAMP HOURS. Press ENTER.
  • A prompt appears asking if you want to replace the lamp.
  • Select YES and press ENTER.
    Press MENU to exit.







Prolong the life of the Epson ELPLP41 lamp:

Extend the life of the newly installed Epson ELPLP41 with the following tips:

  • Keep your air filters clean to avoid overheating the projector.
  • Turn off the Epson Powerlite 77C projector and let it stand for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
  • Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.
  • Learn more with Top tips for extending DLP projector lamp life
Tagged with: , , , , , , , , ,
2 comments on “The easy way to replace the Epson Powerlite 77C projector lamp
  1. avatar Ryan says:

    After replacing the bulb and turning the projector back on, I noticed a sort of plastic-like or rubbery burning smell. Nothing too strong and no smoke or anything, but I’m wondering if this is normal. Thanks.

    • avatar Shelagh McNally says:

      Hi Ryan,
      Sometimes the plastic lamp cage can smell very strong. It should become fainter over the next few days. Check that the fans are working and that the air filters haven’t been blocked from dust as this can make the projector get very hot and have the lamp start to overheat. If it gets stronger or smoke starts coming out of the projector turn it off.
