Your D.I.Y guide to a new Epson PowerLite S7 projector lamp
Consult the Lamp Usage Screen to find out how many hours are left with the Epson PowerLite S7 projector lamp:
To check the number of hours left for the lamp:
- Press the MENU button.
- Scroll down to highlight the INFO menu.
- If you have used the projector for less than 10 hours, the hours will be listed at 0H.
The replacement warnings signs:
Warning signs for lamp replacement on the Epson Powerlite S7 projector:
- Dark image
- Image that has deteriorated
- “Replace the lamp” warning appears on screen.
- Lamp light flashes orange
- Lamp light turns red and stays lit
Find the right lamp
Life expectancy of the Epson ELPLP54 is 4000 hours if the Power Consumption in the Settings Menu is set at the default of Normal. If you switch to ECO mode, you can expect up to 5000 hours of usage.
It’s critical to install a genuine Epson ELPLP54 rather than a compatible generic lamps. Generic lamps look appealing because of their low cost but this should be your first indication that the lamp you are about to purchase is counterfeit. These lamps present a lot of problems and are simply not worth buying in the long run.
Find this lamp on Amazon from these authorized dealers:
- Epson – ELPLP67 Replacement Lamp for EX, MegaPlex, PowerLite 1221/1261W/S11/X12, VS V13H010L67 (DMi EA
- Epson ELPLP54 Replacement 200W Projector Lamp – UHE – 4000 Hour High Brightness, 5000 Hour Low Brightness (for Epson EX31, EX51, EX71 projectors)
- epharos ELPLP67 / V13H010L67.
- Premium Series ELPLP67
6 reasons to avoid generic lamps
- generics have shorter lamp life than original lamps
- knock off lamps have been created with toxic materials and carcinogenic parts including Krypton-85
- generic lamps are prone to explosions
- copycat lamps can damage the sensitive electronics in your projectors
- no guarantee or refunds offered with generic lamps
- your Epson PowerLite S7 warranty will be voided.
Save yourself unnecessary headaches and buy an authentic Epson ELPLP54 from a recognized dealer. You’ll be getting a far superior product with a replacement guarantee and tech support. Read more about the 7 Ways to Spot a Counterfeit Lamp.
Installing the Epson ELPLP54
- Turn power button off wait for light to stop flashing.
- Turn off power switch on Epson Powerlite S7 projector.
- Unplug the power cord.
- Allow the Epson Powerlite S7 projector to cool for one hour – it should be cool to the touch. These projectors run a high temperatures so you can burn yourself every badly if the projector has not cooled enough before being opened up.
- Do not operate the projectors while any of the lamps are removed as this may result in malfunctions, fire hazard and other accidents.
Caution: Don’t touch the screen or the actual bulb with your finger since the oil from your skin can cause a black spot on the bulb.

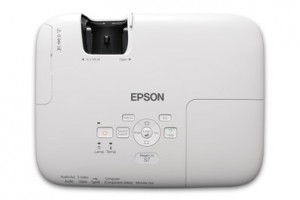

1. The lamp cover is found on top of the Epson Powerlite S7 projector. Loosen the lamp cover screw — you can’t remove it only loosen it.
2. Slide the Epson Powerlite S7 projector lamp cover off.
3. Loosen the two screws holding the Epson ELPLP54 lamp in place.
5. Gently insert the Epson ELPLP54 lamp making sure it’s facing the right way.
6. Tighten the screws on the new Epson ELPLP54 lamp. Be sure not to tighten too much or the lamp may not work.
8. Reset the lamp timer.
Resetting the lamp timer
Reset the Epson Powerlite S7 projector Lamp Replacement Counter only when the Epson ELPLP54 lamp has been replaced.
- Press the MENU button on the remote control. The Lamp Reset Menu will appear.
- Scroll down to the RESET LAMP HOURS. Press ENTER.
- A prompt appears asking if you want to RESET LAMP HOURS?
- Select YES and press ENTER.
- Press MENU to exit.
Prolong lamp life:
Extend the life of the newly installed Epson ELPLP54 with the following tips:
- Keep your air filters clean to avoid overheating the projector.
- Turn off the Epson Powerlite S7 projector projector and let it stand for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
- Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.
- Learn more with Top tips for extending DLP projector lamp life
