3 Steps to a new Epson EB-S72 projector lamp

Changing the Epson ELPLP54 projector lamp in your Epson EB-S72 projector is simple and quick when you follow our step-by-step guide.

Life expectancy of the Epson ELPLP54 is 3900 hours if the Power Consumption in the Settings Menu is set at the default of Normal. If you switch to ECO mode, you can expect up to 4900 hours of usage.

Step 1: Checking projector lamp life

Consult the Lamp Usage Screen to find out how much time is left with Epson ELPLP54 lamp:

Press the MENU button.
Scroll down to highlight the INFO menu.
If you have used the projector for less than 10 hours, the hours will be listed at 0H.

Watch for these warning signs on the Epson EB-S72:

Dark image
Image that has deteriorated
“Replace the lamp” warning appears on screen.

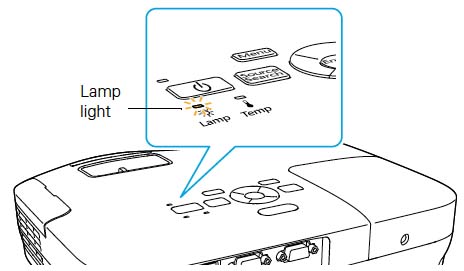

Lamp light flashes orange

Step 2: Buying the right lamp projector lamp

It’s important to install the correct kind of projector lamp into your Epson EB-S72 projector so it can keep working at it’s optimum levels. Generic lamps don’t offer the same kind of performance or value — even though they are sold at cheaper prices. Using a counterfeit generic lamp will also void any warranty for your Epson EB-S72 projector. Save time and money — buy an authentic Epson ELPLP54 projector lamp.

6 reasons to avoid generic lamps:

generics have shorter lamp life than original lamps
knock off lamps have been created with toxic materials and carcinogenic parts including Krypton-85
generic lamps are prone to explosions
copycat lamps can damage the sensitive electronics in your projectors
no guarantee or refunds offered with generic lamps.

Learm how to protect yourself with 7 Ways to Spot a Counterfeit Lamp.

Step 3: Installing the Epson ELPLP54 projector lamp

Before installation:

Turn power button off wait for light to stop flashing.
Turn off power switch on Epson EB-S72 projector.
Unplug the power cord.
Allow the Epson EB-S72 projector to cool for one hour – it should be cool to the touch. These projectors run a high temperatures so you can burn yourself every badly if the projector has not cooled enough before being opened up.
Do not operate the projectors while any of the lamps are removed as this may result in malfunctions, fire hazard and other accidents.

Caution: Don’t touch the screen or the actual bulb with your finger since the oil from your skin can cause a black spot on the bulb.

1. The lamp cover is found on top of the Epson EB-S72 projector. Loosen the lamp cover screw — you can’t remove it only loosen it.

2. Slide the Epson EB-S72 projector lamp cover off.

3. Loosen the two screws holding the Epson ELPLP54 projector lamp in place.

4. Grab the Epson ELPLP54 projector lamp by the wire handle. Gently pull the lamp out. Pulling too quickly can cause the Epson ELPLP54 bulb to shatter. Learn what to do should this happen.

NOTE: The Epson ELPLP54 projector lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamps!

5. Gently insert the Epson ELPLP54 projector lamp making sure it’s facing the right way.

6. Tighten the screws on the new Epson ELPLP54 projector lamp. Be sure not to tighten too much or the lamp may not work.

7. Replace the lamp cover and tighten the screw on the Epson EB-S72 projector lamp cover.

8. Reset the projector lamp timer.

Reset the projector lamp timer

Reset the Epson EB-S72 projector Lamp Replacement Counter only when the Epson ELPLP54 projector lamp has been replaced.

Press the MENU button on the remote control. The Lamp Reset Menu will appear.
Scroll down to the RESET LAMP HOURS. Press ENTER.
A prompt appears asking if you want to RESET LAMP HOURS?
Select YES and press ENTER.
Press MENU to exit.

Prolong the life of the Epson ELPLP54 projector lamp:

Extend the life of the newly installed Epson ELPLP54 projector lamp with the following tips:

Keep your air filters clean to avoid overheating the projector.
Turn off the Epson EB-S72 projector projector and let it stand for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.
Learn more with Top tips for extending DLP projector lamp life
