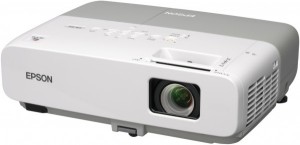

Your D.I.Y. guide to a new Epson EMP-83H projector lamp

Epson-EMP-83C-projector-Epson-ELPLP42-lampFollow this guide to replace the Epson EMP-83H projector lamp

Watch for the signs that Epson EMP-83H projector lamp needs replacing:

Epson-EMP-83C-projector-Epson-ELPLP42-lamp

  • Dark image
  • Image that has deteriorated
  • On warning message appears on screen

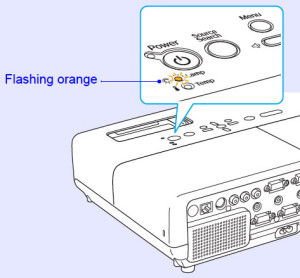

  • Lamp light flashes orange

 Why buy an authentic lamp?

The Internet has been flooded with companies offering “generic” compatible lamps. Although they seem like a bargain, these lamps are actually not good for your Epson EMP-83H projector:

Be sure the purchase an authentic Epson ELPLP42 to protect your health and the safety of your Epson EMP-83H projector. Read more about the 7 Ways to Spot a Counterfeit Lamp.

Buy this lamp on Amazon sold by these authorized dealers:

Install the Epson ELPLP42

Before installation:

  • Turn off power switch on the back of the Epson EMP-83H projector.
  • After you turn off the projector’s power and the confirmation buzzer beeps twice, disconnect the power cable
  • Allow the Epson EMP-83H projector to cool for one hour – it should be cool to the touch. Inside of the projector can be very hot since these machines operator under high temperatures and you run the risk of being burned if the projector has not cooled down.
  • Do not operate the projectors while any of the lamps are removed as this may result in malfunctions, fire hazard and other accidents.

Epson-EMP-83H-loosen_cover_screws-Epson-ELPLP42-lampEpson-EMP-83C-loosen_cover_screws-Epson-ELPLP42-lamp

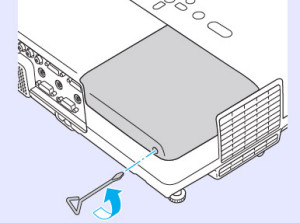

1. The lamp cover is found on top of the Epson EMP-83H projector. Loosen the lamp cover screw — you can’t remove it only loosen it.

Epson-EMP-83H-remove-cover-Epson-ELPLP42-lamp

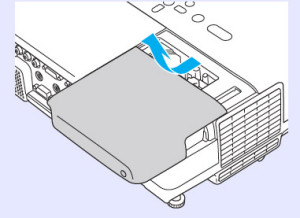

2. Slide the Epson EMP-83H projector lamp cover off.Epson-EMP-83H-remove-lamp-screw-Epson-ELPLP42-lamp

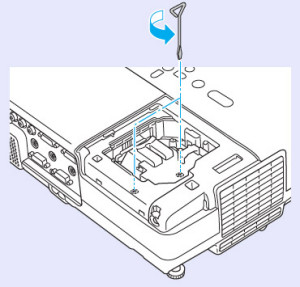

3. Loosen the two screws holding the Epson ELPLP42 lamp in place/

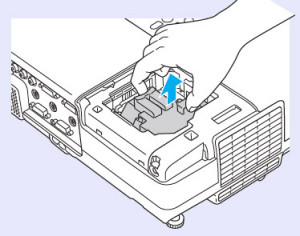

Epson_EMP_83h_lamp_out4. Grab the Epson ELPLP42 lamp by the two indents on the lamp. Gently remove the lamp. Pulling too quickly can cause the bulb to shatter. Learn what to do should the bulb shatter.

NOTE: The Epson ELPLP42 lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamps!Epson-EMP-83H-lamp-installed-Epson-ELPLP42-lamp

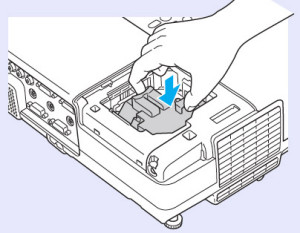

5. Gently insert the Epson ELPLP42 lamp making sure it’s facing the right way. NOTE: Don’t touch the screen or the actual bulb with your finger since the oil from your skin can cause a black spot on the bulb.

6. Tighten the screws on the new Epson ELPLP42 lamp.

Epson-EMP-83H-replace-cover-Epson-ELPLP42-lamp

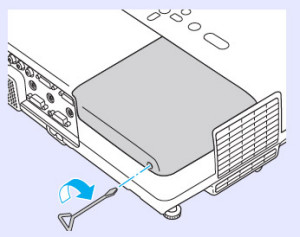

7. Replace the lamp cover and tighten the screw on the Epson EMP-83H  projector lamp cover.

8. Reset the lamp timer.

Reset the lamp timer

Reset the Epson EMP-83H projector Lamp Replacement Counter only when the Epson ELPLP42 lamp has been replaced.

Epson-EMP-83H-replace-reset-lamp-timer-Epson-ELPLP42-lamp

  • Press the MENU button on the remote control. The Lamp Reset Menu will appear.
  • Scroll down to the RESET. Press ENTER.
  • Click on RESET ALL.
  • A prompt appears asking if you want to replace the lamp.
  • Select YES and press ENTER.Press MENU to exit.



Prolong the life of the Epson ELPLP42 lamp:

Extend the life of the newly installed Epson ELPLP42 with the following tips:

  • Keep your air filters clean to avoid overheating the projector.
  • Turn off the Epson EMP-83H projector projector and let it stand for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
  • Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.
  • Learn more with Top tips for extending DLP projector lamp life
Tagged with: , , ,
6 comments on “Your D.I.Y. guide to a new Epson EMP-83H projector lamp
Join the discussion on Facebook! All your questions, answered! The Screen & Projector Group
  1. avatar Christian BOUYER says:

    Bonjour
    Ancien technicien a la retraite a un problème sur son vidéo projecteur Epson EMP-83H. .Power rouge allumer (constant)et le voyant TEMP flasching .
    je pence qu’il y a un reset a faire!!
    A savoir que j ai changer la lampe il y a 3 (lampe origine)
    ça bien marcher jusque la.
    merci pour l’éventuel petit coup de pouce
    cordialement
    Christian BOUYER
    Nouméa Nouvelle Calédonie

    • avatar Shelagh McNally says:

      Hi Christian,
      Our technicians don’t speak French, so please be patient while we get our Canadian crew to translate this for us. We will get back to you shortly.
      Regards,
      Shelagh

  2. avatar Christian BOUYER says:

    Hello there
    Old retired technician has a problem on his projector Epson EMP-83H. .POWER Red light (constant) and the TEMP indicator flasching.
    I pence that there is a reset has to !!
    To know that I have to change the lamp there are three (light source)
    that work well until then.
    thank you for any little boost
    best regards
    Christian Bouyer
    Noumea New Caledonia

  3. avatar Christian BOUYER says:

    Hello there
    I can not do the procedure because the EMP-83H systematically put it in default.
    Power is on, the power indicator turns worm, t properly lit the lamp three seconds and apareille goes into default.
    No time to do the procedure.
    Best regards
    Christian Bouyer.

    Bonjour
    je ne peux pas faire la procedure ,car le EMP-83H ce mets systematiquement en defaut.
    Power sur on, le voyant power passe au ver,t la lampe s allume correctement 3 secondes et l apareille passe en defaut.
    Pas le temps de faire la procedure.
    Bien Cordialement
    Christian Bouyer.

    • avatar Shelagh McNally says:

      Hi Christian,
      Have you changed the lamp? If it’s gone past its lamp life hours, the projector will sense this and just go into standby. If you have replaced the lamp, then you need to reset the lamp timer. However, if you have already replaced the lamp, then try reinstalling the lamp to make sure all the connections are good. I think it would be good if you joined our forum (http://www.fixyourdlp.com/forum) where there are many experts that can look at your problem and offer some solutions. Please let me know how things are progressing.
      Regards,
      Shelagh

    • avatar Shelagh McNally says:

      Hi Christina,
      I asked one of our technicians about your questions and below is her reply:
      Hello, I am assuming you want to reset the lamp hour timer on your projector but it is not powering on long enough for you to do so? Assuming you did replace this with an OEM EMP-83H preferably with a Philips brand lamp, this might be a ballast issue. Please be careful where you purchase new lamps, some use generic bulbs and have a high defect rate.
