Changing the Epson Powerlite Home Cinema 1080 UB lamp

Epson-Home-Cinema-1080-UB-projector-Epson-ELPLP39-lampReplacing the Epson ELPLP39 lamp in your Epson PowerLite Home Cinema 1080 UB projector doesn’t have to be a complicated endeavour. Our  guide outlines what to do for a quick replacement.

When to replace?

The Epson ELPLP39 lamp lasts up to 3000 hours. Use the the Info menu to see how many hours are left until the Epson ELPLP39 reaches end of life in the Epson PowerLite Home Cinema 1080 UB. Also watch for these warning signs:

  • the projected image get darker
  • the warning lamp on the projector flashes red and then continues to flash every half-second
  • the message: “Replace the lamp” flashes on the screen when you start using the projector.

 Buying the best lamp

There are a lot of choices for buying a new Epson ELPLP39 lamp on the Internet. You need to approach many of the sites with caution since many are selling generic, knock-off lamps.

These “knock-off” lamps are sold at discount prices but can actually cost more in the long rung. They are also prone to explosions and have a much shorter life. Copy cat manufacturers have created these lamps with toxic substances such as Krypton-85, known to cause cancer. Would you compromise your health and risk your eyesight for the sake of a few dollars?

Generic lamps have been created without proper calibrating, they can also damage the sensitive imaging electronics in your Epson PowerLite Home Cinema 1080 UB. When you buy authentic you’ll be getting a guarantee with your lamp and keeping your warranty valid. Look for the seal of approval and buy from an authentic manufacturer.

Learn how to protect yourself from counterfeit manufacturers.

Step 3: Installing the Epson ELPLP39

Pre-installation preparations:

  • let the projector cool for one full hour before trying to replace the lamp. This projector operates under very high temperatures and will be very hot. You can suffer burns if you are change the lamp while the projector is still hot. too impatient to wait until the projector is cool enough.
  • press the power button and wait for the light to stop flashing.
  • turn off the power switch at the back on the projector
  • unplug any power cords to cables to prevent the projector from accidentally being turned on. running the projector without a lamp will damage the projector.

Epson-PowerLite-Home-Cinema-1080-UB-remove-lamp-cover-Epson-ELPLP39-lamp



Press the latches holding the PowerLite Home Cinema 1080 UB lamp cover in place. Gently lift off the cover and place it to one side.







Epson-PowerLite-Home-Cinema-1080-UB-loosen-lamp-screws-Epson-ELPLP39-lamp

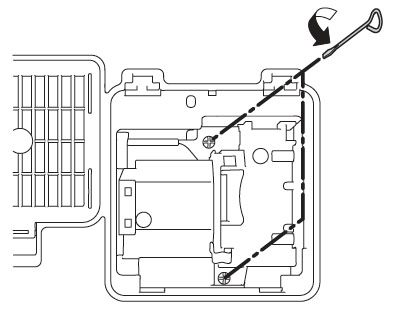

Using the screw driver provided, loosen the two screws securing the Epson ELPLP39 lamp. They won’t come all the way out so simply loosen them enough so the lamp can be lifted out.









Epson-PowerLite-Home-Cinema-1080-UB-remove-Epson-ELPLP39-lamp

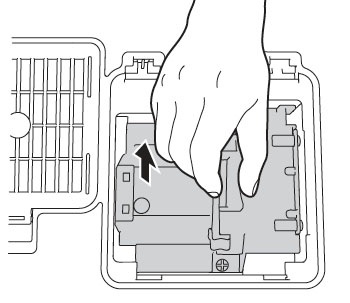

Grab the bottom of the Epson ELPLP39 lamp and pull it up with a straight motion. Be sure to properly dispose of the old lamp. Do not throw it into regular garbage as it contains mercury.

Pulling too quickly can cause the bulb to shatter. Learn what to do should the bulb shatter.



NOTE: Don’t throw the Epson ELPLP39 into regular garbage! This lamp contains mercury and should not be properly recycled your used lamps! Your authorized manufacturer will recycle the lamp for you at no extra cost. (Another reason to go with authentic lamps!)



Epson-PowerLite-Home-Cinema-1080-UB-install-new-Epson-ELPLP39-lamp

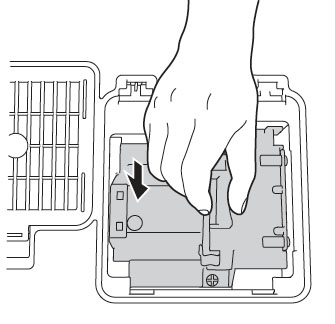

Gently line up the new Epson ELPLP39 lamp and slide it into place. Make sure not to touch the glass portion of the lamp. The oil on your fingers may cause the lamp to stop before its time.









Epson-PowerLite-Home-Cinema-1080-UB-tighten-screws-installation-Epson-ELPLP39-lamp

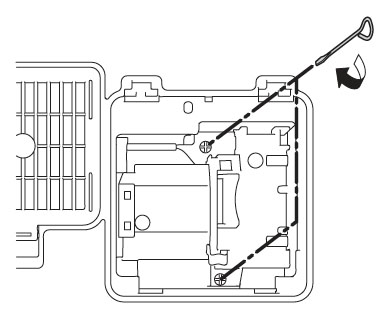

Tighten the screws on the Epson ELPLP39 lamp.









Epson-PowerLite-Home-Cinema-1080-UB-replace-lamp-cover-Epson-ELPLP39-lamp

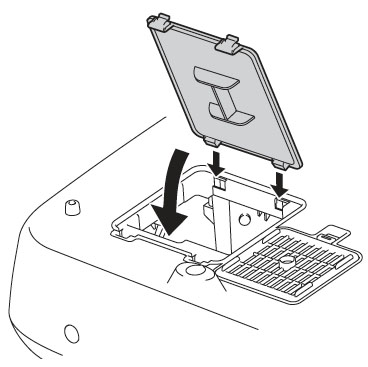

Replace the PowerLite Home Cinema 1080 UB lamp cover making sure it’s clicked into place. Otherwise, the projector will not turn on. You are now ready to reset the Lamp Usage Timer.







Reset the Lamp Usage Timer

It’s important to reset the Lamp Usage Timer so the Epson PowerLite Home Cinema 1080 UB projector will know when it’s time for a new Epson ELPLP39 lamp. Resetting the timer before installing a new Epson ELPLP39 can cause serious damage to your projector.

Epson-PowerLite-Home-Cinema-1080-UB-remote-control-menu-Epson-ELPLP39-lamp

  • Plug the projector back in.
  • Turn on the power switch on
  • Press the Power button and wait for the Epson Home Cinema 108o to warm up.
  • Press the Menu button on either the projector or remote control.
  • Scroll down to the Reset menu option.
  • Select Reset Hours.
  • A confirmation message will appear asking if you want to reset the hours Click on yes.
  • Press the Select button.
  • Press the Menu button to exit.

NOTE: A reading of 0H on the lamp usage timer means you’ve used less than 10 hours of lamp time.

Tips for extending Epson ELPLP39 lamp life

Get more hours from your Epson ELPLP39 lamp by following these maintenance tips:

  • Keep your air filters clean to avoid overheating the projector.
  • Turn off the Epson PowerLite Home Cinema 1080 UB projector and let it stand unused for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
  • Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.



Learn more with Top tips for extending DLP projector lamp life.

Tagged with: , , , , , , , , , , , , ,
2 comments on “Changing the Epson Powerlite Home Cinema 1080 UB lamp
Join the discussion on Facebook! All your questions, answered! The Screen & Projector Group
  1. avatar Jason says:

    On my projector, after fully loosening the two screws, no amount of jiggling or pulling will allow the bulb to be removed. The screws are fully loose, but something is holding the bulb in. Any suggestions here?

    • avatar Shelagh McNally says:

      Hi Jason,
      Is there another screw on the lamp? Sometimes this model was made with three screws instead of two. It may be that the color wheel is damaged and bent against the lamp holding it in place. That does happen occasionally and it a more complex problem to fix. There is a thread on our forum about this problem altho it was originally with a TV lamp.http://www.fixyourdlp.com/forum/viewtopic.php?t=637. Is the projector under warranty? You may ask about getting it replaced. However if the previous lamp was a counterfeit or generic lamp, your warranty may be voided. I will ask one of your experts for more advice and get back to you.
      Regards,
      Shelagh
