How to install a new Epson PowerLite Pro Cinema 1080 UB lamp

Epson-PowerLite-Pro-Cinema-1080-UB-projector-Epson-ELPLP39-lamp

















Wondering how to replace the lamp in your Epson PowerLite Pro Cinema 1080 UB projector? Follow this step-by-step for installing a new lamp with no hassles.

Know when to replace

Use the Info menu to see how many hours are left until the Epson ELPLP39 reaches end of life in the Epson PowerLite Pro Cinema 1080 UB. If you do regular maintenance to keep the air filters clean and use the projector between four to six hours a day, you can expect the Epson ELPLP39 lamp lasts up to 3000 hours.

Lamp replacement warning signs

Watch for the following lamp warning signs that mean the the Epson ELPLP39 lamp is approaching end of life:

Epson-PowerLite-Pro-Cinema-1080-projector-Epson-ELPLP39-lamp

  • an image that deteriorates and becomes quite dark.
  • a red flashing light on the projector that blinks every few seconds — this is the lamp warning light.
  • a message: “Replace the lamp” flashes on the screen when you start using the projector.

Replace the Epson ELPLP39 immediately when you see any of these signs.



Buying the correct lamp

Avoid buying a generic replacement lamp for your Epson PowerLite Pro Cinema 1080 UB projector. Although generic lamps are sold at discount prices and claim to be compatible, they actually can damage your projector and cost more in the end.

Look for the seal of approval when you purchase your Epson ELPLP39 lamp. This guarantees the Epson ELPLP39 lamp has been created by an OEM manufacturer offering technical support and a refund should there be any problems.

Six reason to buy authentic and avoid generics:

Learn how to spot the copycat fake lamps with 7 Ways to Spot a Counterfeit Lamp.

Installing the Epson ELPLP39 lamp

Get ready before installing the new Epson ELPLP39 lamp with these preparation steps:

  • press the power button and wait for the light to stop flashing.
  • turn off the power switch at the back on the projector
  • unplug any power cords.
  • let the Epson PowerLite Pro Cinema 1080 UB projector cool for one full hour since it operates under very high temperatures. You don’t want to burn yourself!

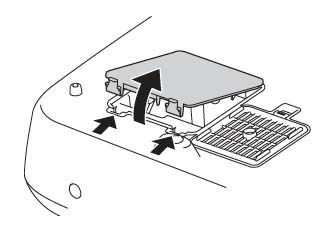

Epson-PowerLite-Pro-Cinema-1080-UB-remove-cover-Epson-ELPLP39-lamp

Press the latches holding the Epson PowerLite Pro Cinema 1080 UB lamp cover in place. Gently lift off the cover and place it to one side.





Epson-PowerLite-Pro-Cinema-1080-UB-lamp-screws-removed-Epson-ELPLP39-lamp







Using the screw driver provided, loosen the two screws keeping the Epson ELPLP39 lamp in place enough so the lamp can lift out.





B-Epson-ELPLP39-lamp-removed



Grab the handle of the Epson ELPLP39 lamp and pull it straight up. Pulling too quickly can cause the bulb to shatter. Learn what to do should the bulb shatter.

NOTE: Don’t throw the Epson ELPLP39 into regular garbage! This lamp contains mercury and should not be properly recycled your used lamps! Your authorized manufacturer will recycle the lamp for you at no extra cost. (Another reason to go with authentic lamps!)





Epson-PowerLite-Pro-Cinema-1080-UB-install-Epson-ELPLP39-lamp



Line up the new Epson ELPLP39 lamp and slide it into Epson PowerLite Pro Cinema 1080 UB. Avoid touching the actual glass bulb since the oil on your finger can cause black spots on the lamp when it heats up.

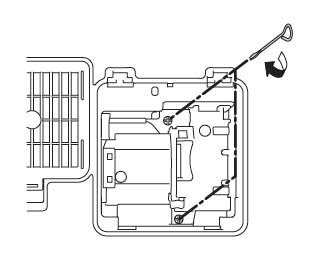

Epson-PowerLite-Pro-Cinema-1080-UB-tighten-screws-Epson-ELPLP39-lamp





Once in place, tighten to screws on either side of the Epson ELPLP39 lamp.

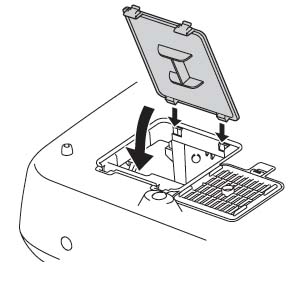

Epson-PowerLite-Pro-Cinema-1080-UB-reinstall-lamp-cover-Epson-ELPLP39-lamp



Replace the Epson PowerLite Pro Cinema 1080 UB lamp cover making sure it’s clicked into place. Otherwise, the projector will not turn on. You are now ready to reset the Lamp Usage Timer.



Resetting the Lamp Usage Timer

It’s important to reset the Lamp Usage Timer so the Epson PowerLite Pro Cinema 1080 UB projector will know when it’s time for a new Epson ELPLP39 lamp.

  • Press the MENU button on the projector or remote control.
  • Navigate to the RESET menu. Select Reset Lamp Hours option. Press SELECT.
  • A confirmations screen will pop up on the screen. Highlight YES and the SELECT to reset the hour.
  • Press the MENU button to exit.
    NOTE: The lamp usage times shows 0H until you’ve used the lamp for at least 10 hours.

Resetting the timer before installing a new Epson ELPLP39 can cause serious damage to your projector.

Get more life from your Epson ELPLP39 lamp

Get more hours from your Epson ELPLP39 lamp by following these maintenance tips:

  • Keep your air filters clean to avoid overheating the projector.
  • Turn off the Epson PowerLite Pro Cinema 1080 UB  projector and let it stand unused for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
  • Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.
  • Learn more with Top tips for extending DLP projector lamp life.
