Easy instructions for replacing the Epson EMP-811P lamp

Epson_EMP811P_projector_Epson_ELPLP15_lampFor a quick and easy replacement of the Epson EMP-811P projector  follow this step-by-step guide.

Lamp Life & Warning Signs

The Epson ELPLP15 has an expected life of 1500 hours. Keep an extra lamp on hand since lamp life will vary. Heavy use of the Epson EMP-811P projector will reduce the expected hours.

Watch for the warning signs:

Epson_EMP811P_warning_light_Epson_ELPLP15_lamp

  • The lamp indicator flashes orange/red.
  • The message “Lamp Replace” appears on the screen for 30 seconds when the projection starts.
  • The user’s logo disappears on screen and the lamp replacement message appears instead.
  • The images gets darker or starts to deteriorate
  • Have an extra lamp on hand since some lamps may stop before 1500 hours.

Go with authentic

Buyer Beware of generic lamps bought over the Internet. Before purchasing your Epson ELPLP15 lamp look for the OEM seal of approval.

This seal guarantees that the lamp you are about to buy has been been manufactured to meet the specifications of the Epson EMP-811P projector and will keep it working under optimum conditions.

Generic lamps, advertised as “compatible” are created with toxic, carcinogenic materials and despite their bargain prices, actually cost more in the long run because they have a shorter life. Generics can also can damage the sensitive and expensive mechanisms in your Epson EMP-811P projector projector.

Avoid having your warranty become void and other hassles by only buying authentic Epson ELPLP15 lamps. Don’t be fooled — learn how to otect yourself from counterfeit manufacturers.

How to install the new Epson ELPLP15 lamp

Before installing the lamp get the Epson EMP811P projector ready:

  • Turn off the projector power.
  • Give two-minutes for a cool-down period and then disconnect the power cord.
  • Wait at least 30 minutes to one hour for the Epson EMP-811P projector to cool internally before opening it up. It should be cool to the touch.
  • NOTE: Do not operate the projectors while the lamp is removed as this may result in malfunctions, fire hazard and other accidents.

To install:



Epson_EMP-811P_Epson_ELPLP15_remove-cover-Epson_ELPLP15_lamp
Using the screwdriver provided, place it into the slot on the cover and lift up the Epson EMP-811P lamp cover. Slide the lamp cover tforward and remove it from the Epson EMP-811P projector.







Epson_EMP_811P_remove_ELPLP15_remove_screws_Epson_ELPLP15

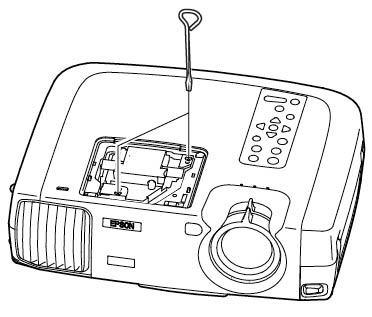

Using the same screwdriver, loosen the screws holding the Epson ELPLP15 lamp in place.













Epson_EMP_811P_remove_ELPLP15_lamp



Grabbing the two indents on the sides of the Epson ELPLP15 lamp, pull straight up. Take care not knock the actual bulb as it may break. Learn what to do should the bulb shatter.

NOTE: The Epson ELPLP15 lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamps! Your authentic manufacturer will recycle the lamp for you at no extra cost,







Epson_EMP_811P_tighten_screws_Epson_ELPLP15_lamp



Hold the lamp so it faces the correct way and insert the Epson ELPLP15 lamp until it clicks into place. Tighten the screws. Be sure not to touch the actual glass bulb as the oil from your fingers will cause a black spot to appear when the lamp heats up.









Epson_EMP_811P_replace_lamp_cover_ELPLP15

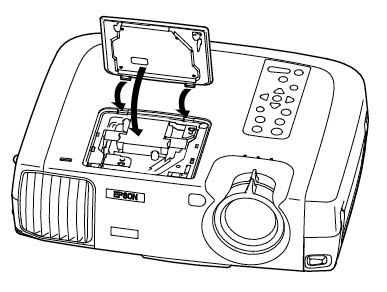

Insert the cover tabs into the Epson EMP-811P projector. Press the other side of the cover until it clicks into place. You are ready to reset the lamp timer.





Resetting the Epson EMP-600P lamp timer

The lamp timer will need to be reset after replacing the Epson ELPLP15.  Only reset the Epson EMP-811P lamp timer when a new Epson ELPLP15 lamp has been installed, otherwise the projector will NOT know when it’s time to replace the lamp. You run the risk of damaging your projector.

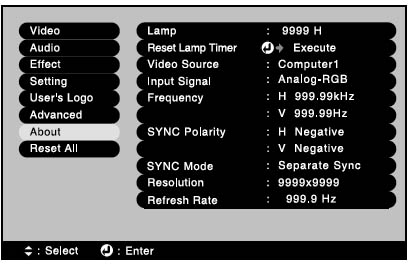

Epson_EMP811P_reset_lamp_timer_menu_Epson_ELPLP15_lamp

  • Press the MENU button on either projector’s control panel or on the remote control.
  • The MAIN MENU will be shown.
  • Using the arrow keys scroll to Reset Lamp Timer from the ABOUT menu.
  • Press the ENTER key.

Epson_EMP-811P_reset_lamp_timer_ELPLP15

  • A second prompt screen will be displayed.
  • Select YES to EXECUTE.
  • Press the ENTER button.
  • The lamp hours will be rest to zero.





Extend the life of the Epson ELPLP15 lamp:

Extend the life of the newly installed Epson ELPLP15 with the following tips:

  • Make sure there is enough airflow around the pson EMP-811Pprojector particularly if it’s been permanently mounted.
  • Keep your air filters clean to avoid overheating the projector.
  • Set the Brightness Mode to low or Econo Mode to extend lamp life.
  • Turn off the Epson EMP-811P projector and let it stand for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
  • Learn more with Top tips for extending DLP projector lamp life.
