D.I.Y. guide for replacing the Epson PowerLite 820P projector lamp

Epson_PowerLite_820P_Epson_ELPLP15_lampWondering when to replace the lamp in your Epson Powerlite 820P projector lamp

Follow this quick-step guide to an easy installation of an Epson PowerLite 820P projector lamp.

Know when to replace

There are approximately 1500 hours in the typical Epson PowerLite 820P projector lamp before it reaches end of life. There will be some very obvious warning signs when the lamp needs to replaced in the Epson Powerlite 820P projector. Watch for the telltale warnings signs.

Warning signs

  • Image begins to dim or actually deteriorate. Colours appear distorted.
  • “Replace the Lamp” warning message appears on screen
  • Lamp light lights red or starts flashing red
  • Check the amount of lamp life left from the About menu found on the Main Menu.

Authentic vs. generic

Look for the seal of approval when you are buying your lamp and avoid generic lamps. While generic have a lower pricetag, there are plenty of downsides to these lamps:

Protect your health, the health of your Epson Powerlite 820P projector and buy authentic. Don’t be fooled by the generic manufacturers: Learn the 7 Ways to Spot a Counterfeit Lamp.

Installing the Epson ELPLP15 lamp

Before oinstalling the new Epson ELPLP15 lamp, do these following steps:

  • Turn off the projector and wait until the power lights stops flashing.
  • Unplug the power cord so the projector can’t be accidentally turned of while the lamp is being replaced.
  • Wait for at least one hour for the Epson PowerLite 820P to cool down. It should be cool to the touch. This is crucial. These projectors operate under high heat and you can get burned very badly if the projector is still hot.



Take the screwdrivEpson_PowerLite_820P_remove_lamp_cover_Epson_ELPLP15_lamper that came with the Epson PowerLite 820P and use it to pop open the lamp cover. Put the lamp cover to one side.

Epson_PowerLite_820P_loosen_lamp_screws_Epson_ELPLP15_lamp

Once the lid is removed, use the same screwdriver to loosen the screws holding the Epson ELPLP15 in place. NOTE: The screws will not come all the way out.

Epson_PowerLite_820P_remove_Epson_ELPLP15_lamp

Grab the top ridges along the Epson ELPLP15 lamp and gently pull up. Using too much force can break the bulb. Learn how to clean up after a bulb breaks.

Put the old lamp aside for proper recycling. These lamps can’t be thrown into the garbage as they contain mercury. Contact your OEM manufacturer for recycling instructions.



Epson_PowerLite_820P_remove_lamp_cover_Epson_ELPLP15_lampHold the lamp so it faces the correct way and insert the Epson ELPLP15 lamp until it clicks into place. Tighten the screws. Line up the hinges on the cover and snap back into place.

You are now ready to reset the lamp timer.

Resetting the Epson PowerLite 811P lamp timer

After replacing the Epson ELPLP15 lamp you’ll need to reset the lamp timer in order for the Epson PowerLite 820P to properly track the lamp life. Only reset the Epson PowerLite 820P lamp timer when a new Epson ELPLP15 lamp has been installed or you run the risk of the lamp being used beyond its recommended lamp life and damaging your projector.

To reset the lamp:

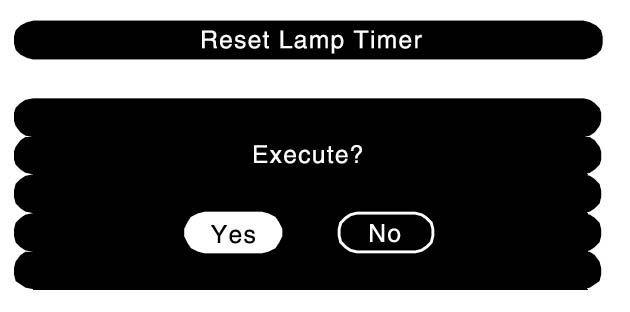

Epson_PowerLite_820P_reset_lamp_timer_Epson_ELPLP15

  • Press the MENU button on either projector’s control panel or on the remote control to display the MAIN MENU.
  • Scroll down to the ABOUT menu. Press the ENTER.
  • Scroll down to the Reset Lamp Timer option.
  • The reset dialogue box will appear asking you to Execute? Press Yes.
  • The lamp hours will be reset to zero.
  • No lamp hours will appear until you have used the Epson ELPLP15 for at least 10 hours.

Tips for longer lamp life:

Extend the life of the newly installed Epson ELPLP15 with the following tips:

  • Keep your air filters clean to avoid overheating the projector.
  • Turn off the Epson PowerLite 820P projector and let it stand for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
  • Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.
  • Learn more with Top tips for extending DLP projector lamp life.
