Installing a new Sharp XG-P20XD projector lamp

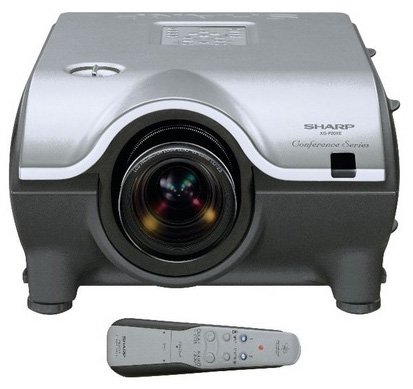

Sharp_XG-P20XD_projector_Sharp_BQC-XGP20X_projector_lamp_replacementOur user guide shows you how to install a new Sharp XG-P20XD projector lamp in three easy steps.

Step 1: Buying the right projector lamp

The Internet has been flooded with generic projector lamps stating they are “compatible” with Sharp XG-P20XD projector. However, these projector lamps don’t offer much savings and come with many problems that can affect the life of your projector. Consider the source before purchasing a Sharp XG-P20XD projector lamp. How to recognize an authentic projector lamp.

Six reasons to avoid generic lamps:

Find this lamp sold on Amazon by these authorized dealers:

Step 2: Know the warning signs

Depending on the usage and maintenance, the Sharp BQC-XGP20X//1  projector lamp in the Sharp XG-P20XD projector operates for approximately 1,000 hours. At 900 hours, the projector LAMP REPLACEMENT indicator lights up red. The LAMP icon flashes yellow in the lower-left corner of the picture. If you notice a significant deterioration of the picture and color quality, you can replace it the Sharp BQC-XGP20X//1 projector lamp.

You can see the hours remaining for lamp usage by checking the On-screen Display option found on the Main Menu.

Sharp_XG-P20XD_projector_Sharp_BQC-XGP20X_RLMPF0072CEZZ_projector_lamp_warning_lights Replace the Sharp BQC-XGP20X//1 projector lamp immediately at 900 hours and don’t wait! Should the projector lamp explode, learn what to do.



Installing the Sharp BQC-XGP20X//1 projector lamp

Before replacing the Sharp BQC-XGP20X//1  projector lamp follow these important safety tips:

  • Switch off the power to the Sharp XG-P20XD projector by pressing the Power button.
  • Disconnect the power cord.
  • Allow the projector to cool down for at least one hour. If should be cool to the touch. The Sharp XG-P20XD projector uses high temperatures and you can burn yourself badly if you don’t allow the projector to cool down.

Sharp_XG-P20XD_projector_Sharp_BQC-XGP20X_RLMPF0072CEZZ_projector_lamp_cover_removalTurn over the Sharp XG-P20XD projector onto a soft service and loosen the user service screw that holds the projector lamp cover on place. Slide the cover off away from the projector and place it to one side.

Sharp_XG-P20XD_projector_Sharp_BQC-XGP20X_RLMPF0072CEZZ_projector_lamp_screws

Remove the screws holding the Sharp BQC-XGP20X//1 projector lamp in place. Grab the wire handle and gently pull the Sharp BQC-XGP20X//1 projector lamp out.

Sharp_XG-P20XD_projector_Sharp_BQC-XGP20X_RLMPF0072CEZZ_projector_lamp_insert_new

Take the new Sharp BQC-XGP20X//1 projector lamp and press it firmly into the lamp cage compartment. Be careful not to touch the actual bulb as the oil from your fingers left on the lamp will burn black holes onto the lamp that appear on screen.

Note: The used Sharp BQC-XGP20X//1 projector lamp contains mercury and should be properly recycled. Don’t throw it into regular garbage.Sharp_XG-P20XD_projector_Sharp_BQC-XGP20X_RLMPF0072CEZZ_projector_lamp_replace_cover Fasten the securing screws. Slide the lamp cage cover back on in the direction of the projector. Then tighten the user service screw.

Reset the lamp timer and clean the air filters.

To reset the Sharp XG-P20XD projector lamp timer:

While pressing DOWN arrow, RIGHT arrow and ENTER on the projector, press POWER ON on the projector.

“LAMP 0000H” is displayed, indicating that the lamp timer is reset. Sharp_XG-P20_projector_Sharp_BQC-XGP20X_RLMPF0072CEZZ_projector_lamp_reset_timer_message

To clean the Sharp XG-P20XD air filter

Sharp_XG-P20XD_projector_Sharp_BQC-XGP20X_RLMPF0072CEZZ_projector_lamp_remove_air_dirty_filterSharp_XG-P20XD_projector_Sharp_BQC-XGP20X_RLMPF0072CEZZ_projector_lamp_change_dirty_air_filter

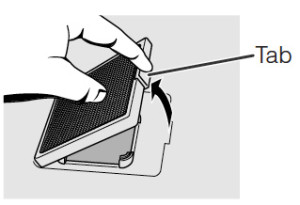

Press the air filter tab and lift open the filter cover away from the projector.

  • Grasp the air filter between your fingers and lift it off the filter cover.
  • Vacuum the dust off the air filter – DO NOT WASH.
  • Put the air filter back on the filter frame.
  • Insert the tab on the end of the filter cover into the filter cover opening and press the filter cover into position.



Extend the life of the Sharp BQC-XGP20X//1 projector lamp:

  • Chose the “STD” mode to to dim the projector lamp and lower power consumption. This will extend the lamp life by up to 130%.
  • Keep your air filters clean to avoid overheating the projector.
  • Every 24 hours, turn off the projector and let it stand for 1 hour
  • Make sure there is enough airflow around the Sharp XG-P20XD projector particularly if it’s been permanently mounted.
  • Learn more with Top tips for extending DLP projector lamp life.

Go for a green alternative!

Sharp_BQC-XGP20X_1_projector_lamp

If you are looking for an even more eco-friendly option for your Sharp XG-P20XD projector why no consider replacing only the projector bulb and not the entire projector lamp? You recycle the lamp cage and reduce waste. Our step-by-step video shows you how.
