Exchange the Boxlight CP-13T projector lamp

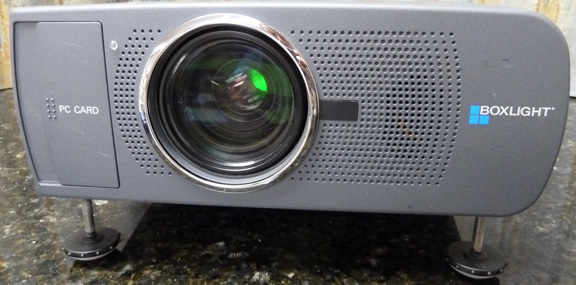

Boxlight_CP-13T_projector_Boxlight_CP13T-930_projector_lampWhen your Boxlight CP-13T projector lamp reaches end of life, this guide can help you make the change.

The importance of OEM projector lamps

Your Boxlight CP-13t projector is a sophisticated machine with high-end optics. Generic lamps can be tempting to purchase a generic lamp due to their low prices but they can damage the  optics in your projectors. These copycat lamps have not been properly calibrated and have been made with carcinogenic toxic substitutes. As a result generic lamps have shorter lives and prone to explosions. Protect your investment and purchase an authentic Boxlight CP-13T projector lamp.

 Warning messages

The Boxlight CP-13T uses the Boxlight CP13T-930 projector lamp. When the projector lamp is approaching end of life the LAMP REPLACEMENT indicator lights red.  The image may also become darker or the image color becomes unnatural. Change the projector lamp immediately when this happens.

Find this lamp sold on Amazon by these authorized dealers:

Replacing the Boxlight CP13T-930 projector lamp

Before replacing the Boxlight CP13T-930 projector lamp follow these safety tips:

  • Disconnect the power cord on the Boxlight CP-13t projector.
  • Reduce the risk of severe burns by allowing the Boxlight CP-13t projector to cool for at least one hour. These projectors operate using high temperatures and you run the risk of severe burns if you don’t allow it to cool down.

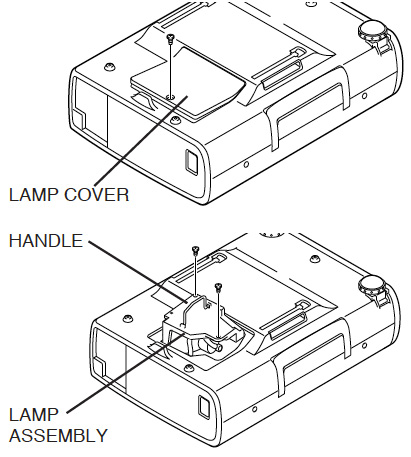

Boxlight_CP-13T_projector_change_Boxlight_CP13T-930_projector_lamp



  • Turn the Boxlight CP-13t projector on its side. Loosen the screw holding the lamp cover in place.
  • Remove the two screws holding the Boxlight CP13T-930 projector lamp in place.
  • Using the wire handle on the Boxlight CP13T-930 projector lamp and gently remove the lamp. Pulling too quickly can cause the bulb to shatter. Learn what to do should the bulb shatter.
  • NOTE: Be sure to recycle the Boxlight CP13T-930 projector lamp as contains mercury and should not be thrown into regular garbage. Recycle it!
  • Insert the new CP13T-930 and avoid touching the actual bulb as this can result in black spots from the oil on your hands.
  • Tighten the two screws on the Boxlight CP13T-930.
  • Place the cover back onto the Boxlight CP-13t projector and tighten the lamps screw. You must now reset the lamp timer.

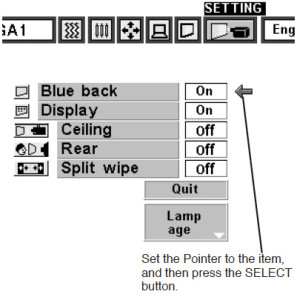

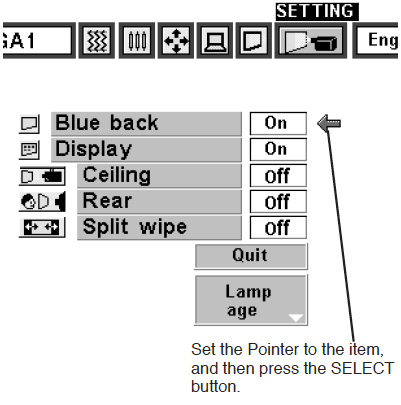

Boxlight_CP-13T_projector_Boxlight_CP13T-930_reset_projector_lamp_counterResetting the Boxlight CP-13T lamp counter

Once the Boxlight CP13T-930 projector lamp has been replaced, you will need to reset the lamp counter so the Boxlight CP-13t projector can accurately track the number of lamp hours remaining:

  • Turn the projector on.
  • Press the MENU button. The ON-SCREEN MENU will appear.
  • Press the POINT LEFT/RIGHT buttons to select SETTING.
  • Press the SELECT button. The SETTING MENU appears.
  • Press the POINT DOWN button and a red-arrow icon will appear.
  • Move the arrow to LAMP AGE. Press the SELECT button.
  • The message “Lamp replace monitor Reset?” is displayed.
  • Select YES to reset the Timer.



Extend the life of the Boxlight CP13T-930 projector lamp by reading Top tips for extending DLP projector lamp life

Interested in a green alternative?

Boxlight_CP-11t_projector_Boxlight_CP13T-930_Video_InstructionsThe Boxlight CP-13t projector has the option of also just replacing the actual bulb to re-use the plastic cage. This reduces waste and is a great way to green your projector. Watch our training video to learn more.
