Install a new Optoma PRO250X projector lamp

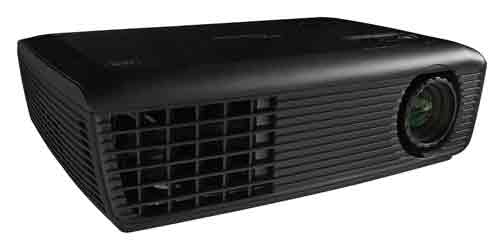

Optoma_PRO250X_projector_Optoma_BL-FU185A_replacement_projector_lampHere is a step-by-step guide to help you replace the Optoma PRO350W projector lamp.

Invest in authentic replacement projector lamps

When buying on the Internet, make sure you are buying an OEM Optoma PRO250X projector lamp and look for the seal of approval. Generic lamps have a shorter lamp life than original lamps and are created with toxic materials. When you buy copy-cat lamps you get no guarantee or refunds and they can damage the sensitive electronics in your projectors. Keep your Optoma PRO250X projector working at optimum levels by investing in an authentic projector lamp. Learn How to spot a counterfeit.

Find this lamp sold on Amazon by these authorized dealers:

End of life warnings

Optoma_PRO250X_Optoma_BL-FU185A_SP.8EH01GC01_replacement_warning_projector_lampWhen the Optoma BL-FU185A projector lamp is reaching end of life, you will notice the Lamp-LED light flashing red on the Optoma PRO250X projector. A lamp warning message also appears on screen.

If you hear a loud pop when turning on the projector, the Optoma BL-FU185A  projector lamp has broken. Learn what to do if the projector lamp has exploded inside the projector.

Be sure to have your back-up replacement Optoma BL-FU185A projector lamp ready so you can replace it immediately when needed.



4-steps to installing the Optoma BL-FU185A projector lamp

Follow these important safety tips before replacing the Optoma BL-FU185A projector lamp:

  • Switch off the power to the Optoma PRO250X multimedia projector by pressing the Power/Standby button.
  • Disconnect the power cord.
  • Allow the Optoma PRO250X projector to cool down for at least 30 minutes. These projectors run using high temperatures and you can burn yourself badly if you don’t allow the projector to cool down.

Optoma_PRO250X _Optoma_BL-FU185A_SP_projector_lamp_warningSteps to remove the old projector lamp

1. Use a screwdriver to undo the two screws holding the projector lamp cover in place. The screws on the lamp cover and the lamp cannot be removed.

2. Remove the lid and place to one side. Don’t lose the lid as the Optoma PRO250X projector will not turn back on until the lamp cover has been properly installed.

3. Remove the two screws holding the Optoma BL-FU185A projector lamp in place.

Note: The used Optoma BL-FU185A projector lamp contains mercury and should be properly recycled. Don’t throw it into regular garbage.

4. Lift up the wire handle on the Optoma BL-FU185A  projector lamp and slowly remove it from the projector. Be careful not to bang the lamp against the projector as this may case the bulb to break. Learn how to clean up a broken lamp.

Steps to install the new projector lamp:

1. Remove the new Optoma BL-FU185A  projector lamp from its packaging. Taking care not to touch the actual bulb, lift up the handle on the new lamp and insert it gently into the Optoma PRO250X projector.

2. Tighten the two screws on the projector lamp.

3. Replace the lamp cover and tighten its two screws.

4. Reset the lamp replacement timer

Reset the Projector Lamp Replacement Timer

Optoma_PRO250X _Optoma_BL-FU185A_SP_projector_lampThe Optoma PRO250X projector has an automatic projector lamp timer that tracks the numbers of hours left in the lamp. If you don’t reset the lamp replacement timer you run the risk of the lamp being used beyond its recommended life and possibly exploding in the projector.

To reset the Projector Lamp Replacement Timer:

  • Turn on the projector.
  • Using the remote press MENU
  • Select OPTIONS
  • Select LAMP SETTINGS
  • Select LAMP RESET
  • Select YES.
  • Press MENU to exit.

Tips for extending Optoma BL-FU185A projector lamp life:

  • Chose the “STD” mode to to dim the projector lamp and lower power consumption. This will extend the lamp life by up to 130%.
  • Keep your air filters clean to avoid overheating the projector.
  • Every 24 hours, turn off the projector and let it stand for 1 hour
  • Make sure there is enough airflow around the Optoma PRO250X projector particularly if it’s been permanently mounted.
  • Learn more with Top tips for extending DLP projector lamp life.

Green your Optoma PRO350W projector

Optoma-PRO250X _replacement_bulb_training_video



The Optoma PRO250X projector has the option of re-using the existing lamp cage and replacing only the actual bulb. You recycle and reduce waste this way. Watch our Optoma BL-FU185A training video to learn more.

Tagged with: , ,
2 comments on “Install a new Optoma PRO250X projector lamp
Join the discussion on Facebook! All your questions, answered! The Screen & Projector Group
  1. avatar Jim Delricco says:

    Projector optima 250 pro x worked find until I replaced the lamp because it told me lamp life expired. I plus in and nothing. Just the red light on top. No fan no lamp nothing. Remote don’t work. It’s dead.I press power it goes green then back to red.

    • avatar Shelagh McNally says:

      Hi Jim,
      It’s usually one of two things when this happens:
      1. Have you reset the lamp timer to zero. This is the final step of installing a new lamp and a lot of people forget to do this. If you haven’t reset the lamp timer then the projector thinks it’s still using the bad lamp that has reach end of life and the projector will keep shutting down to self protect.
      2. The lamp is not an OEM lamp and hasn’t been properly calibrated so the projector can’t read it. If you bought the lamp at a very low price then chances are it’s counterfeit. Try re-installing the lamp once more, checking to make sure all the connections are good and that the lamp cover is properly screwed on. If this doesn’t work, then chances are it’s the actual lamp. Ask for a refund and buy direct from the manufacturer. Hope this helps. Good luck.
      Regards,
      Shelagh
