Replacement Optoma THEME-S H57 projector lamp

This guide shows you how to install replacement Optoma THEME-S H57 projector lamp.

Invest in an authentic projector lamp

In order for your Optoma THEME-S H57 to work properly you need to install an Optoma BL-FU250A created by an OEM manufacturer. Avoid installing a counterfeit Optoma THEME-S H57 projector lamp for the following reasons:

• generic lamps have a much shorter life so are actually more expensive in the long run
• Krypton-85 and other toxic chemicals are used to create counterfeit lamps
• compatible lamps are more prone to overheat and explode
• can’t properly calibrated to work with the sensitive electronics in projectors
• no protective covering installed so your eyesight is at risk
• copycat manufacturers offer no guarantee or refunds
• the warranty on your Optoma THEME-S H57 projector will become void

Find this lamp on Amazon from these authorized dealers:

• Optoma BL-FU250A, UHP, 250W Projector Lamp
• Original Osram PVIP BL-FU250A Lamp & Housing for Optoma Projectors – 180 Day Warranty

Installing the Optoma BL-FU250A projector lamp

Follow these important safety tips before changing the replacement projector lamp:

• Switch off the power to the projector by pressing the Power/Standby button.
• Allow the projector to cool down for at least 30 minutes. It should be cool to the touch. These projectors run using high temperatures and you can burn yourself badly if you don’t allow the projector to cool down.
• Disconnect the power cord.

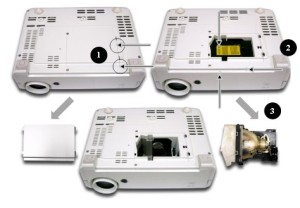

Step 1: Remove the projector lamp cover

Use a screwdriver to loosen the two screws holding the projector lamp cover in place. Make sure you have followed the safety tips before taking the cover off. The THEME-S H57 projector should be cool to the touch. Don’t lose the screws to the cover as the THEME-S H57 projector will not turn back on until the lamp cover has been properly installed.

Step 2: Remove the projector lamp

Remove the two screws holding the Optoma BL-FU250A in place.

• NOTE: The Optoma BL-FU250A lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamps!
• Lift the wire handle on the Optoma BL-FU250A projector lamp and gently remove it from the projector. Be careful not to hit the lamp or you can cause it to break.

Step 3: Installing the new lamp

• Take the new Optoma BL-FU250A replacement projector lamp out of its packaging and lift the handle on the lamp. Gently place it into the projector making sure not to touch the actual bulb. Oil from fingerprint marks can burn black spots onto the lamp when it heats up.
• Tighten the screws on the lamp.
• Close the lid. Tighten the cover screws.

Reset the Optoma H57 projector lamp timer

Your Optoma THEME-S H57 comes equipped with an automatic lamp timer that tracks the number of hours left for the Optoma BL-FU250A projector lamp. Each time you change the lamp you need to reset the lamp timer. Failure to do so may cause the projector to use the lamp over the recommended period of time resulting in the lamp exploding.

• Press the Menu button to open the On-Screen-Data (OSD) menu.
• Press the right/left arrow button to move to the Management menu.
• Press the right/left arrow button button to move down to Lamp setting.
• Press the right arrow or Enter button to select Ok and reset the time.
• To exit Menu button.

Learn the TOP Tips for extending the projector lamp life in your Optoma THEME-S H57 projector.
