Replacing the BenQ MX763 projector lamp

Change the BenQ MX763 projector lamp following this how-to guide.

Watch for warning signs

When it’s time to replace the BenQ MX763 projector lamp you’ll see a series warnings appear on screen. Be sure to buy an authentic projector lamp!

First warning: The BenQ 5J.J4N05.001 projector lamp has been in operation equivalent to 2500 hours. Install a new lamp for optimal performance. If the BenQ MP763 projector is running in Econo Mode, you have up to 2950 hours before changing the lamp.

Second Warning: The BenQ 5J.J4N05.001 projector lamp has been in operation equivalent to 2950 hours. You should replace the lamp immediately.

Third Warning: The BenQ 5J.J4N05.001 projector lamp lamp is approaching it’s end of life and has been in operation equivalent to 3000 hours. Change the BenQ 5J.J0405.001 lamp immediately to avoid having the projector shut down.

Final Warning: The BenQ MX763 projector has shut down and the BenQ 5J.J4N05.001 projector lamp MUST be replaced before the projector will operate normally.

Buy this lamp on Amazon sold by these authorized dealers:

• BenQ 5J.J4N05.001 Lamp for MX763 and MX764 Projectors
• BenQ 5J.J4N05.001 Replacement Lamp 300 W Projector Lamp – 2000 Hour Normal
• BenQ 5J.J4N05.001 Replacement Lamp 300 W Projector Lamp – 2000 Hour Normal – NEW – Generic – 5J.J4N05.001
• BenQ 5J.J4N05.001 Projector Housing with Genuine Original Philips UHP Bulb
• BenQ MX764 Projector Housing w/ High Quality Genuine Original Philips UHP Bulb

Replacing the BenQ MX763 projector lamp

Follow these safety instructions before changing the lamp:

• Reduce the risk of electrical shock by disconnecting the power cord on the BenQ MX763 projector.
• Reduce the risk of severe burns by allowing the projector to cool for at least 45 minutes. The projector should be cool to the touch.

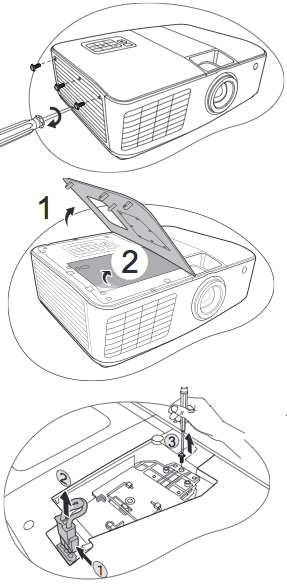

• The projector lamp cover is found on the side of the BenQ MX763 projector.
• Loosen the three screws holding the projector lamp cover in place
• Lift up the projector lamp cover.

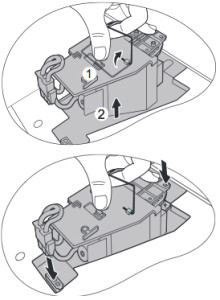

• Disconnect the lamp connector by pushing it against the projector while pulling it up.
• Loosen the screw that secures the lamp.

• Lift the handle so that it stands up. Use it to slowly pull the BenQ 5J.J4N05.001 projector lamp out of the projector. Pulling out too quickly may cause the bulb to break. If this happens go to: What to do when your projector lamp explodes.

NOTE: The BenQ 5J.J4N05.001 projector lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamps!

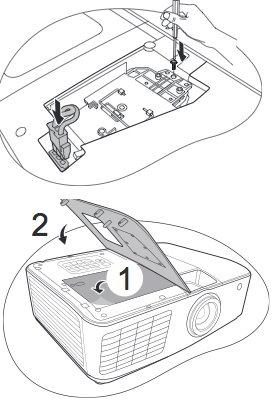

Insert the new BenQ CS.5JJ1K.001 projector lamp. Align the two holes on the lamp with the locators on the projector. Reconnect the projector lamp connectors.

• Tighten the screw that secures the lamp. Loose screw may cause a bad connection,
  which could result in malfunction. Do not over tighten the screw.

• Replace the lamp cover on the BenQ MX763 projector.

• Reset the lamp timer.

Resetting the lamp timer

Do not reset the BenQ MP763 projector lamp timer if the lamp has not been replaced as this could cause damage. Don’t start the if the lamp cover has not been replaced. To reset the projector lamp timer:

• Plug the BenQ MX763 projector and get it started.
• Open up the menu and scroll over to SYSTEM/SETUP: Advanced. Press ENTER.
• Press MODE/ENTER to display the Lamp Settings page
• Highlight Reset lamp timer to display a warning asking it you want to reset the lamp timer.
• Select RESET. Press ENTER.
• Lamp time will be reset to zero.

Extend the BenQ MX763 projector lamp

• Keep your air filters clean to avoid overheating the projector.
• Setting Lamp Power to Eco mode. Using Whisper mode reduces system noise and power consumption. It also extends the projector lamp life. To set Econo mode, go into the Advanced Setup > Lamp > Lamp Power menu.
• Learn more with Top tips for extending DLP projector lamp life.
• Buy and install only authentic projector lamps.

Why buy authentic?

There are hundreds of choices out there on the Net so it can be confusing finding the correct projector lamp for your BenQ MX763 projector.  Be sure to buy an authentic BenQ CS.5JJ1K.001 replacement lamp.

Counterfeit “compatible” lamps may appear to be a bargain but in the long run end up costing you more for the following reasons:

• shorter lamp life than original lamps
• toxic materials and carcinogenic parts including Krypton-85
• prone to explosions
• incompatibility causing damage to the sensitive electronics in your projectors
• no guarantee or refunds
• no protective guards installed so your eyesight is at risk!

Save yourself unnecessary headaches — buy a BenQ CS.5JJ1K.001 projector lamp from a recognized dealer.
