Replace the Smartboard SBP-10X projector lamp

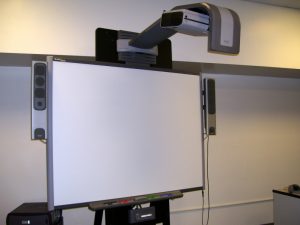

Smartboard SBP-10X projector lamp

This guide shows how to replace the Smartboard SBP-10X projector lamp

When the projected image gets darker or starts to deteriorate then it’s time to replace the Smartboard SBP-10X projector lamp.

Go with authentic

An authentic projector lamp makes all the difference in keeping your Smartboard SBP-10X projector working. If the price is too good to true, then you should avoid the lamp. Bargain basement prices mean problems down the road. Scroll down to see more reasons to avoid counterfeit lamps.

Find these lamp on Amazon sold by these authorized dealers:

When to replace

Smartboard_SBP-10X_Smartboard_ 20-01032-20_ projector_lamp_warning

When the Smartboard SBP-10X projector lamp is reaching end of life you’ll see the warning message appear on screen. Replace the lamps immediately when this message shows up and don’t try to extend the use of the lamp or you may cause the lamp to explode and damage the projector.


Changing the Smartboard projector lamp

Your Smartboard SBP-10X projector uses the SmartBoard 20-01032-20 projector lamp.

Important Safety tips BEFORE replacing the projector lamp:

  1. Close the projector lens door to prevent scratching or touching of the lens.
  2. Press the power button twice on the ECP (extended control panel) or on the remote to put the system in Standby mode.
  3. Turn off the power switch and disconnect the power cord and all connected cables.
  4. This projector operates under high temperature and there is a burn risk so be sure to wait at least one hour minutes for the projector’s housing to completely cool.

Step 1: Remove the projector from the boom

Smartboard_SBP-10X_Smartboard_ 20-01032-20_ projector_lamp_cover
Before you can replace the projector lamp, you must remove the projector from
the boom. You’ll need two people to do this.
Ensure that you remove the projector’s plastic lens cover.
Remove the cable cover and disconnect all cables from the Smartboard projector.

To remove the projector from the mount, hold tSmartboard_SBP-10X_Smartboard_-20-01032-20_-remove_projector_mounthe projector and without applying pressure, remove the screw holding the cable cover in place. Lift the cover off.

If you use a projector padlock, make sure that you remove it from the locking loop.
Smartboard_SBP-10X_Smartboard_ 20-01032-20_ projector_lamp_mountIf you need access to the projector locking
screw, loosen the wingnut and slide the
projector all the way back, away from your interactive whiteboard’s screen, and
then re-tighten the wingnut.
Loosen the wing nut and slide the Smartboard SBP-10X projector away from the interactive whiteboard screen. Then remove the single screw on the bracket.
Smartboard_SBP-10X_Smartboard_ 20-01032-20_ projector_lamp_remove_mountTake care as the projector will be loose once the screw on the mount have been loosened. Have the second person ready to hold the projector.
Using two hands carefully unhook and remove the projector from the projector boom. Lay the Smartboard SBP-10X projector boom flat with the warning lights facing upwards.

Step 2: Remove the old lamp


Smartboard_SBP-10X_Smartboard_20-01032-20_remove_projector_lid-3Pull off the outer lamp cover with the your finger and set it aside.

Loosen the two screws holding the SmartBoard 20-01032-20 projector lamp in place.

Press on the tab and pull up with the handle on the old lamp. Release the tab. NOTE: The SmartBoard 20-01032-20 projector lamp contains mercury and should properly recycled and NEVER thrown into regular garbage

Remove all packaging from the new SmartBoard 20-01032-20 projector lamp. Press the tab, put the new lamp into the lamp slot, and push it all the way down. Release the tab.

Put the outer lamp cover back into its original position. Align the cover and tighten the screws until the outer Smartboard SBP-10X projector lamp cover is secure.

Tighten the two lamp screws on the SmartBoard 20-01032-2

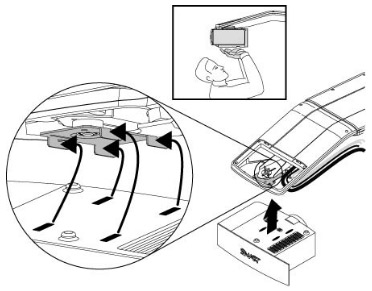

Replace the projector plate assembly on the projector boom

You will need two people to do this.



  1. Using both hands, left the projector and align the hooks on the boom with the slots on the projector. Have someone hold the projector in place.
  2. To place the projector back into the boom, attach the projector plate hinges into the corresponding flange hook on the projector boom.
  3. Secure the projector to the plate with the original screw.
  4. Replace the projector padlock.
  5. Replace the projector cover on the top of the boom. Without applying pressure to the boom, replace and tighten the screw on the cover until it’s secure. Connect all the cables and put the cable cover back on.

Resetting the lamp timer

Your Smartboard SBP-10X has a built in lamp timer that tracks the life of the SmartBoard 20-01032-20 projector lamp. Whenever you change the lamp you need to reset the lamp timer back to zero.

  1. Using the remote control, press the following buttons quickly to access the service menu: Down, Up, Up, Left, Up.
  2. Scroll down to the Lamp Hour Reset field and press OK. Both Standard and Economy setting will be reset to zero.
  3. Press the Menu button on the remote control to make the Smartboard SBP-10X Setting menu appear.
  4. Select the Lamp Hours to confirm that it’s been reset to zero.
  5. Wait five minutes for the projector lamp to warm up.

Learn how to extend the life of your SmartBoard 20-01032-20 projector lamp with Top tips for extending DLP projector lamp life.

6 reasons to avoid generic lamps:
