Replace the Infocus IN5132 projector lamp

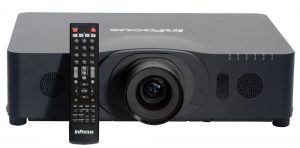

InFocus IN5132 ProjectorReplace the Infocus IN5132 projector lamp by following this guide

Why go with authentic

Buy an authentic Infocus IN5132 projector lamp and avoid the headaches associated with counterfeit lamps. Your InFocus IN5132 projector needs the InFocus SP-LAMP-080 replacement projector lamp.

Top reasons to avoid counterfeit lamps:

Buy from a legitimate source to keep your Infocus IN5132 projector under warranty and working properly.

Install the replacement projector lamp

Follow these important safety steps BEFORE installing the replacement InFocus IN5132 projector lamp:

  • Turn off the InFocus IN5132 projector and unplug the power cord.
  • To avoid getting burned, let the projector fully cool before changing the lamp.
  • Do not operate the projectors while any of the lamps are removed as this may result in malfunctions, fire hazard and other accidents.

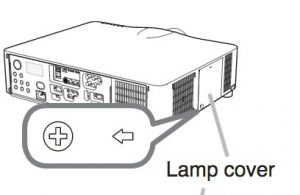

Infocus_IN5132_InFocus-SP-LAMP-080_projector-lamp_cover

  • Loosen the two captive screws on the IN5132 lamp cover.

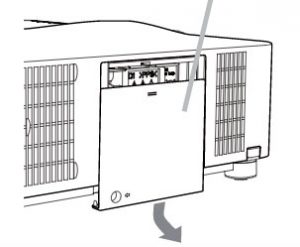

  • Remove the IN5132 lamp cover.

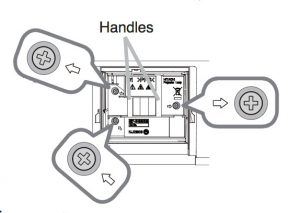

  • Remove the three screws from the IN5132 lamp module.
  • Lift the module handle up. Pull firmly on the module handle to remove the lamp module.
  • NOTE: The InFocus SP-LAMP-080 contains mercury and should not be thrown into regular garbage. Recycle this used lamp!
  • Place the new lamp into the IN5132projector Tighten the two screws on the InFocus SP-LAMP-080 lamp.
  • Replace the IN5132 lamp cover and tighten the screws.

To reset the IN5132 lamp timer:

  • Press MENU
  • Scroll down to ADVANCED menu. Press Enter.
  • Highlight OPTION in the left column if the menu using the arrow keys. Press Enter.
  • Scroll down to select LAMP TIME. Press Enter.
  • A dialog menu will appear. Press Enter to select OK.
  • The lamp hours will be reset to zero.

Tips for longer lamp life

  • Keep your air filters clean to avoid overheating the projector.
  • Turn off the Infocus IN5132 and let it stand for at least one hour ever 24 hours.
  • Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.
  • Top tips for extending DLP projector lamp life
