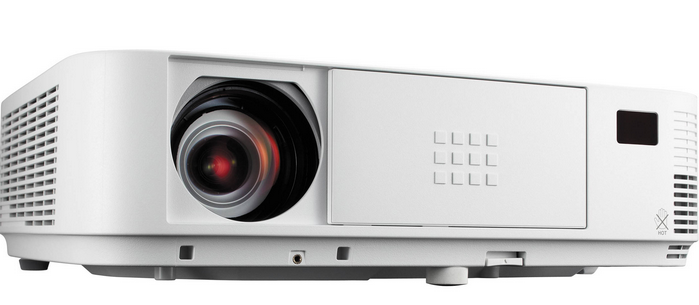

Replace the NEC M282X projector lamp

NEC_M282X_projector_lamp_NEC NP27LPFollow this guide to replace the NEC M282X projector lamp

Note: This manual can also be used for NEC M282 projector.

When it’s time to replace your NEC M282X projector lamp you’ll see the following warning signs:

  • message on screen reads LAMP HAS REACHED THE END OF ITS USABLE LIFE. PLEASE REPLACE THE LAMP AND FILTER.
  • the LAMP indicator begins to blink red
  • color looks off or has deteriorated

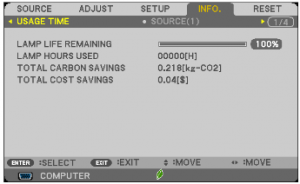

Track the life of the NEC M282X projector lamp from the Usage Time menu.

  • Go to INFO menu
  • Scroll down to USAGE TIME to display the LAMP LIFE REMAINING and LAMP HOURS USED.
  • The progress indicator shows the percentage of remaining bulb life:
  • When the lamp usage reaches 0, the Lamp Life REMAINING starts a count down from 100 hours
  • When the count down reaches 0, the projector will turn off and not turn on.

Changing the NEC M282X projector lamp

The NEC M282X uses the NEC NP27LP projector lamp model.  Follow these important safety instructions before installing the new NEC NP27LP projector lamp.

  • turn off the NEC M282X projector.
  • unplug the projector from its power source.
  • unplug the power cable.
  • wait until the projector is cool to the touch to avoid getting burned.

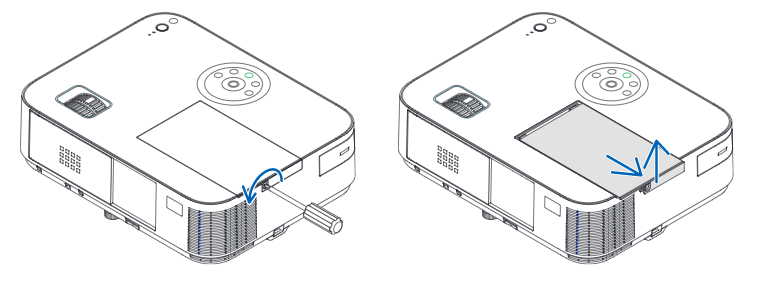

NEC NP27LP_remove_coverLoosen the NEC M282X lamp cover screw.

Slide the projector cover off.

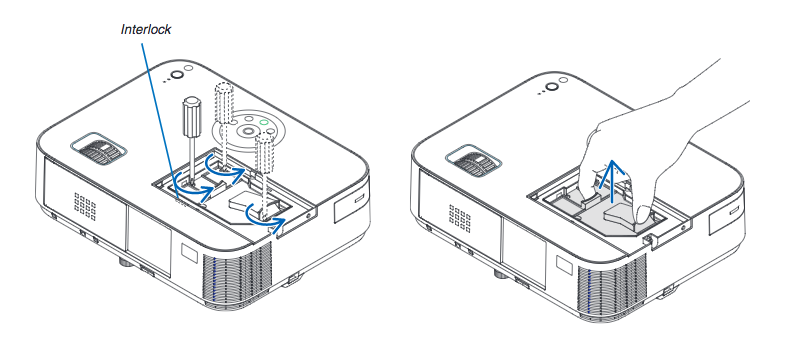

NEC_M282X_projector_lamp_NEC NP27LP_remove

Loosen the two screws holding the NEC NP27LP projector lamp in place.

Remove the projector lamp by holding the indent and pulling up.

NOTE: Your NEC NP27LP projector lamp should be properly recycled and not placed into regular garbage.

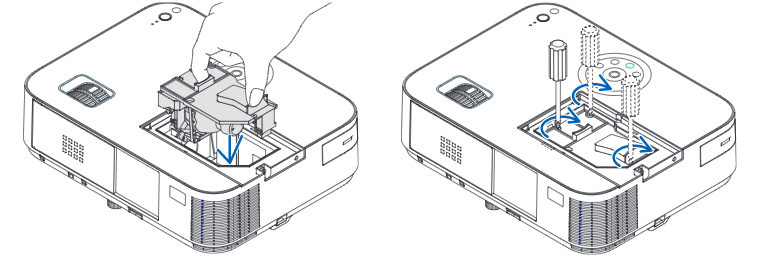

NEC_M282X_projector_lamp_NEC NP27LP_install

Install a new NEC NP27LP projector lamp housing into the NEC M282X projector, gently pressing the projector lamp housing into the socket. . Tighten the screw on the projector lam

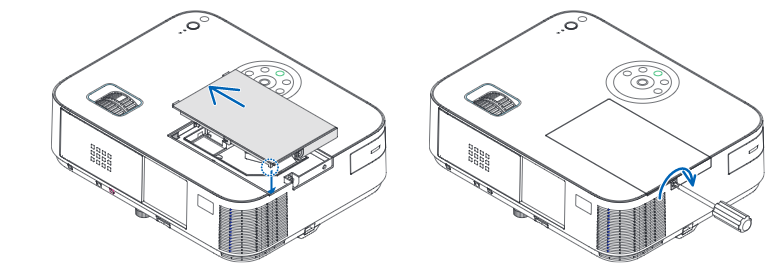

NEC_M282X_projector_lamp_NEC NP27LP_replace_coverRe-attach the NEC M282X lamp cover by sliding the cover until it snaps into place. Tighten the screw on the lamp cover.

Reset the NEC M282X  lamp timer

Once the NEC NP27LP projector lamp has been replaced you will need to reset the lamp timer so the projector can accurately track the number of lamp hours left.

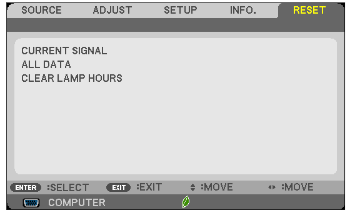

NEC_M282X_projector_lamp_NEC NP27LP_reset_hours



  • Plug in the power cored into the wall outlet.
  • Turn on the projector.
  • From the MENU select RESET.
  • Choose CLEAR LAMP HOURS.
  • A confirmation message appears.
  • Select YES.



Learn more tips to extend the life of the NED M282X projector lamp.
