Replacing the Samsung HLP4663WX/XAA TV lamp

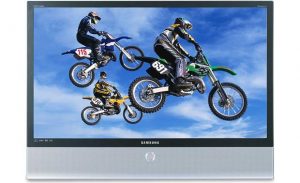

Samsung_HLP4663WX XAA_TVFollow these instructions when it’s time to replace the Samsung HLP4663WX/XAA TV lamp

When the Samsung HLP4663WX/XAA TV lamp is reaching end of life you may notice all three LEDs on the front panel — Timer, Lamp, & Temp — are flashing. Colors may appear flattened and the brightness on the screen may be diminished.

Keep it authentic

The Samsung HLP4663WX/XAA TV lamp uses the Samsung BP96-00608A Replacement TV Lamp. Reduce hassles by always buying authentic. Counterfeits have several chronic problems including:

Replacing the lamp

Before replacing the lamp allow the Samsung HLP4663WX/XAA to cool down for one hour. There is a risk of a serious burn if the TV is not completely cool. Be sure to unplug the TV from the electrical socket.


Step 1: Use a screwdriver to remove the screw holding the TV lamp cover in place.


Step 2: Remove the Lamp cover.


Step 3: Using a screwdriver loosen the screws securing the BP96-00608A in place


Step 4: Separate the Lamp from the engine by holding the handle and pulling it out.

NOTE: The contains mercury. Please recycle this lamp. Don’t throw it into conventional garbage.

Inserting the new lamp

  • Insert the new Samsung BP96-00608A Replacement TV Lamp.
  • Tighten the two screws on the lamp.
  • Replace the lamp cover and tighten the screws. NOTE: Be sure to tighten the lamp cover on the TV after changing the lamp. Note that the TV will not function if the lamp cover is not securely attached. Please tighten the holding screw on the lamp cover after it has been attached to the TV.

If any there is no picture or a very dark picture or if the TV won’t turn on, repeats the steps again to ensure the lamp has been installed properly and the lamp door has been re-installed correctly.

Extend the life of the Samsung BP96-00608A Replacement TV lamp by following these tips.
