Hitachi CP-X4014WN projector

Here’s how to replace the Hitachi CP-X2510 projector lamp

Keep your projector working at its best by installing a genuine Hitachi CP-X2510 projector lamp. Your Hitachi CP-X2510 projector uses the Hitachi DT01021 projector lamp. Only an OEM authentic replacement projector lamp will keep your projector working.

Tracking Hitachi CP-X2510 projector lamp

Keep track of the Hitachi CP-X2510 projector lamp life so you’ll know when to replace the projector lamp. Watch for these signs that indicated the projector lamp is reaching its end of life:

  • The Power and Lamp Indicators will begin blinking.
  • Color tone on the screen may also appear weak or washed out.
  • Picture has poor color quality.

Install the replacement projector lamp

Before installing the replacement Hitachi DT01021 follow these important safety tips:

  • Turn off the Hitachi CP-X2510 projector.
  • Unplug the power cord.
  • Allow the projector to cool for at least 45 minutes. It should be cool to the touch. This projector works using high heat and there is danger you can be burned.
  • NOTE: If the projector is mounted on the ceiling, don’t stand underneath the projector while opening the cover.

Hitachi_CP-X2510_projector_lamp_Hitachi_DT01021_cover

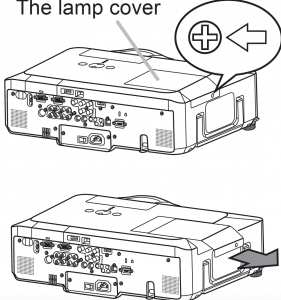

  • Loosen the screw (marked by arrow) of the lamp cover and then slide the lamp cover to the side to remove it.
  • Hitachi_CP-X2510_projector_lamp_Hitachi_DT01021_remove_cover
  • Loosen the 3 screws (marked by arrow) of the projector lamp, and slowly pick up the lamp by the handles. Be careful not the bang the lamp.

NOTE: The Hitachi DT01021 projector lamp contains mercury and must be recycled properly. Do not throw it in regular garbage.

Hitachi_CP-x2510_Install_projector_lamp_Hitachi_DT01021_remove

  • Insert the new lamp, taking care not to touch the actual bulb. Oil in your fingers will cause a dark spot on the lamp when it heats up.
  • Tighten the 3 screws of the Hitachi DT01021 projector lamp that were loosened to remove the old projector lamp.
  • Hitachi_CP-X2510_projector_lamp_cover_install
  • Slide the lamp cover back in place and firmly fasten the screw of the lamp cover.
  • Turn on the projector and set the lamp timer

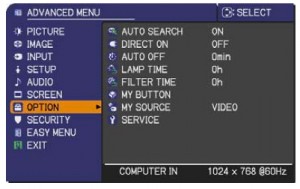

To reset the projector lamp timer:

Reset the projector lamp time only when you have replaced the lamp so the Hitachi CP-X2510 projector can properly track the lamp life. Otherwise you run the risk of using the lamp beyond its lamp life. Hitachi_CP-X2510_reset_lamp_timer_hitachi_DT01021

  • Press the MENU button
  • Scroll down to the GO TO ADVANCED MENU option. Press ENTER
  • Scroll down to the OPTION menu in the left column and press ENTER.
  • Scroll down to LAMP TIME. Press ENTER To make a dialogue field appear
  • Scroll up to the RESET option on the dialogue box.
  • The lamp setting will be set to zero.

VPL-GH10_projectorHow to replace the Sony VPL-GH10 projector lamp

Our guide shows you how to install a replacement Sony VPL-GH10 projector lamp with easy step-by-step instructions.

Buy authentic

Don’t settle for anything but the best for your Sony VPL-GH10 projector and install an authentic projector lamp. Don’t get caught with a counterfeit lamp. Keep your projector working properly and invest in an authentic projector lamp.

Find this lamp on Amazon from these authorized dealers:

When to replace?

When the this Sony VPL-GH10 projector lamp projector lamp is reaching end of life, the Lamp light will flash red in 3 second intervals. The message “Please replace the Lamp/Filter” will also start flashing on screen. If the projector lamp dims change it immediately. Sony recommends replacing the air filter at the same as replacing the lamp.

Replacing the Sony VPL-GH10 Lamp and Air Filter

Sony_VPL-GH10_Sony_LMP-H201_projector_lampBefore installations preparations:

  • Unplug the AC power cord on the Sony VPL-GH10 projector.
  • Your Sony VPL-GH10 projector uses the Sony LMP-H201 projector lamp. Before installing the lamp, let the projector cool for at least 40 minutes. It should be cool to the touch. Don’t rush the cooling as these projectors operate using extremely high temperatures and you run the risk of a serious burn.

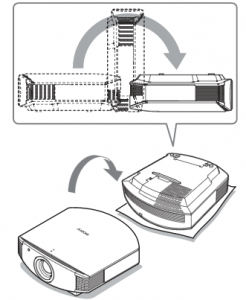

  • The projector lamp cover is on the bottom of the projector so you will need to turn it over. Put down a soft cloth on a flat surface to prevent the projector getting scratched. Turn the projector over gently. Don’t lean on the projector and make sure the surface is flat and stable.
  • Using a Philips screwdriver, loosen the screw holding the projector lamp cover in place. Slide the projector lamp cover. Put it to one side.

Sony_VPL-GH10_Sony_LMP-H201_remove_projector_lamp_screwLoosen the 3 screws on the Sony LMP-H201 lamp using a Phillips screwdriver. Grab the wire handle on the Sony LMP-H201 projector lamp and gently pull the lamp straight out. Take care not to bang the lamp as you can cause the bulb to break.

NOTE: The Sony LMP-H201 projector lamp contains mercury and should not be thrown into regular garbage. Recycle this lamp!

Sony_VPL-GH10_Sony_LMP-H201_remove_projector_lamp

To finish the projector lamp installation:

  • Remove the packaging from the new Sony LMP-H201 projector lamp.
  • Lift up the handle and slowly lower the Sony LMP-H201 projector lamp into the projector.Sony_VPL-GH10_insert_Sony_LMP-H201_projector_lamp
  • Push it in securely until it reaches the end.
  • Tighten the three screws on the lamp.
  • Also don’t touch the actual bulb in the new lamp as oily fingerprints can burn a black spot on the lamp when it heats up.
  • Slide the lamp cover back onto the Sony VPL-GH10 projector.
  • Close the projector lamp cover and tighten the screws.
    Remember to install the lamp cover properly as the projector will not turn on if the cover is loose or not installed correctly.

Replacing the Sony VPL-GH10 air filter

201_remove_projector_lamp_aor_filter

  • Remove the filter holder. The air filter will be inside the holder. Don’t touch the fan inside as this can damage the projector.
  • Remove the old Sony VPL-GH10 filter and put it to one side. Attach the new air filter so that is fits into the 10 claws properly on the holder.Sony_VPL-GH10_Sony_LMP-H201_remove_projector_lamp_cover
  • Aligning the air filter with the shape of the filter holder will make it easier to install.
  • Be sure to put the air filter holder back into the projector aligned up properly. If not, the projector will not turn back on!
  • Wipe off any dust from the ventilation intake holes using a soft cloth. Put the projector back in its original position

Resetting the Sony VPL-GH10 projector lamp timer

Sony_VPL-GH10_Sony_LMP-H201_rese

  • To reset the projector lamp timer, plug the AC power cord back into Sony VPL-GH10 projector.
  • Using the remote, scroll down to the Setup Menu.
  • Press Enter.

Sony_VPL-GH10_Sony_LMP-H201_reset_projector_lamp_timer

  • A Lamp Setting message will appear asking you if the projector lamp has been replaced.
  • Click on Yes.
  • You will see a confirmation message and the Projector Lamp Timer will be automatically reset to zero.
  • See the number of hours left on your lamp by going to the Information Menu

You can extend the life of the Sony LMP-H201 projector lamp by always making sure the filter is clean and there is enough airflow around the projector. Learn how to get a longer projector lamp life with top tips for extending DLP projector lamp life.

4 reasons to avoid counterfeit lamps:

Tagged with: , ,

Sony-vplhw20_projector

Our guide shows you how easy it is to replace the Sony VPL-HW20 projector lamp!

Buy authentic

Don’t settle for anything but the best. Buy an authentic  for your Sony VPL-HW20 projector lamp. When buying look for the seal of approval — don’t get caught with a counterfeit lamp. They have shorter lamp and are more toxic due to the substitute materials used by counterfeit manufacturers. These lamps often don’t work properly with the sensitive electronics in your projector and are prone to explosions. Keep your projector working properly and invest in an authentic projector lamp.

Don’t settle for anything but the best for your Sony VPL-HW20 projector and install an authentic projector lamp. Don’t get caught with a counterfeit lamp. Keep your projector working properly and invest in an authentic projector lamp.

Buy this lamp on Amazon from the following verified manufacturers:

When to replace?

When the this Sony VPL-HW20 projector lamp is reaching end of life, the Lamp light will flash red in 3 second intervals. The message “Please replace the Lamp/Filter” will also start flashing on screen. If the projector lamp dims change it immediately. Sony recommends replacing the air filter at the same as replacing the lamp.

Replacing the Sony VPL-HW20 Lamp and Air Filter

Sony _VPL-HW20 _Sony_LMP-H201_projector_lampBefore installations preparations:

  • Unplug the AC power cord on the Sony VPL-HW20 projector.
  • Your Sony VPL-HW20 projector uses the Sony LMP-H201 projector lamp. Before installing the lamp, let the projector cool for at least 40 minutes. It should be cool to the touch. Don’t rush the cooling as these projectors operate using extremely high temperatures and you run the risk of a serious burn.
  • The projector lamp cover is on the bottom of the projector so you will need to turn it over. Put down a soft cloth on a flat surface to prevent the projector getting scratched. Turn the projector over gently. Don’t lean on the projector and make sure the surface is flat and stable.
  • Using a Philips screwdriver, loosen the screw holding the projector lamp cover in place. Slide the projector lamp cover. Put it to one side.



Sony_VPL-HW20_Sony_LMP-H201_remove_projector_lamp_screwLoosen the 3 screws on the Sony LMP-H201 lamp using a Phillips screwdriver. Grab the wire handle on the Sony LMP-H201 projector lamp and gently pull the lamp straight out. Take care not to bang the lamp as you can cause the bulb to break.

NOTE: The Sony LMP-H201 projector lamp contains mercury and should not be thrown into regular garbage. Recycle this lamp!

Sony_VPL-HW20__Sony_LMP-H201_remove_projector_lamp

To finish the projector lamp installation:

  • Remove the packaging from the new Sony LMP-H201 projector lamp.
  • Lift up the handle and slowly lower the Sony LMP-H201 projector lamp into the projector.Sony_VPL-HW20_insert_Sony_LMP-H201_projector_lamp
  • Push it in securely until it reaches the end.
  • Tighten the three screws on the lamp.
  • Also don’t touch the actual bulb in the new lamp as oily fingerprints can burn a black spot on the lamp when it heats up. Sony_VPL-HW20_
  • Slide the lamp cover back onto the Sony VPL-GH10 projector.
  • Close the projector lamp cover and tighten the screws.
    Remember to install the lamp cover properly as the projector will not turn on if the cover is loose or not installed correctly.

Replacing the Sony VPL-GH10 air filter

Sony_VPL-HW20_201_remove_projector_lamp_air_filter

  • Remove the filter holder. The air filter will be inside the holder. Don’t touch the fan inside as this can damage the projector.
  • Remove the old Sony VPL-GH10 filter and put it to one side. Attach the new air filter so that is fits into the 10 claws properly on the holder.Sony_VPL-HW20_Sony_LMP-H201_remove_projector_lamp_cover
  • Aligning the air filter with the shape of the filter holder will make it easier to install.
  • Be sure to put the air filter holder back into the projector aligned up properly. If not, the projector will not turn back on!
  • Wipe off any dust from the ventilation intake holes using a soft cloth. Put the projector back in its original position

Resetting the Sony VPL-GH10 projector lamp timer

Sony_VPL-HW20_Sony_LMP-H201_rese

  • To reset the projector lamp timer, plug the AC power cord back into Sony VPL-GH10 projector.
  • Using the remote, scroll down to the Setup Menu.
  • Press Enter.



Sony_VPL-HW20_Sony_LMP-H201_reset_projector_lamp_timer

  • A Lamp Setting message will appear asking you if the projector lamp has been replaced.
  • Click on Yes.
  • You will see a confirmation message and the Projector Lamp Timer will be automatically reset to zero.
  • See the number of hours left on your lamp by going to the Information Menu

You can extend the life of the Sony LMP-H201 projector lamp by always making sure the filter is clean and there is enough airflow around the projector. Learn how to get a longer projector lamp life with top tips for extending DLP projector lamp life.

4 reasons to avoid counterfeit lamps:





Tagged with: , ,

cpx2510 projector lamp

Here’s how to replace the Hitachi CP-X2510 projector lamp

Keep your projector working at its best by installing a genuine Hitachi CP-X2510 projector lamp. Your Hitachi CP-X2510 projector uses the Hitachi DT01021 projector lamp. Only an OEM authentic replacement projector lamp will keep your projector working.

Tracking Hitachi CP-X2510 projector lamp

Keep track of the Hitachi CP-X2510 projector lamp life so you’ll know when to replace the projector lamp. Watch for these signs that indicated the projector lamp is reaching its end of life:

  • The Power and Lamp Indicators will begin blinking.
  • Color tone on the screen may also appear weak or washed out.
  • Picture has poor color quality.

Install the replacement projector lamp

Before installing the replacement Hitachi DT01021 follow these important safety tips:

  • Turn off the Hitachi CP-X2510 projector.
  • Unplug the power cord.
  • Allow the projector to cool for at least 45 minutes. It should be cool to the touch. This projector works using high heat and there is danger you can be burned.
  • NOTE: If the projector is mounted on the ceiling, don’t stand underneath the projector while opening the cover.

Hitachi_CP-X2510_projector_lamp_Hitachi_DT01021_cover

  • Loosen the screw (marked by arrow) of the lamp cover and then slide the lamp cover to the side to remove it.
  • Hitachi_CP-X2510_projector_lamp_Hitachi_DT01021_remove_cover
  • Loosen the 3 screws (marked by arrow) of the projector lamp, and slowly pick up the lamp by the handles. Be careful not the bang the lamp.

NOTE: The Hitachi DT01021 projector lamp contains mercury and must be recycled properly. Do not throw it in regular garbage.

Hitachi_CP-x2510_Install_projector_lamp_Hitachi_DT01021_remove

  • Insert the new lamp, taking care not to touch the actual bulb. Oil in your fingers will cause a dark spot on the lamp when it heats up.
  • Tighten the 3 screws of the Hitachi DT01021 projector lamp that were loosened to remove the old projector lamp.
  • Hitachi_CP-X2510_projector_lamp_cover_install
  • Slide the lamp cover back in place and firmly fasten the screw of the lamp cover.
  • Turn on the projector and set the lamp timer

To reset the projector lamp timer:

Reset the projector lamp time only when you have replaced the lamp so the Hitachi CP-X2510 projector can properly track the lamp life. Otherwise you run the risk of using the lamp beyond its lamp life. Hitachi_CP-X2510_reset_lamp_timer_hitachi_DT01021

  • Press the MENU button
  • Scroll down to the GO TO ADVANCED MENU option. Press ENTER
  • Scroll down to the OPTION menu in the left column and press ENTER.
  • Scroll down to LAMP TIME. Press ENTER To make a dialogue field appear
  • Scroll up to the RESET option on the dialogue box.
  • The lamp setting will be set to zero.

Green your projector

Hitachi_CP-X2510_projector_bulb_only_lamp_Hitachi_DT01022

Recycle your lamp housing by only replacing the Hitachi CP-X2510 bulb. Our video shows you how. It’s quick and easy.

5 reasons to avoid counterfeits

Tagged with: , ,

Hitachi CP-X3010 projector

Replace the Hitachi CP-X3010 projector lamp

Keep your projector working at its best by installing a genuine Hitachi CP-X3010 projector lamp. Only an OEM authentic replacement projector lamp will keep your projector working.

Why avoid counterfeits?

Find this lamp on Amazon sold by these authorized dealers:

Keep track of the Hitachi CP-X3010 projector lamp life so you’ll know when to replace the projector lamp. Watch for these signs that indicated the projector lamp is reaching its end of life:

  • The Power and Lamp Indicators will begin blinking.
  • Color tone on the screen may also appear weak or washed out.
  • Picture has poor color quality.

Install the replacement projector lamp

Your Hitachi CP-X3010 projector uses the Hitachi DT01021 projector lamp. Before installing the replacement Hitachi DT01021 follow these important safety tips:

  • Turn off the Hitachi CP-X3010 projector.
  • Unplug the power cord.
  • Allow the projector to cool for at least 45 minutes. It should be cool to the touch. This projector works using high heat and there is danger you can be burned.
  • NOTE: If the projector is mounted on the ceiling, don’t stand underneath the projector while opening the cover.

Hitachi_CP-X3010_projector_lamp_Hitachi_DT01021_cover

  • Loosen the screw (marked by arrow) of the lamp cover and then slide the lamp cover to the side to remove it.
  • Hitachi_CP-X3010_projector_lamp_Hitachi_DT01021_remove_cover
  • Loosen the 3 screws (marked by arrow) of the projector lamp, and slowly pick up the lamp by the handles. Be careful not the bang the lamp.

NOTE: The Hitachi DT01021 projector lamp contains mercury and must be recycled properly. Do not throw it in regular garbage.

Hitachi_CP-x3010_Install_projector_lamp_Hitachi_DT01021_remove

  • Insert the new lamp, taking care not to touch the actual bulb. Oil in your fingers will cause a dark spot on the lamp when it heats up.
  • Tighten the 3 screws of the Hitachi DT01021 projector lamp that were loosened to remove the old projector lamp.
  • Hitachi_CP-X3010_projector_lamp_cover_install
  • Slide the lamp cover back in place and firmly fasten the screw of the lamp cover.
  • Turn on the projector and set the lamp timer

To reset the projector lamp timer:

Reset the projector lamp time only when you have replaced the lamp so the Hitachi CP-X3010 projector can properly track the lamp life. Otherwise you run the risk of using the lamp beyond its lamp life. Hitachi_CP-X3010_reset_lamp_timer_hitachi_DT01021

  • Press the MENU button
  • Scroll down to the GO TO ADVANCED MENU option. Press ENTER
  • Scroll down to the OPTION menu in the left column and press ENTER.
  • Scroll down to LAMP TIME. Press ENTER To make a dialogue field appear
  • Scroll up to the RESET option on the dialogue box.
  • The lamp setting will be set to zero.

Green your projector

Hitachi_CP-X3010_projector_bulb_only_lamp_Hitachi_DT01022

Recycle your lamp housing by only replacing the Hitachi CP-X3010 bulb. Our video shows you how. It’s quick and easy.

Save

Save

Save

Save

Tagged with: , ,

  Replace the Optoma HD143X projector lamp using this guide

With its wide screen format the Optoma HD143X projector is perfect for 3D gaming or HD viewing. The Optoma HD143X projector lamp will need to be changed after 15,000 hours of use.

Find this lamp on Amazon:

AWO Original Bulb Inside BL-FP240G / SP.7AZ01GC01 / BL-FP210A / BL-FP210B Replacement Lamp with Housing for OPTOMA DH350 EH334 EH335 EH336 EH337 HD143X HD144X HD270e HD27e WU335 WU337 HD28DSE DH1012

Why buy authentic?

Counterfeit lamps have a variety of problems including:

Buy an authentic projector lamp in order to keep your Optoma HD143X projector working properly while protecting your health and safety .

When to replace

When the Optoma HD143X projector lamp life is reaching end of life, you’ll see a warning sign appear on screen.

Replace the lamp immediately when you see this warning signs. Using the lamp beyond its recommended hours can result in the lamp exploding inside the projector. Watch for these other signs that the lamp may be reaching it’s end of life:

  • the Lamp LED flashing red
  • poor colour quality
  • image has deteriorated

Installing a new projector lamp

Your Optoma HD143X uses the BL-FP240G projector lamp. Follow these important safety tips before installing a new projector lamp

  • Switch off the power to the projector by pressing the Power/Standby button.
  • Allow the projector to cool down for at least 30 minutes. If should be cool to the touch. The Optoma HD143X runs at a high temperature and you can burn yourself badly if you don’t allow the projector to cool down.
  • Disconnect the power cord.

Remove the old lamp

  1. Use a screwdriver to loosen the screw holding the projector lamp cover in place.
  2. Remove the lamp cover and place to one side.

Optoma_projector_HD143X_replace-lamp

3. Loosen the screw holding the lamp in place.

4. Lift the wire handle on the lamp.

5. Unplug the lamp cord connecting it to the projector.

6. Carefully lift the lamp out of the projector. NOTE: This projector lamp contains mercury and should not be thrown into regular garbage. Recycle this used lamp!

Install the new lamp:

  • Gently place the new lamp into into the Optoma HD143X projector making sure not to touch the actual bulb. Oil from your fingers will burn black spots onto the lamp when it heats up.
  •  Connect the lamp cord to the projector outlet.
  • Tighten the lamp screw.
  • Connect the lamp cord.
  • Put the wire handle in place.
  • Close the lid. Tighten the cover screw.
  • You are now ready to reset the lamp timer.

Reset the Optoma HD143X projector lamp timer

Your Optoma HD143X comes equipped with an automatic projector lamp timer that tracks the number of hours left for the lamp. Each time you change the lamp you need to reset the lamp timer. Failure to do so may cause the projector to use the lamp over the recommended period of time resulting in the lamp exploding.

To reset the lamp timer:

  • Press MENU
  • Select Setup
  • Select Lamp Settings
  • Select Lamp Reset
  • Select Yes

Learn TOP Tips for extending the lamp life in your Optoma HD143X projector.

Tagged with: ,

Hitachi_CP_X201_projectorReplace the Hitachi CP X807 projector lamp

Watch for these signs when the Hitachi CP X807 projector lamp is reaching end of life:

  • Both the Hitachi CP X807 Power and Lamp Indicators are flashing red while the Temp Indicator is turned off.
  • Color tone on the screen may also appear weak or washed out.
  • Picture has poor color quality.

Authentic lamps

The Hitachi CP X807 uses the Hitachi DT00871. Only an OEM authentic replacement projector lamp will keep your Hitachi CP X807 projector working. Look for the seal of approval before purchasing. Learn to spot copycat lamps posing as authentic lamps. Keep track of projector lamp life so you’ll know when to replace the projector lamp. Avoid generics because they have a shorter life than originals as well as being prone to explosions and created with toxic substitute parts. They can damage the sensitive optics in your Hitachi CP X807 projector and as well as hurt your eyesight.

Find this lamp sold on Amazon by these authorized distributors:

Install the Hitachi projector lamp

Safety steps before installing the Hitachi DT00871

  • Turn off the Hitachi CP X807 projector.
  • Unplug the power cord.
  • Allow the projector to cool for at least 45 minutes. It should be cool to the touch. This projector works using high heat and there is danger you can be burned.
  • NOTE: If the projector is mounted on the ceiling, don’t stand underneath the projector while opening the cover.
  • Prepare the new Hitachi CP X807 projector lamp. If the projector is mounted on a ceiling, or if the lamp has broken, contact your dealer for assistance.
  • Loosen the screw (marked by arrow) of the lamp cover and then slide the lamp cover to the side to remove it.

Hitachi_CP_X807_projector_lamp_Hitachi_DT00871_remove

  • Loosen the 3 screws (marked by arrow) of the Hitachi DT00871 projector lamp, and slowly pick up the lamp by the handles. Be careful not the bang the lamp. The Hitachi DT00871 projector lamp contains mercury and must be recycled properly. Do not throw it in regular garbage.
  • Insert the new lamp, and retighten firmly the 3 screws of the lamp that are loosened in the previous process to lock it in place.
  • Slide the lamp cover back in place and firmly fasten the screw of the lamp cover.

To reset the projector lamp timer:

Note: Reset the projector lamp time only when you have replaced the lamp so the Hitachi CP X807 projector can properly track the lamp life. Otherwise you run the risk of using the lamp beyond its life.

  • Press the MENU button
  • Scroll down to the GO TO ADVANCED MENU option. Press ENTER
  • Scroll down to the OPTION menu in the left column and press ENTER.
  • Scroll down to LAMP TIME. Press ENTER To make a dialogue field appear
  • Scroll up to the RESET option on the dialogue box.
  • The lamp setting will be set to zero.

Learn more tips to extend the life of the Hitachi CP X807 projector lamp.

Tagged with: ,

NEC_NP62_projectorHow to change the NEC NP62 projector lamp

Buy authentic!

The first thing to do is buy an OEM replacement NEC NP62 projector lamp. Your NEC NP62 projector uses the  projector lamp. Avoid the cheaper generic lamps with their shorter lamp life and toxic materials. They are prone to explosions and often damage the sensitive electronics in your NEC NP62 projector.

Note: These instructions can also be used with the NEC NP61 projector

When to replace

It’s time to replace the NEC NP62 projector when the following signs appear:

  • After your lamp has been operating for 2500hours (up to 3500 hours in ECO mode) the LAMP indicator will blink red.
  • The message: THE LAMP HAS REACHED THE END OF ITS USABLE LIFE. PLEASE REPLACE THE LAMP will appear.
  • colour looks off
  • picture is faint or has deteriorated

Find the lamp sold on Amazon by these certified sellers:

Changing the NEC NP62 projector lamp

NOTE: You must change the cooling pump when you change the projector lamp

Follow these important safety instructions before installing the new NEC NP09L projector lamp

  • turn off the NEC NP62 projector.
  • unplug the projector from its power source.
  • unplug the power cable.
  • wait until the projector is cool to the touch to avoid getting burned.

Place the projector on a soft cloth and turn it over to access the lamp cover on the bottom.

NEC NP62_projector_lamp_ NEC NP09LP_remove_lamp_coverLoosen the screw holding the lamp cover in place. The screw is freewheeling so will not come out of the cover.

NEC NP62_projector_lamp_ NEC NP09LP_loosen_lamp_screwsLoosen the two screws holding the NEC NP09L projector lamp in place. These screws are also freewheeling so will not come out of the lamp. Lift up the wire handle and use it to gently plug the lamp out of the projector.

NOTE: Your NEC NP09L projector lamp projector lamp should be properly recycled because it contains mercury.

NEC NP62_projector_lamp_ NEC NP09LP_interlock_solution

If after removing the lamp the black packing ring is stuck inside the projector manually remove it from the

post.

NEC NP62_projector_lamp_ NEC NP09LP_insert_new_lampInsert the new lamp taking care to line it up properly making sure it clicks into the socket. Tighten the two screws on the lamp.

NEC NP62_projector_lamp_ NEC NP09LP_reattach_lamp_coverReattach the lamp cover and tighten the screw to hold it in place.

You must also replace the cooling pump!

Replacing the cooling pump

NEC NP62_projector_lamp_ NEC NP09LP_remove_cooling_pump_screwLoosen the screw holding the cooling pump into place. This is also a freewheeling screw that will not come out.

NEC NP62_projector_lamp_ NEC NP09LP_remove_connectorRemove the cooling pump cover.  Inside the projector, small contact area of the connector should be kept clean of dust or debris. Clean it manually is there is anything blocking the area.

NEC NP62_projector_lamp_ NEC NP09LP_new_pumpAlign the tabs on the cooling pump cover with the guide on the inside of the projector cabinet.

NEC NP62_projector_lamp_ NEC NP09LP_cool_pump_cover_screwTighten the screw on the cooling pump. You can now reset the lamp timer.

Reset the lamp timer

Once the NEC NP09L projector lamp has been replace you need to reset the lamp timer for the NEC NP62 projector since you want it to accurately track the lamp life.

Clear usage hours and reset hours

  • Plug in the power cored into the wall outlet.
  • Turn on the projector.
  • From the MENU select RESET.
  • Choose CLEAR LAMP HOURS.
  • A confirmation message appears.
  • Select YES.

Learn more tips to extend the life of the NEC NP62 projector lamp.

Tagged with: , ,

Epson PowerLite 1222_projectorWhen to replace the  Epson PowerLite 1222 air filter?

The Epson PowerLite 1222 air filter is an important part of helping to keep your projector working properly. It keeps out the dust and dirt from getting inside  but also helps the air circulate so your projector doesn’t overheat. Clean air filters can help your projector lamp last longer.

Cleaning the Air Filter and Vents

Epson_PowerLite_ 1222_clean_air filterCleaning the air filters should be a regular part of your projector maintenance  but it you forget you will see an onscreen message telling you to clean them. Follow these steps:
1. Turn off the projector and unplug the power cord.
2. Gently remove the dust from the Epson PowerLite 1222 air filterusing a small vacuum designed for computers or a very soft brush (such as a paintbrush). DON’T use canned air since this leaves a flammable residue in the projector. The canned air can also push dust into the projector’s sensitive optics and damage them.
3. If the filters are very blocked with dust you can remove them to clean both side. DON’T use any water, detergent or cleaning solutions on the filter.
4. If there is too much dust or if the Epson PowerLite 1222 air filter is damaged, you will need to replace it. After cleaning the air filter, you may also see a message telling you to clean or replace it

Find this air filter on Amazon:

OEM Epson Projector Air Filter: PowerLite 1222, 1224, 1263W, 1264, 1284

Replacing the air filter

Epson PowerLite 1222_replace air filter_lid
You can replace the Epson PowerLite 1222 air filterwhile the projector is mounted to the ceiling or placed on a table.
1. Turn off the projector and unplug the power cord.
2. Carefully open the air filter cover.







Epson_PowerLite_1222_remove_air_filter
3. Pull the Epson PowerLite 1222 air filter out of the projector.
Note: Air filters contain ABS resin and polyurethane foam so need to be disposed properly. Don’t thrown them into regular garbage.







Epson_PowerLite 1222_install_new_air_filter4. Place the new Epson PowerLite 1222 air filter in the projector as shown and push gently until it clicks into place.
5. Close the air filter cover.



Also check the projector lamp life. Often the lamp needs to be replaced at the same time as as the filter.





Learn more about:

flame-projector lamp overheated

Solve your projector heat problems

Stop your projector from overheating. Projector heat problems are common to every type of of projector. Almost all projectors face problems with overheating. Whether yours is using an LCD or a DLP projector lamp, there is a tremendous amount of heat created—close to 200 to 300 degrees Th.e brighter and clearer the projection, the higher the heat. These tips will help your projector stay cool.

projector heat problems

Air flow

Uninterrupted airflow outside the projector is the most important thing to consider when installing your projector. There has to be enough space around the projector so air can circulate freely. Don’t place it atop any soft surfaces and make sure there is nothing blocking the sides.

Clean air is also important. If you are running your projector is an extremely dusty or smoky room, it is going to heat up much quicker. Cigarette smoke will definitely make the projector heat up quicker. If the room is extremely smoky, then you will need to check the air filters more frequently.



projector heat problems -- ceiling mountsProper placement

Placement is really important to keep the fans and air vents working. Keeping the area around the projector free from clutter will help the projector to stay cool and prevent any unplanned shutdowns due to heat buildup.

When using the projector on a table or desk make sure that there nothing blocking the vents. Never cover the projector when it’s operating as this can cause it to overheat as well. The heat from the projector has nowhere to go since it’s being created inside.  If you are mounting the projector leave enough space between the ceiling and projector to have air flow.



air filtersBasic Cleaning

Most projectors rely on built in fans to remove heat from the projector. These fans circulate cool air around inside the projector. These fans also draw in air to cool down the projector.  To prevent dust from getting inside the projectors and to purify the air there are also air filters in front of the circulating vents. Over time these air filters become dirty. If they become too blocked then air can’t circulate, and the projector starts to overheat. You should always check your air filters on a regular basis. Depending on your model, you may need to replace the entire air filer rather than clean it. Also check the fan and if it needs to be cleaned. This is usually done with compressed air to blow the dust away from the fan.

match-Room Temperature

A climate-controlled room is the best environment for your projector. An air-conditioned room will keep the projector from overheating. Adjusting the temperature can help the projector stay cool.

Use the off switch

Your projector needs time to cool down. It’s recommended that after a presentation you turn off after letting it cool. This will also make the projector lamp last longer.  Sometimes connecting cables don’t provide the proper connections and this can cause heat problems as well. If you find your cables are heating up, then replace them with higher quality ones.

Top tips for extending projector lamp life



Tagged with: ,
