Compatible TV Models: 'HD50LPW175YX2, HD50LPW175YX7, HD61LPW175YX2.

Assembly part numbers: 1644987, 1645417, 784050819, 16436090, 7214.

NORMAL DISCLAIMER:
— Do NOT purchase generic brand lamps such as LTI, APO or third-party manufacturers such as OSRAM. These lamps were NOT engineered with and for your TV…only your Philips lamp has been engineered to work flawlessly and output the best possible color. Above that, it just doesn’t make sense to choose an aftermarket lamp for a $5-$10 difference (and in many cases they are more expensive!!).

Be a smart consumer and shop around, do your research! Discount-Merchant.com promises to be the low price leader in all Projection Lamps they carry…if this is not true, let us know and we’ll fix it!

Tools Required: 1 Tork T10 screwdriver (6 point star tip), 1 Tork T8 screwdriver (6 point star tip), 1 Pair of Pliers, & A new lamp.

Time Required: About 15 minutes.

Abstract: This guide is being published to show how easy it is to replace your original RCA 271326 Lamp.

NOTE: We recommend you to use latex gloves when handling the new bulb, to avoid any dirt or oil. Our hands are naturally oily…The oil residue from our hands can cause premature failure of the lamp if the front side of the lamp is not wiped down after the installation. It doesn’t hurt to do a final wipe with a clean, non-abrasive, lint-free cloth before reinstalling your lamp…

	RCA 271326 Lamp casing			1.- First, turn the lamp facedown so it will look like this.

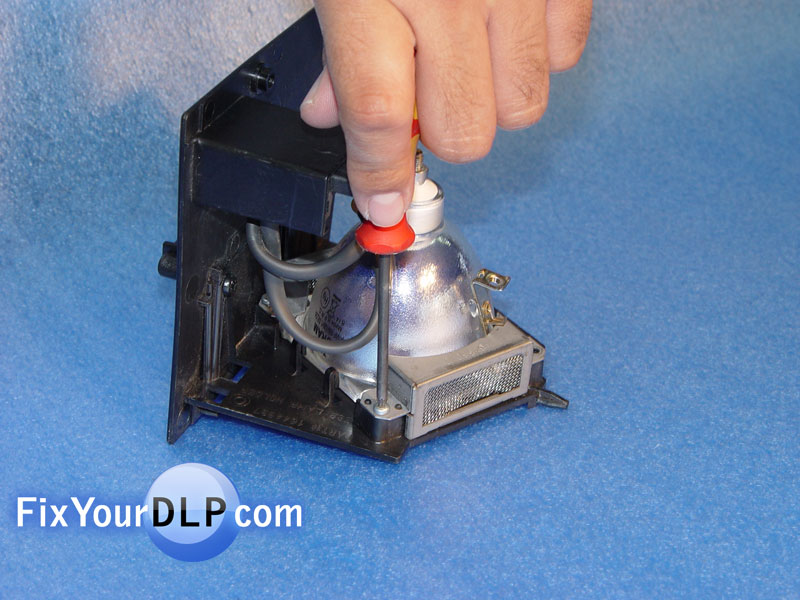

	2.- With a pair of pliers, remove the nut on the top of the lamp.			3.- Using a Tork T10 screwdriver, remove the screw that is holding the cable to the side of the lamp.
	4.- With a Tork T8 screwdriver you will be able to remove the screws holding the lamp vent.			5.- Remove the second screw holding lamp vent.
	6.- Repeat same steps to the second lamp vent.			7.- Now your lamp vents are free and safe to be remove.
	8.- Uninstall booth lamp vents.			9.- Remove your old lamp, by pulling it out.
	A.- Now take out your new bare bulb to reinstall it the same way you took out the old one.			B.-Place your new PHILIPS E22 UHP 100W/120W 1.0 lamp to the lamp holder.
	C.-Place back the lamp vents to their original position.			D.- Be Carefull to not damaged your new lamp.
	E.- Finish assembling the lamp vent by putting back the screws with a Tork T8 screwdriver.			F.- Repeat same step to the second lamp vent.
	G.- Connect back again the cable on the side of the lamp using the Tok T10 screwdriver.			H.- Install the cable to the top of the lamp by tightening the nut.
	I.- And it will look like this.			J.-And you’re finished, Congratulations!

IMPORTANT: After installing the replacement bulb, you should wipe it with a clean cloth to avoid any dirt or oil. Our hands are naturally oily…this could reduce considerably the life span of the new lamp.
