For Part Number: Samsung DLP Lamp BP96-00677A, SAMSUNG-BP9601795A. ( Unsealed replacement lamp for DLP, SMALL with vents ).

Television Type: DLP.

For Enclosure: SAMSUNG Lamp ( SAMSUNG BP96-00677A ).

For Bulb: PHILIPS E22 UHP 132W / 120W 1.0

Click below to buy this lamp now:
buy now
Lowest Prices Anywhere!

Compatible TV Models: HLT5076S, HLT5076WX, HLT5676SX/XAA, BIXOLON HLT6176S, BIXOLON HLT5076S, BIXOLON HLT5676S, HLT5676SX/XAC, HLT6176SX, HLT5076SX, HLT5676S, HLT6176, HLT6176SX/XAA, HLT5076SXXAA, HLT5676SX, HLT6176S, HLT6176SX/XAC, HLT5076SX/XAC.

Assembly part numbers: BP63-00942A, BP63-00800A, 776012314, 5899.

NORMAL DISCLAIMER:
— Do NOT purchase generic brand lamps such as LTI, APO or third-party manufacturers such as OSRAM. These lamps were NOT engineered with and for your TV…only your Philips lamp has been engineered to work flawlessly and output the best possible color. Above that, it just doesn’t make sense to choose an aftermarket lamp for a $5-$10 difference (and in many cases they are more expensive!!).

Be a smart consumer and shop around, do your research! Discount-Merchant.com promises to be the low price leader in all Projection Lamps they carry…if this is not true, let us know and we’ll fix it!

Tools Required: 1 Phililps screwdriver, 1 Pair of Pliers, & A new lamp.

Time Required: About 15 minutes.

Abstract: This guide is being published to show how easy it is to replace your original SAMSUNG BP96-00677A Lamp.

NOTE: We recommend you to use latex gloves when handling the new bulb to avoid any dirt or oil. Our hands are naturally oily…The oil residue from our hands can cause premature failure of the lamp if the front side of the lamp is not wiped down after the installation. It doesn’t hurt to do a final wipe with a clean, non-abrasive, lint-free cloth before reinstalling your lamp…

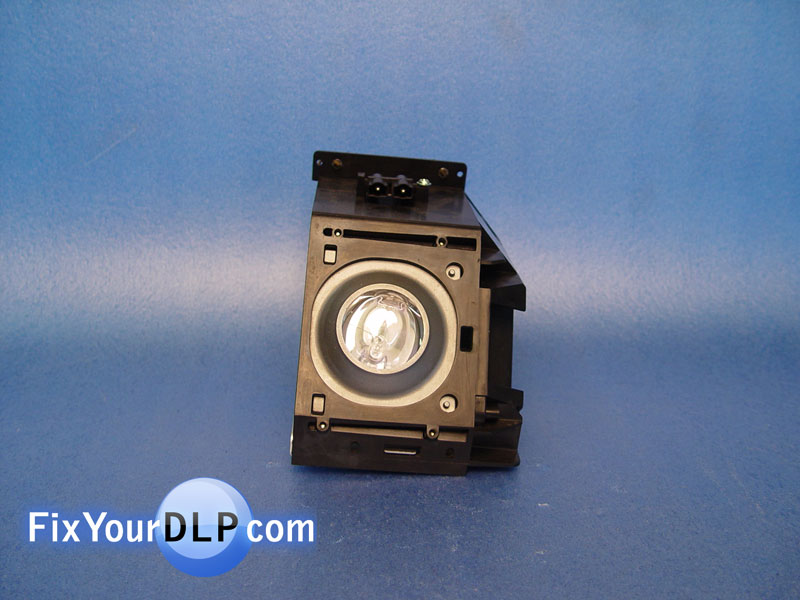

SAMSUNG BP96-00677A

SAMSUNG

BP96-00677A

Lamp casing


Metal lamp shield BP63-00279A

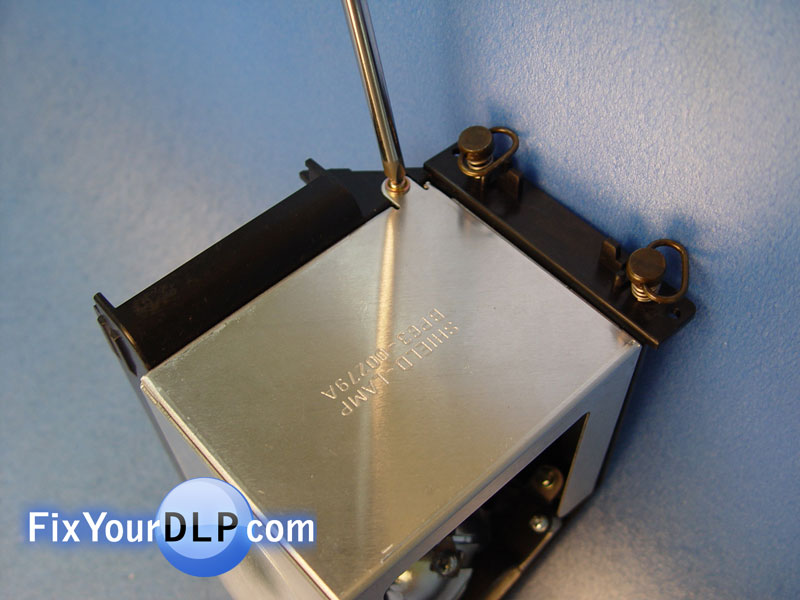

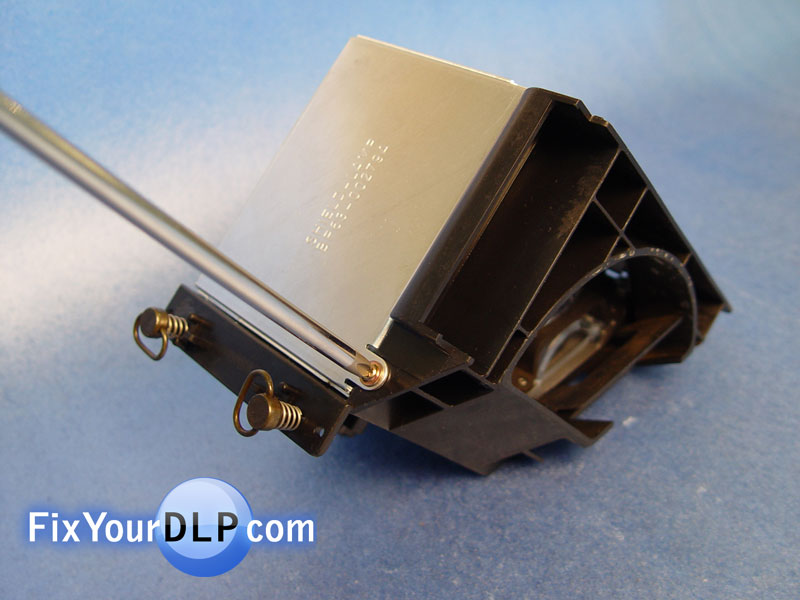

1.- Let’s start buy turning the lamp enclosure and remove the screw that secures the metal lamp shield in place.

Metal lamp shield BP63-00279A

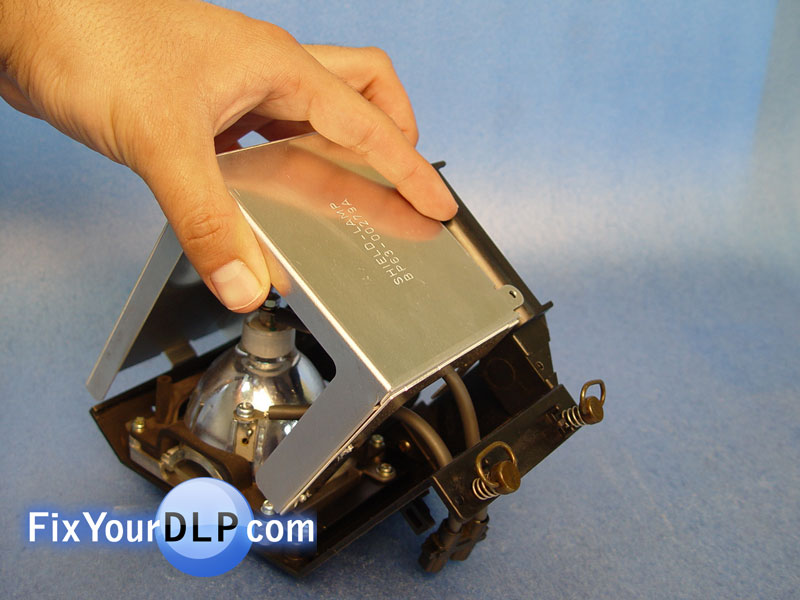

2.- Remove the lamp shield from the rest of the enclosure by pulling it out.


Cable connector & PHILIPS E22 UHP 132W/120W 1.0

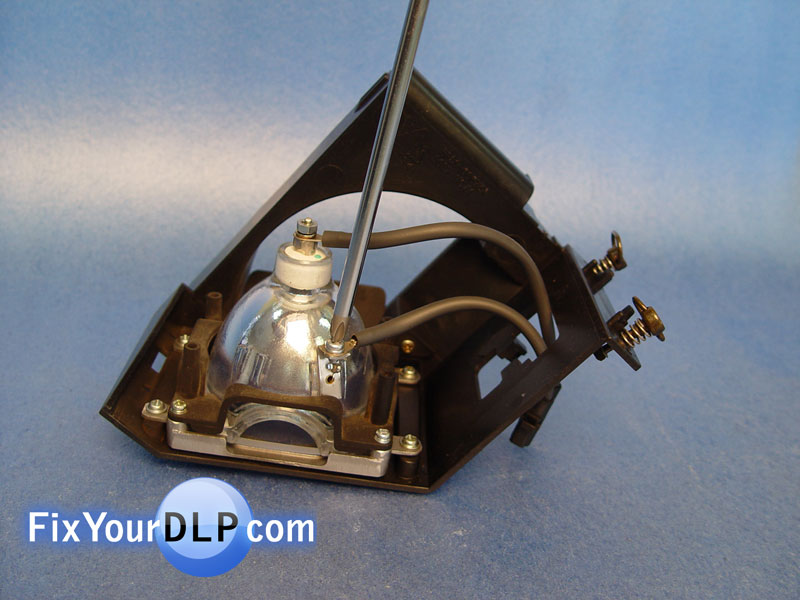

3.- Inside you must remove the screw on the side of the bulb that holds in place one of the cable connector.

Cable connector & PHILIPS E22 UHP 132W/120W 1.0

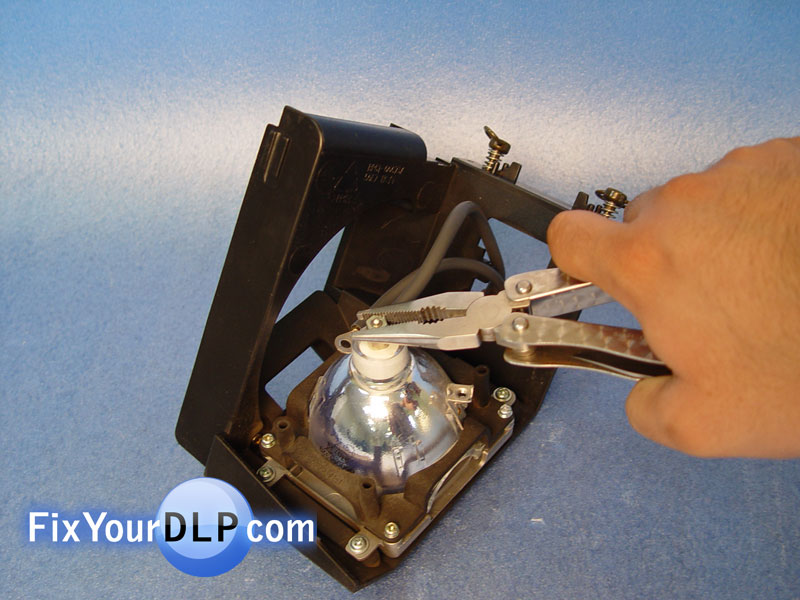

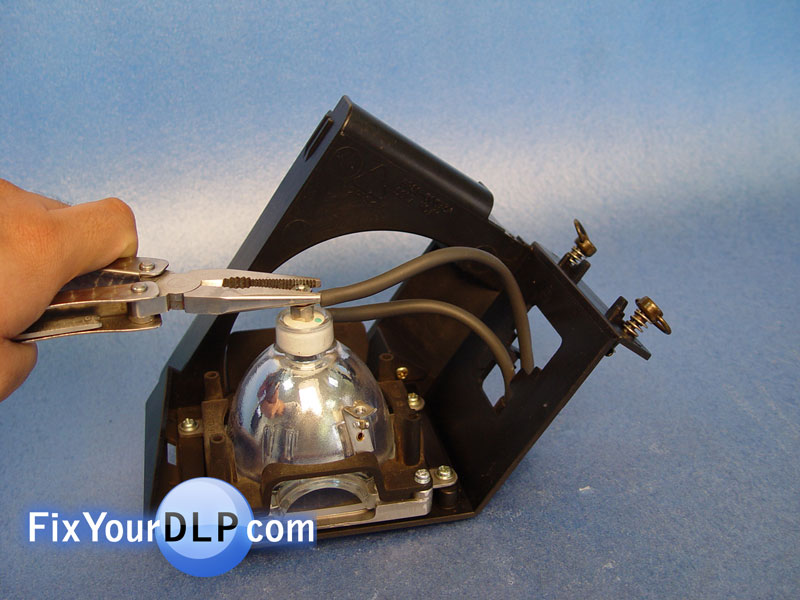

4.- Use your pliers to remove the nut on the top terminal of the lamp to set free the second cable.


Plastic lamp holder BP61-00737A & PHILIPS E22 UHP 132W/120W 1.0

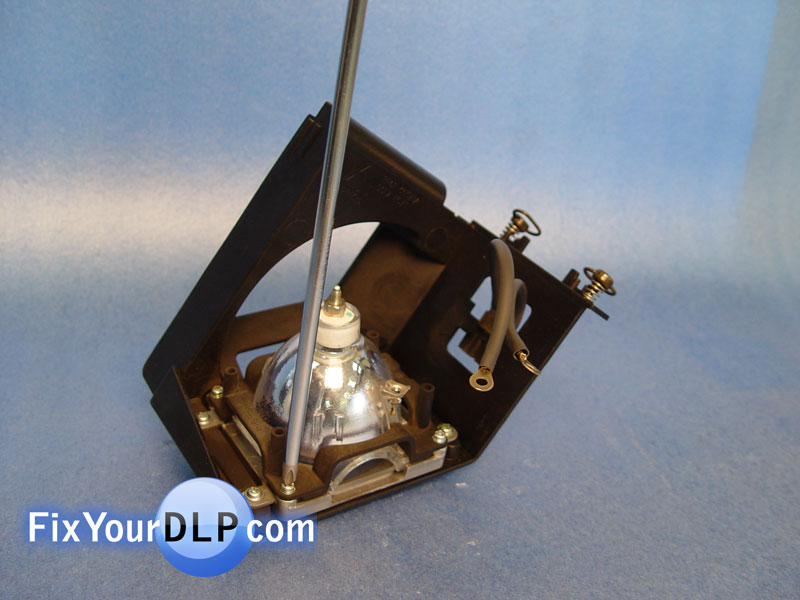

5.- On the base of the bulb there’s a lamp holder with four screws attached to it, take them out one by one with your screw driver.

Plastic enclosure & PHILIPS E22 UHP 132W/120W 1.0

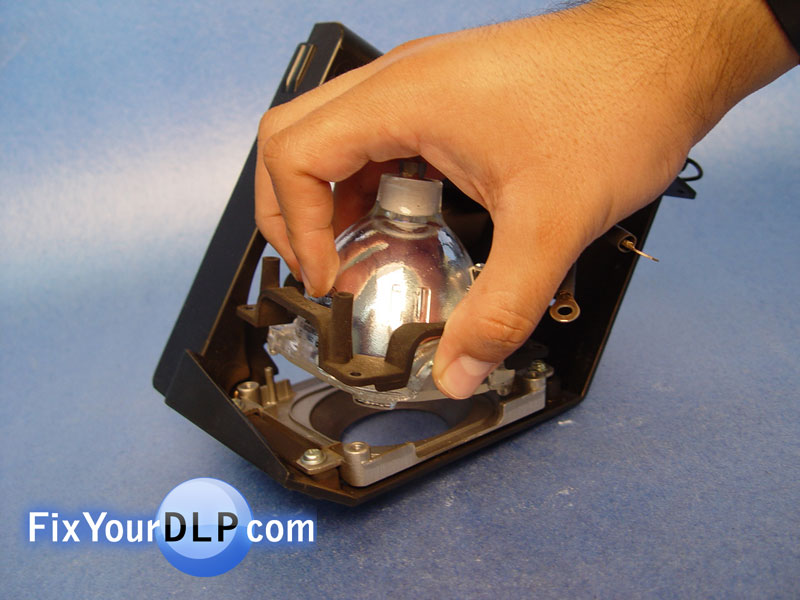

6.-Now pull the lamp out from the enclosure with the plastic holder.


PHILIPS E22 UHP 132W/120W 1.0

7.- Ready your new lamp that will look something like this.

Plastic enclosure & PHILIPS E22 UHP 132W/120W 1.0

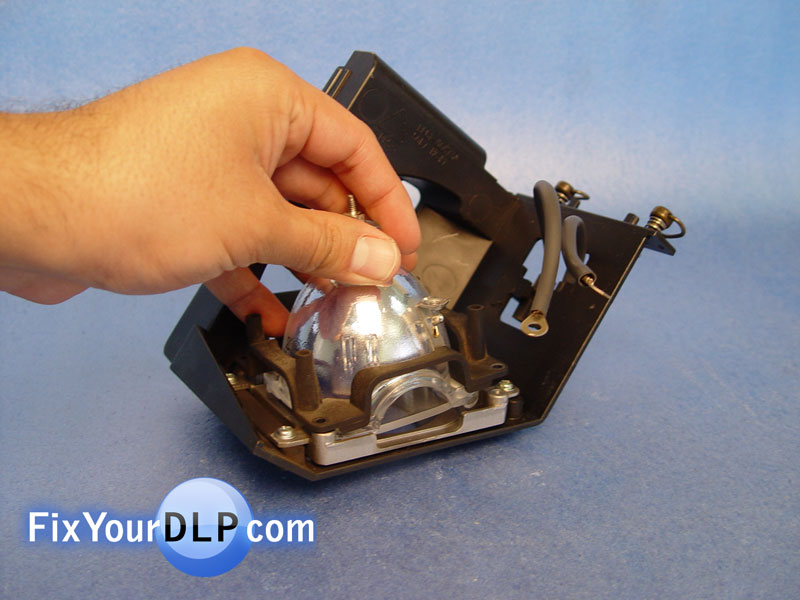

8.- Place your new lamp inside the enclosure with the plastic holder.


Plastic lamp holder BP61-00737A & PHILIPS E22 UHP 132W/120W 1.0

9.- Reinstall the four screws with your Philips screw driver tightly.

Cable connector & PHILIPS E22 UHP 132W/120W 1.0

A.-Secure one of the cable connector to the side of the top terminal of the bulb and reinstall the nut with your pair of pliers.


Cable connector & PHILIPS E22 UHP 132W/120W 1.0

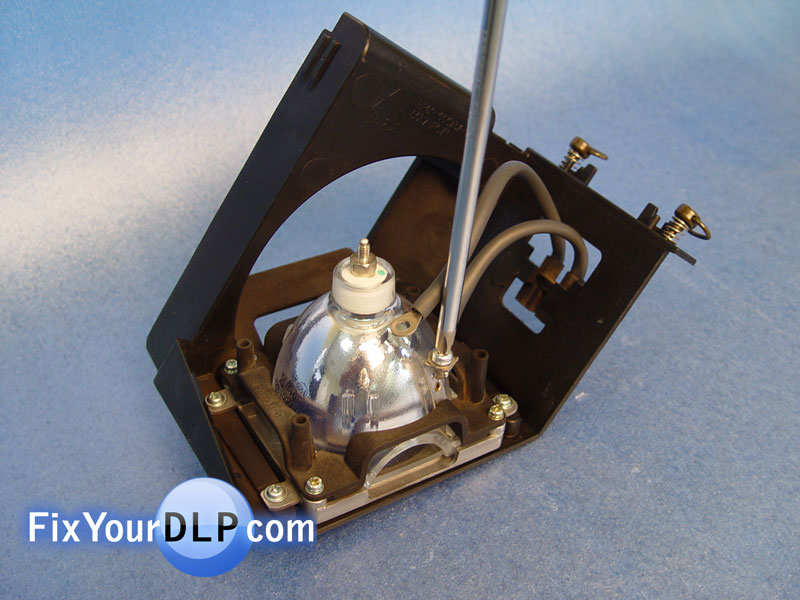

B.- And reconnect the second cable with the side terminal inserting and tightening the proper screw.

Metal lamp shield BP63-00279A

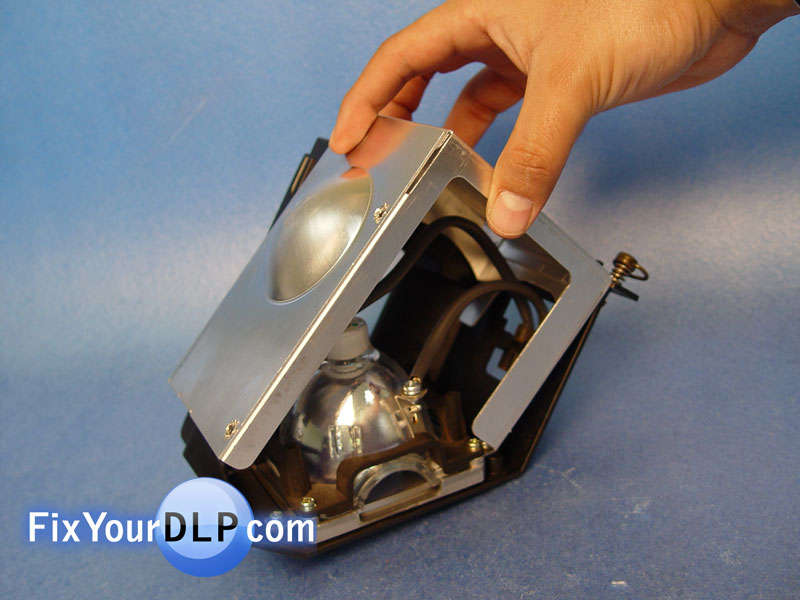

C.-Place the lamp shield back on the enclosure.


Metal lamp shield BP63-00279A

D.- Reconnect the cable to the top of the lamp by tightening the nut.

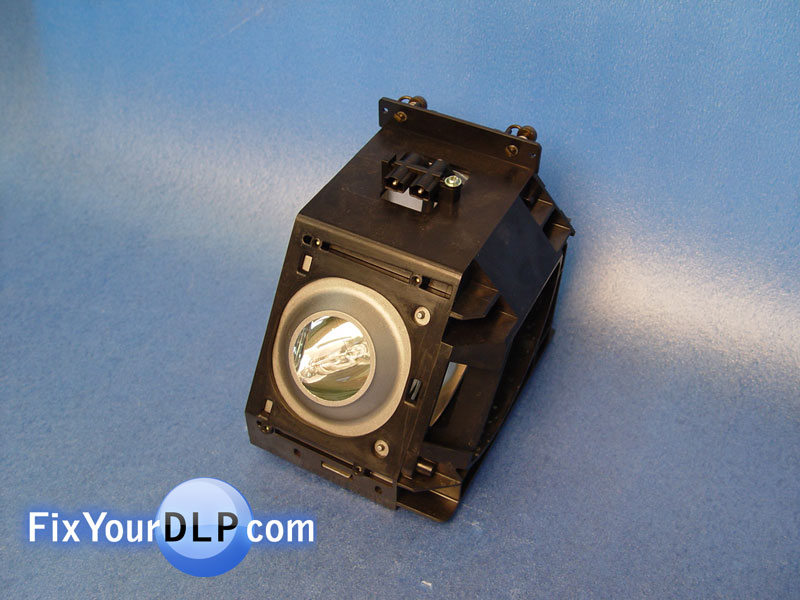

SAMSUNG BP96-00677A

E.- Congratulations! You have successfully replaced your lamp.







IMPORTANT: After installing the replacement bulb, you should wipe it with a clean cloth to avoid any dirt or oil. Our hands are naturally oily…this could reduce considerably the life span of the new lamp.
