SAMSUNG BP96-01415A How To Guide Replacement DLP Lamp Guide

Click below to buy this lamp now:

Lowest Prices Anywhere!

Compatible TV Models: HLT5076S, HLT5076WX, HLT5676SX/XAA, BIXOLON HLT6176S, BIXOLON HLT5076S, BIXOLON HLT5676S, HLT5676SX/XAC, HLT6176SX, HLT5076SX, HLT5676S, HLT6176, HLT6176SX/XAA, HLT5076SXXAA, HLT5676SX, HLT6176S, HLT6176SX/XAC, HLT5076SX/XAC.

Assembly part numbers: BP63-00942A, BP63-00800A, 776012314, 5899.

NORMAL DISCLAIMER:
— Do NOT purchase generic brand lamps such as LTI, APO or third-party manufacturers such as OSRAM. These lamps were NOT engineered with and for your TV…only your Philips lamp has been engineered to work flawlessly and output the best possible color. Above that, it just doesn’t make sense to choose an aftermarket lamp for a $5-$10 difference (and in many cases they are more expensive!!).

Be a smart consumer and shop around, do your research! Discount-Merchant.com promises to be the low price leader in all Projection Lamps they carry…if this is not true, let us know and we’ll fix it!

Tools Required: 1 Phililps screwdriver, 1 Pair of Pliers, & A new lamp.

Time Required: About 15 minutes.

Abstract: This guide is being published to show how easy it is to replace your original SAMSUNG BP96-01415A Lamp.

NOTE: We recommend you to use latex gloves when handling the new bulb to avoid any dirt or oil. Our hands are naturally oily…The oil residue from our hands can cause premature failure of the lamp if the front side of the lamp is not wiped down after the installation. It doesn’t hurt to do a final wipe with a clean, non-abrasive, lint-free cloth before reinstalling your lamp…

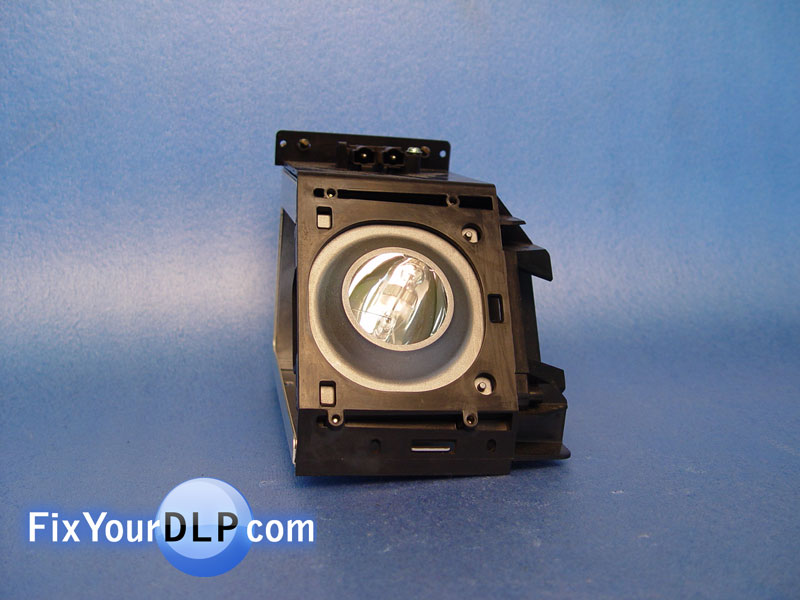

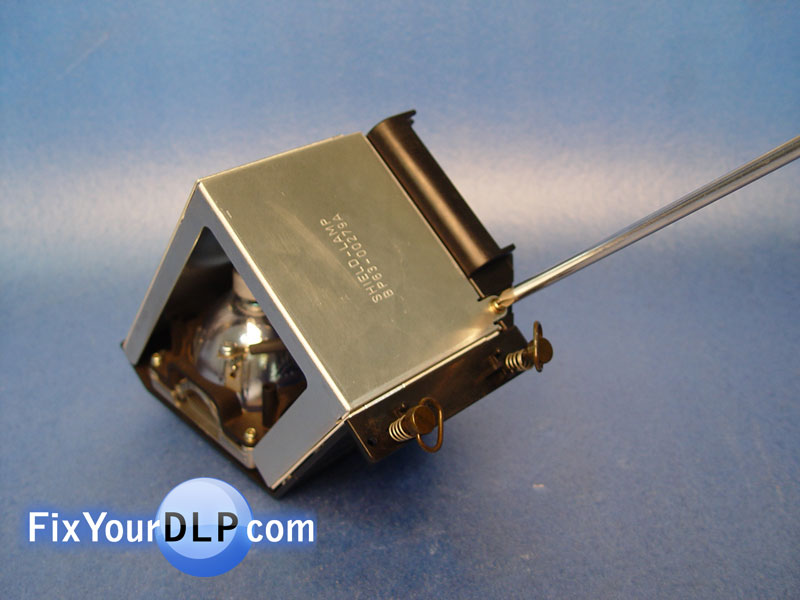

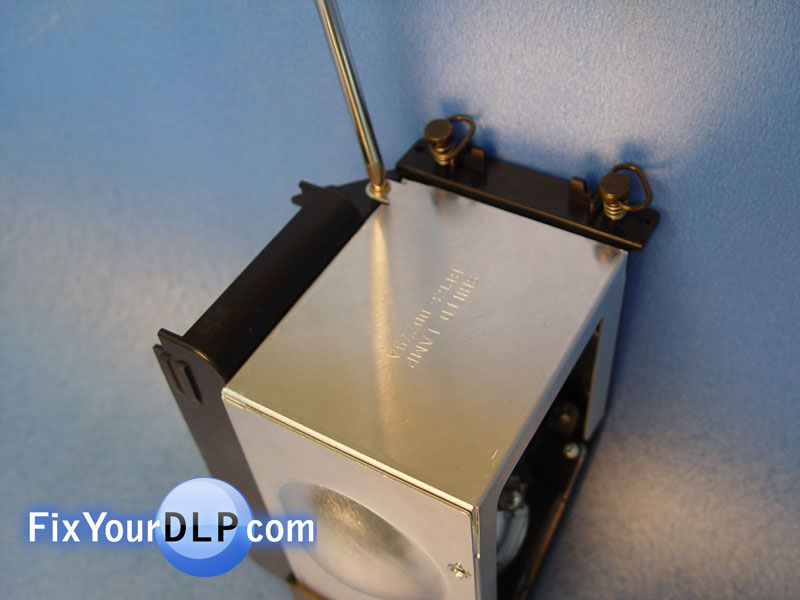

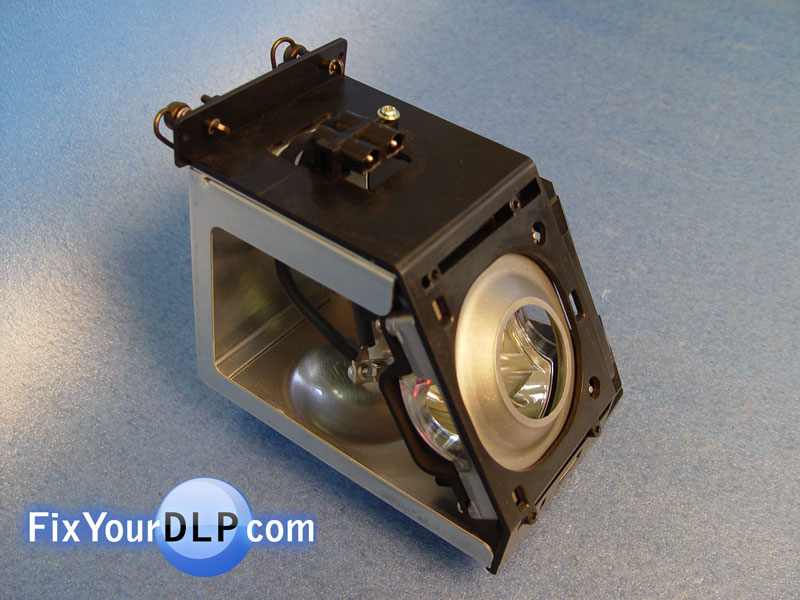

	SAMSUNG BP96-01415A Lamp casing			1.- Begin turning the lamp enclosure and extract the screw that secures the metal lamp shield in place.

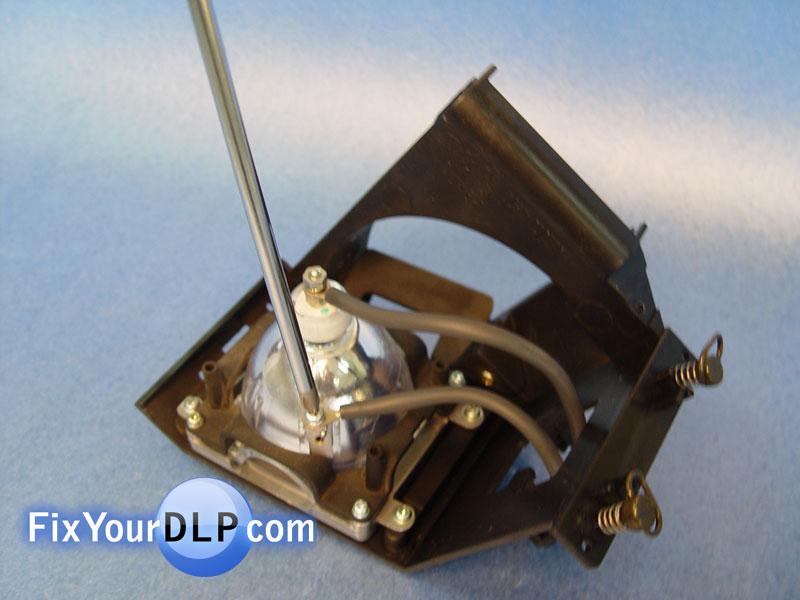

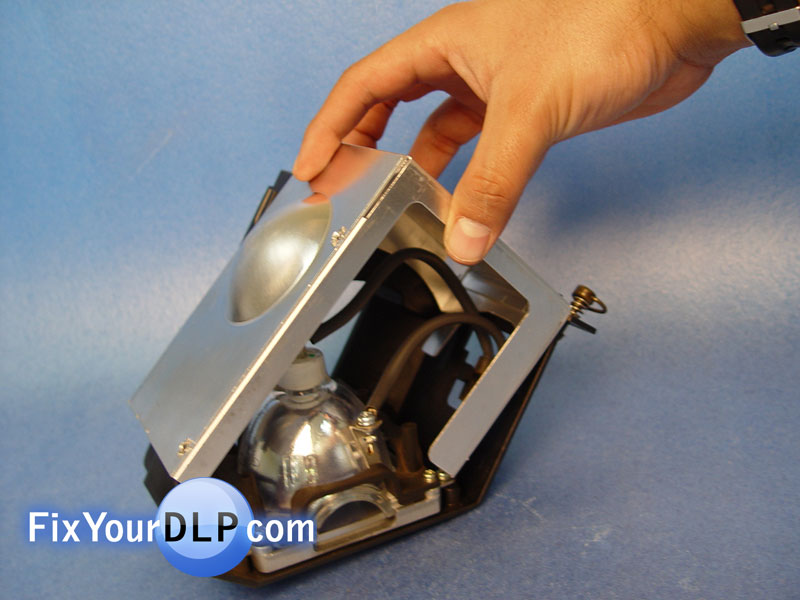

	2.- Dismount the lamp shield from the base of the enclosure by pulling it out carefully.			3.- Now uninstall the screw on the side of the bulb that holds in place one of the cable connector.

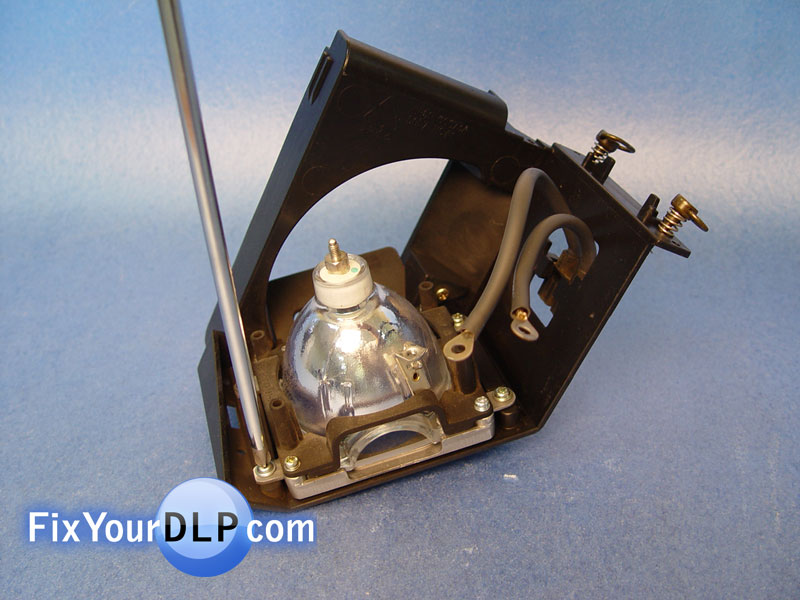

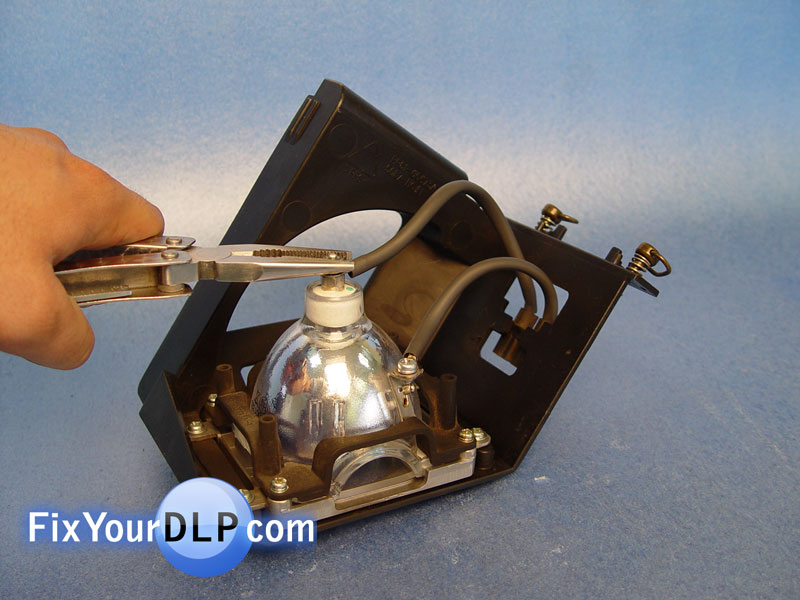

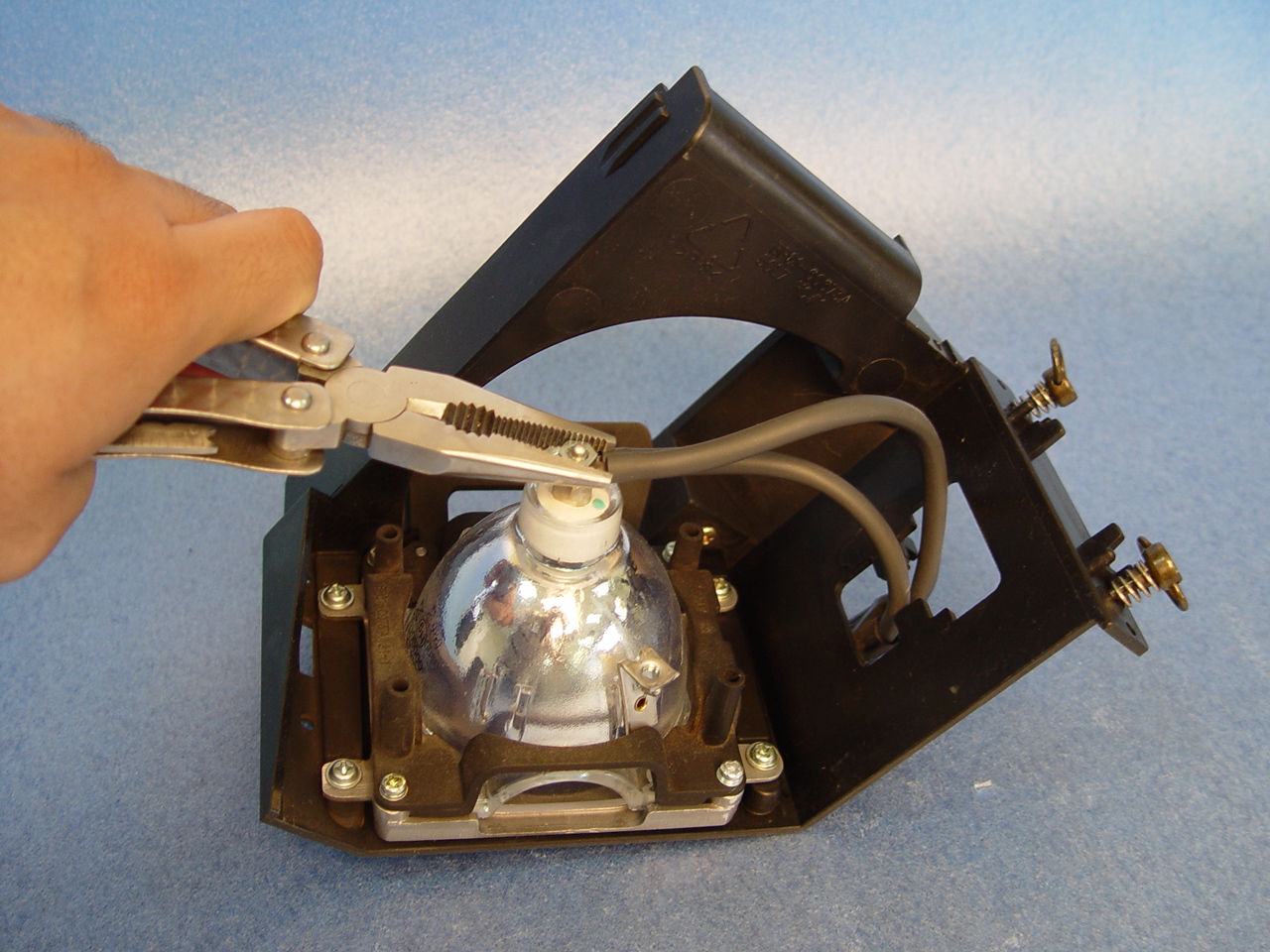

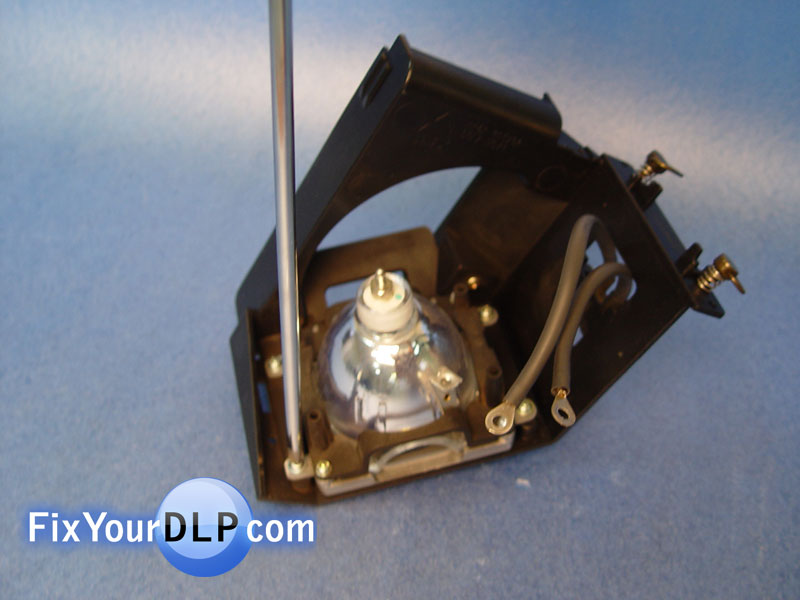

	4.- Take the pair of pliers to remove the nut on the top terminal of the lamp that will release the second cable.			5.- Take out the four screws that secure the plastic lamp holder on the base of the enclosure.

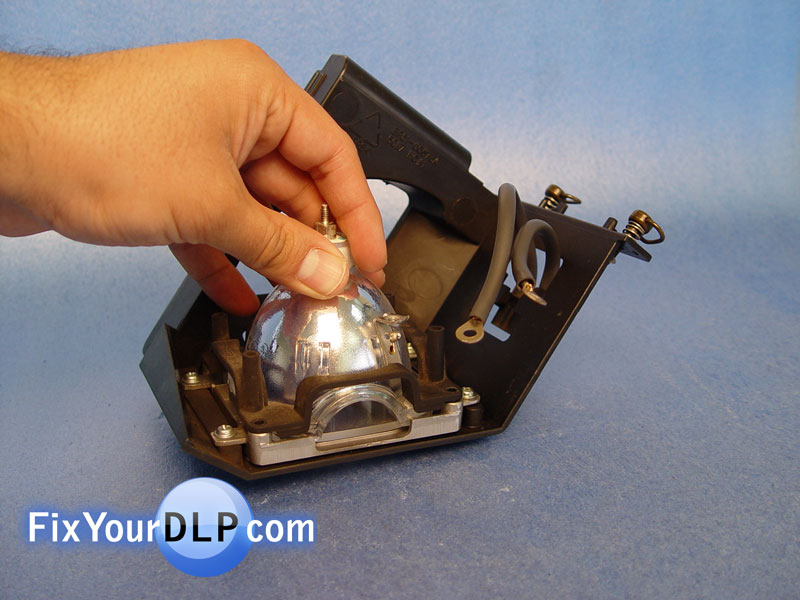

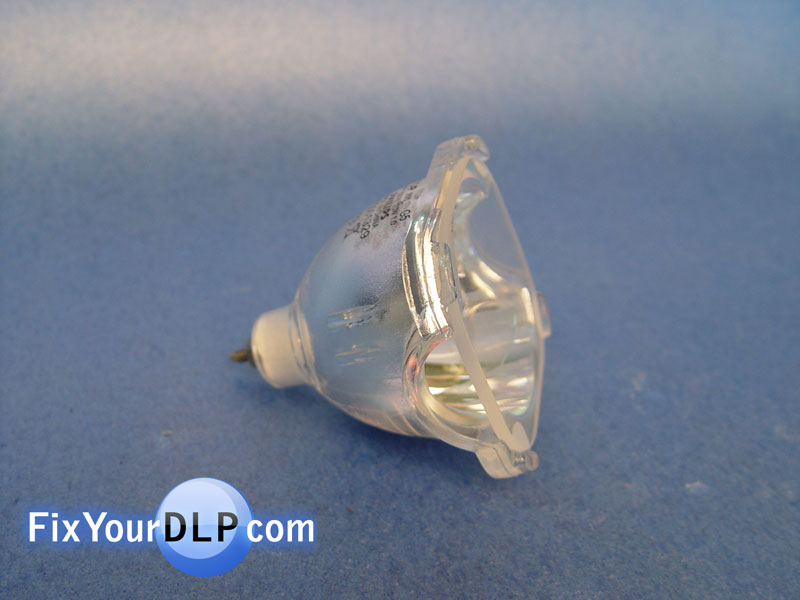

	6.- Withdraw the lamp out from the enclosure with the plastic holder.			7.- Bring out your new lamp that will look something like this.

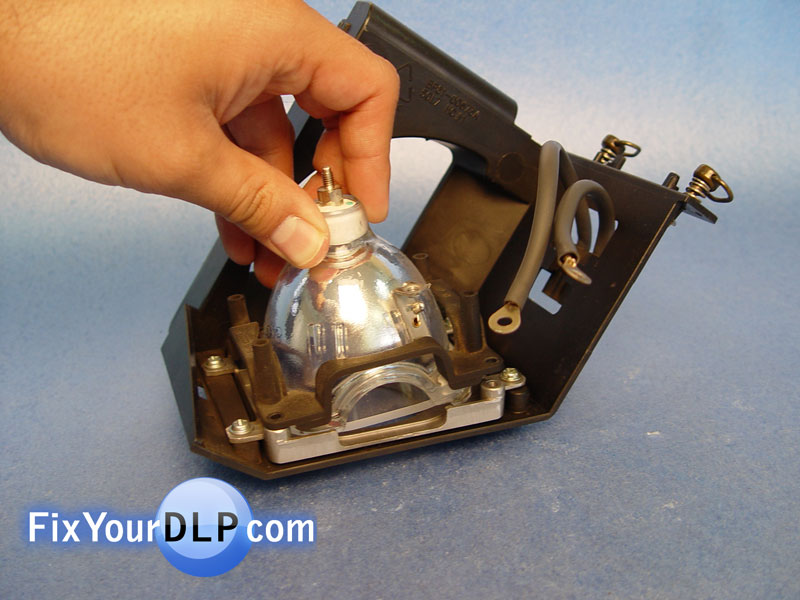

	8.- Reinsert the bulb inside the base of the enclosure with the lamp holder.			9.- Screw back the plastic lamp holder to the base of the enclosure.

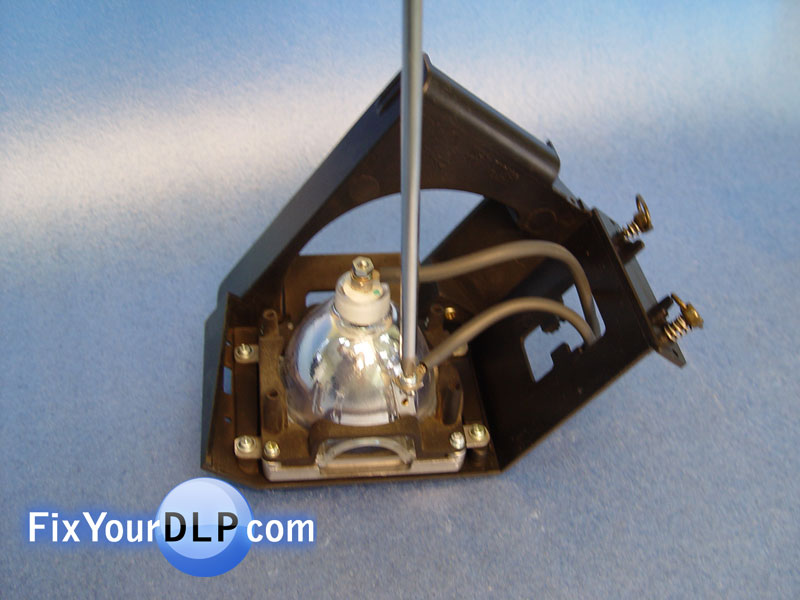

	A.-Reinstall the nut on the top terminal of the bulb to conjoin the cable to the lamp.			B.- Place the second cable connector on the side terminal and secure it with its respective screw.
	C.-Reintroduce the lamp shield on the enclosure.			D.- Secure it with the last screw on the side of the lamp shield.
	E.- Congratulations! Your lamp has been replaced.

IMPORTANT: After installing the replacement bulb, you should wipe it with a clean cloth to avoid any dirt or oil. Our hands are naturally oily…this could reduce considerably the life span of the new lamp.
