Samsung DLP Lamp BP96-01472A How-To Replacement Guide

Click below to buy this lamp now:

Lowest Prices Anywhere!

Compatible TV Models: HLS4266W, HLS5086WX/XAA, HLS5686WX/XAA, HLS6186WX/XAA, HLS4266WX, HLS5087, HLS5687W, HLS6187W, HLS4266WX/XAA, HLS5087W, HLS5687WX, HLS6187WX, HLS4666W, HLS5087WX, HLS5687WXXAA, HLS6187WX/XAA, HLS4666WX, HLS5087WX/XAA, HLS5688W, HLS6188W, HLS4666WXXAA, HLS5088W, HLS5688WX, HLS6188WX, HLS5065W, HLS5088WX, HLS5688WX/XAA, HLS6188WX/XAA, HLS5065WX, HLS5088WX/XAA, HLS6165WX, HLS6767W, HLS5065WX/XAA, HLS5666WXXAC, HLS6165WX/XAA, HLS6767WX, HLS5066WX, HLS5686CX/XAA, HLS6167WS, HLS6767WX/XAA, HLS5086W, HLS5686W, HLS6167WX/XAA, HLS7178, HLS5086WX, HLS5686WX, HLS6186W, HLS7178WX/XAA, HLT5055WX/XAC, HLT6756WX/XAA, PT50DL24X/SMS, RPT50V24DX/SMS, HLT6156WX/XAA, HLT7288WXXAA, PT61DL34X/SMS.

Assembly part numbers: BP63-00670A, BP61-01195A, 784020801, 6019.

NORMAL DISCLAIMER:
— Do NOT purchase generic brand lamps such as LTI, APO or third-party manufacturers such as OSRAM. These lamps were NOT engineered with and for your TV…only your Philips lamp has been engineered to work flawlessly and output the best possible color. Above that, it just doesn’t make sense to choose an aftermarket lamp for a $5-$10 difference (and in many cases they are more expensive!!).

Be a smart consumer and shop around, do your research! Discount-Merchant.com promises to be the low price leader in all Projection Lamps they carry…if this is not true, let us know and we’ll fix it!

Tools Required: 1 Philips screwdriver, 1 Pair of Pliers, & A new lamp.

Time Required: About 15 minutes.

Abstract: This guide is being published to show how easy it is to replace your original Samsung BP96-01472A Lamp.

NOTE: We recommend you use latex gloves when handling the new bul. to avoid any dirt or oil. Our hands are naturally oily…The oil residue from our hands can cause premature failure of the lamp if the front side of the lamp is not wiped down after the installation. It doesn’t hurt to do a final wipe with a clean, non-abrasive, lint-free cloth before reinstalling your lamp…

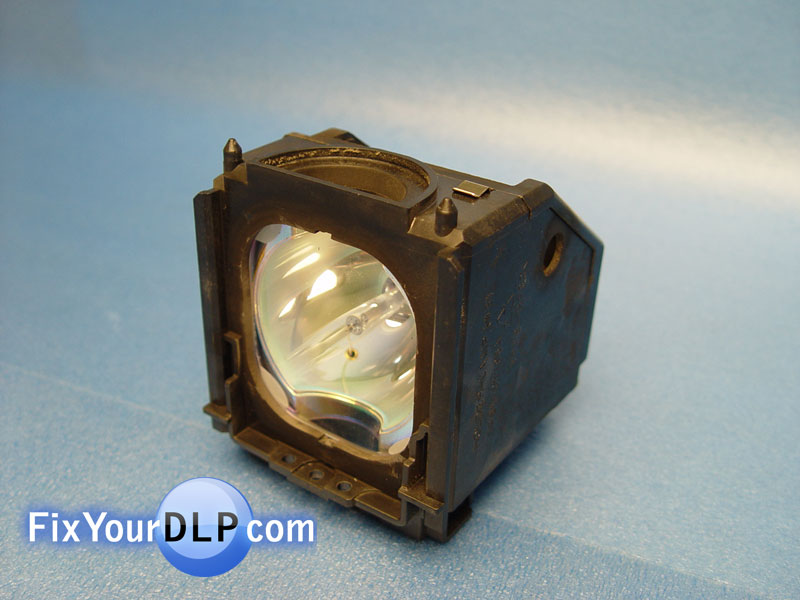

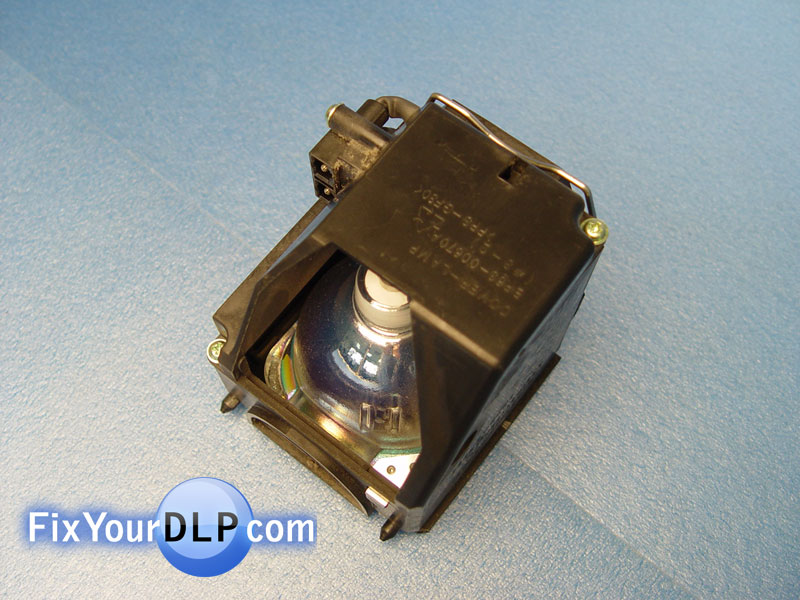

	Samsung BP96-01472A Lamp casing			1.- On the top of the enclosure there are two screws holding the lamp cover.

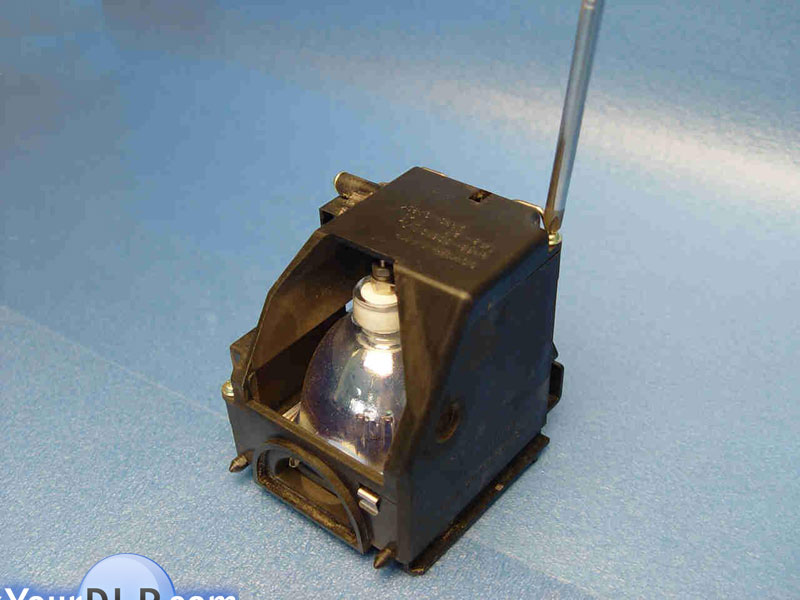

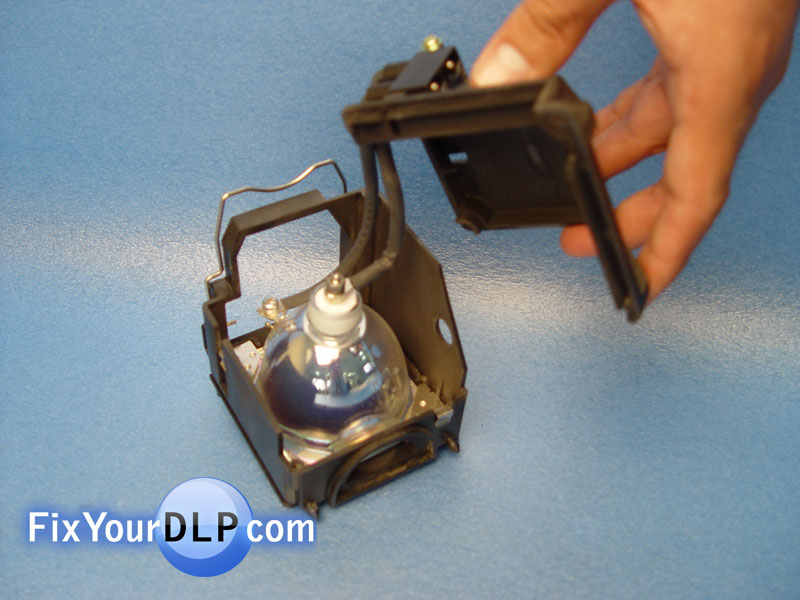

	2.- Uninstall them using a Philips screwdriver.			3.- Remove the lamp cover, so it will look like this.

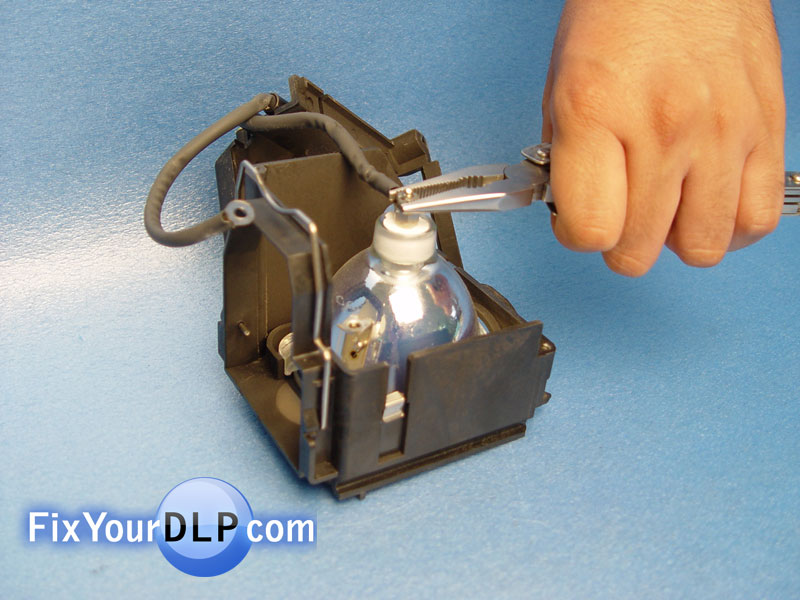

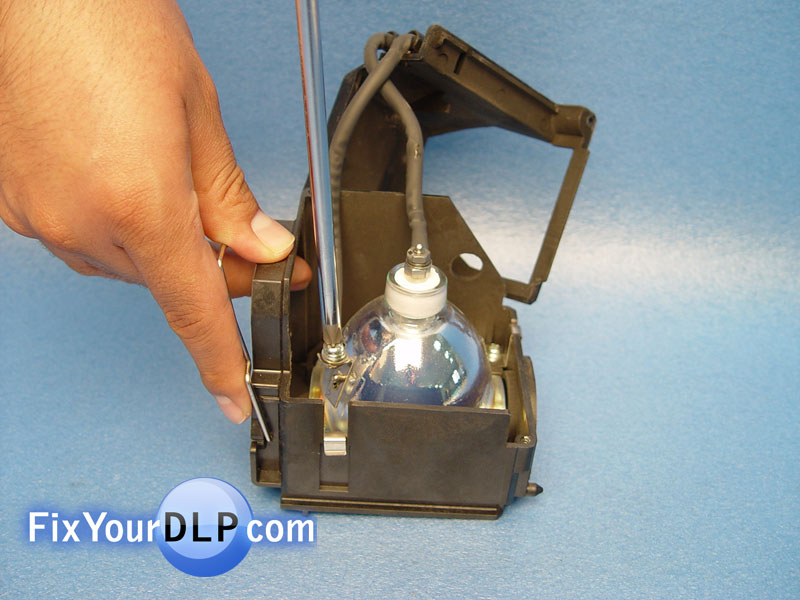

	4.- Disconnect the cable connected to the side of the lamp using your Philips screwdriver.			5.- Unscrew the nut on the top of the lamp and remove the cable, using a pair of pliers.

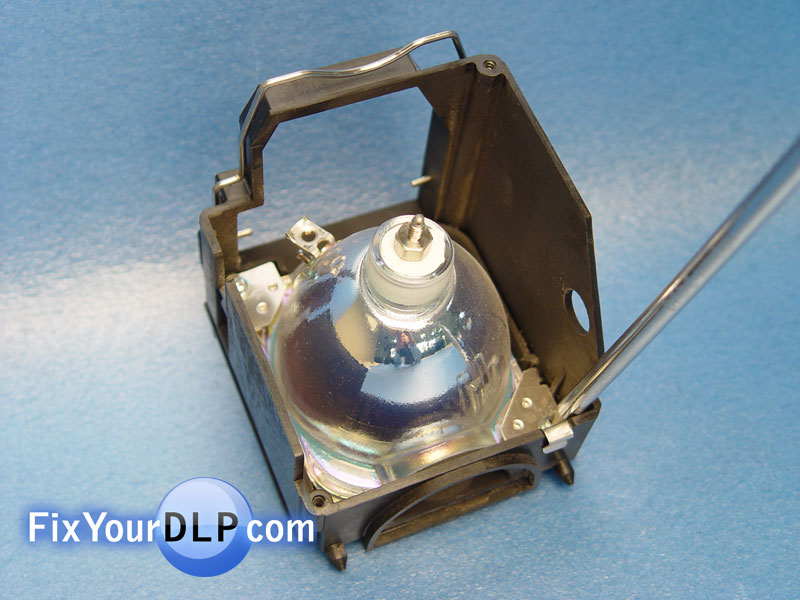

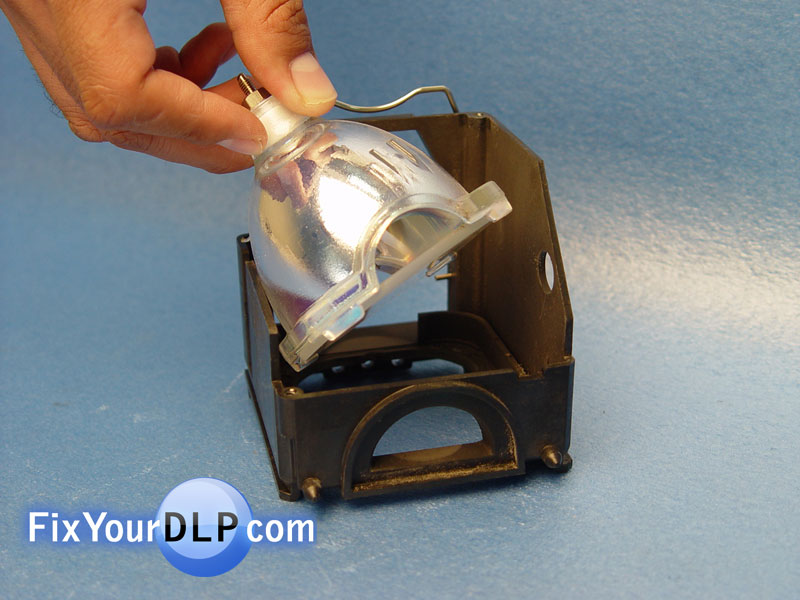

	6.- There are two metal holders at the bottom of the lamp, remove the screw holding them and uninstall the metal holders.			7.- Now you can take out your old bulb from the enclosure, by pulling out.

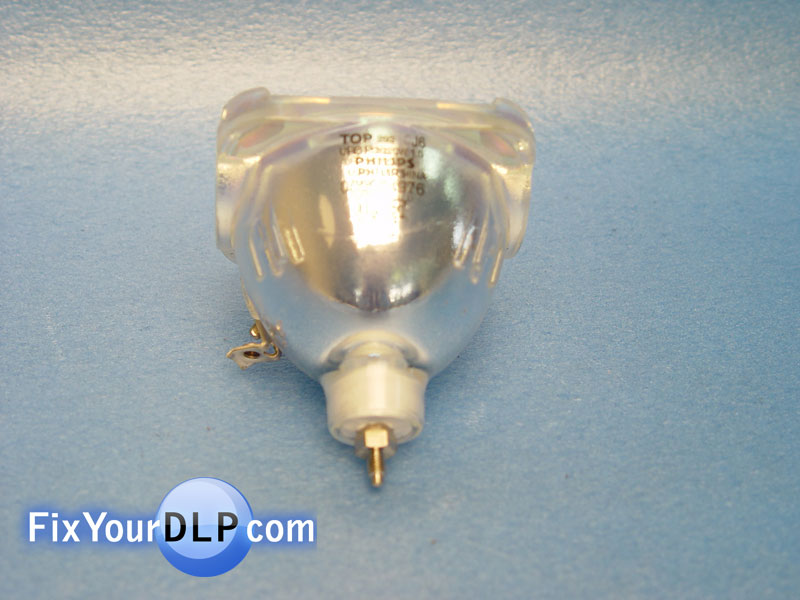

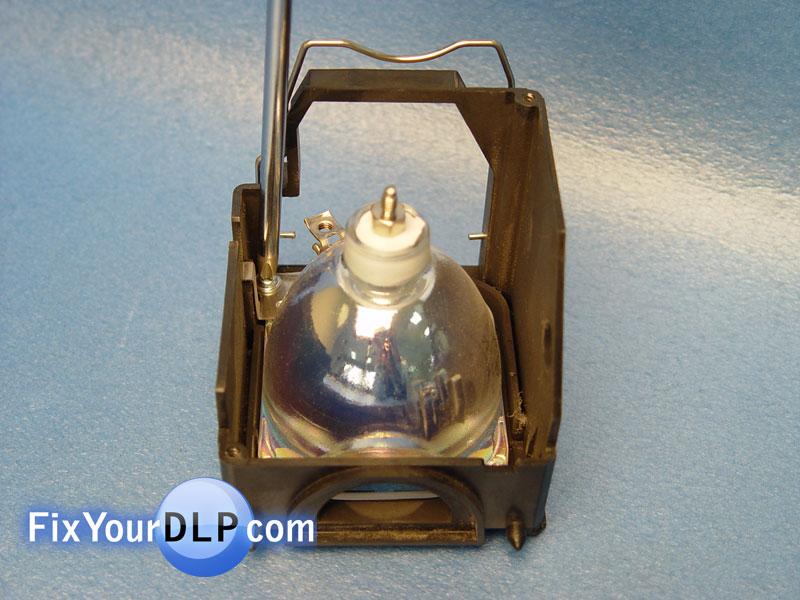

	A.- Take out your new Philips E22 UHP 132W/120W 1.0 lamp.			B.- Place your new Philips E22 UHP 132W/120W 1.0 lamp into the enclosure

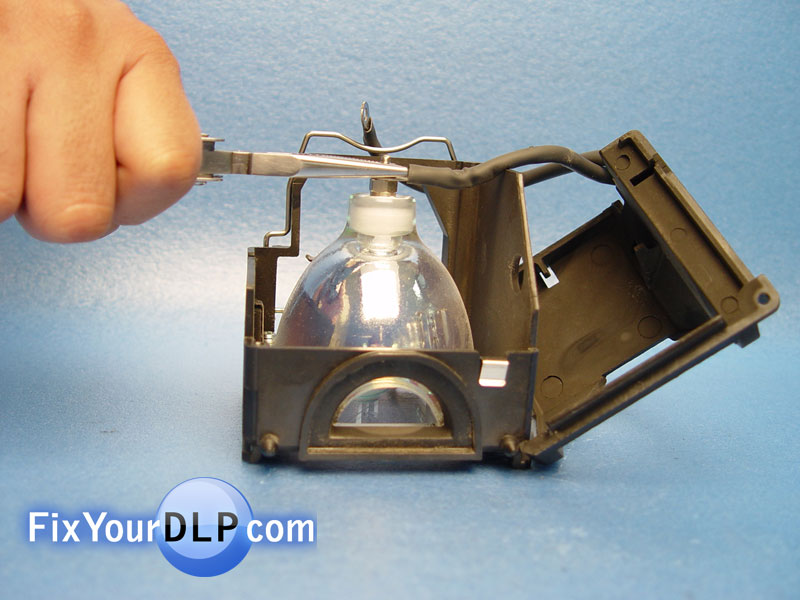

	C.- Place back the metal holders to the bottom of the lamp and secure them with the screws.			D.- Reconnect the cable to the top of the lamp by tightening the nut.

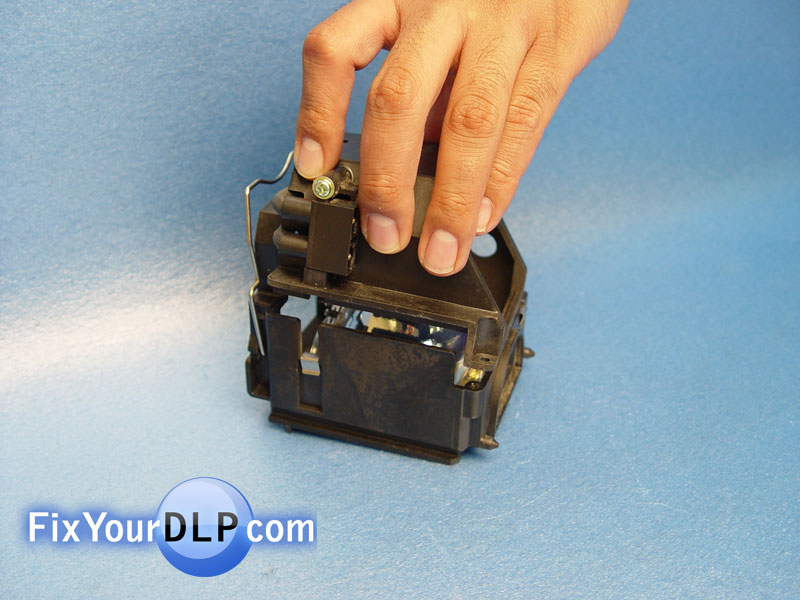

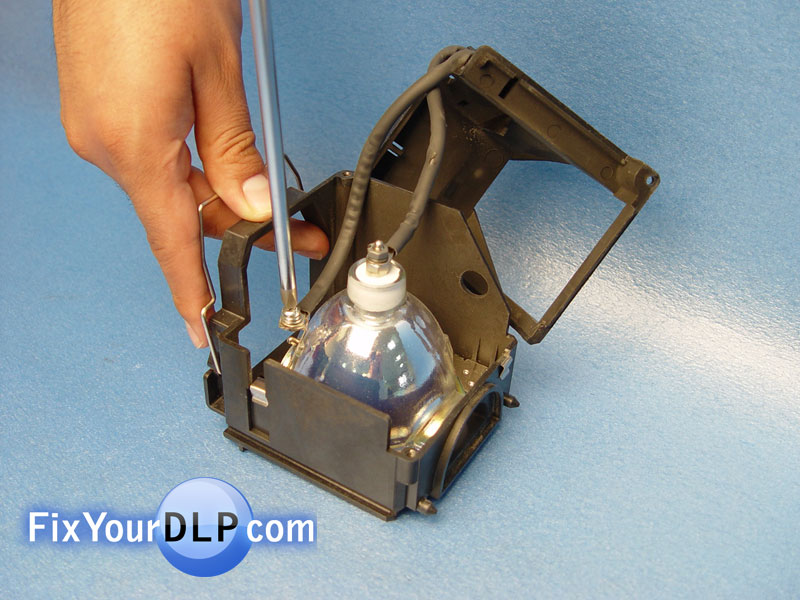

	E.- Connect the cable on the side of the lamp using the screw to hold it.			F.- Place back the lamp cover to its original position.

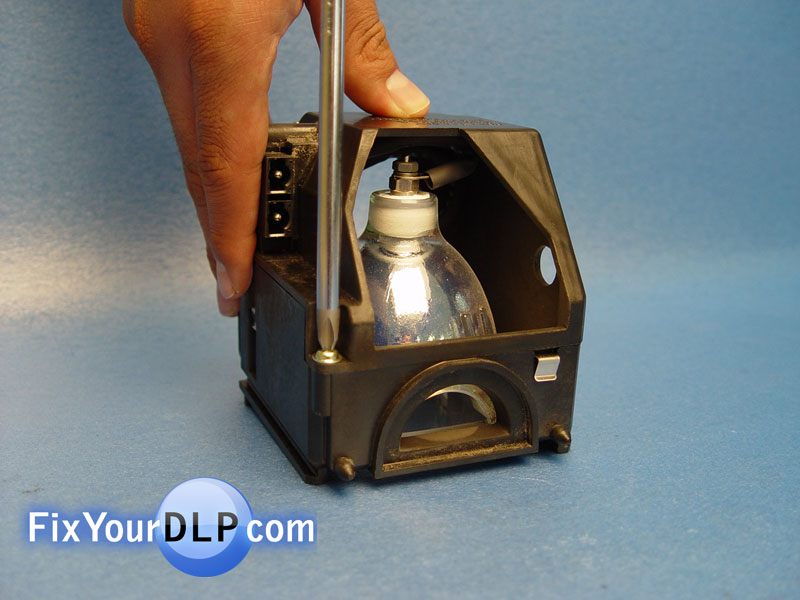

	G.- Secure it with the two screws using a Philips screwdriver.			H.- And we finished, Congratulations!





IMPORTANT: After installing the replacement bulb, you should wipe it with a clean cloth to avoid any dirt or oil. Our hands are naturally oily… this could reduce considerably the life span of the new lamp.
