Sony XL-2200 How To Guide Replacement DLP TV Lamp Guide

Click below to buy this lamp now:

Lowest Prices Anywhere!

Compatible TV Models: KDF55WF655 ,KDF60WE655 ,KDF-60XS955 ,KDFE60A20 ,KDF-55XS955 ,KDF-60WF655 ,KDFE55A20.

Assembly part numbers: 252.

NORMAL DISCLAIMER:
— Do NOT purchase generic brand lamps such as LTI, APO or third-party manufacturers such as OSRAM.

These lamps were NOT engineered with and for your TV…only your Philips lamp has been engineered to work flawlessly and output the best possible color. Above that, it just doesn’t make sense to choose an aftermarket lamp for a $5-$10 difference (and in many cases they are more expensive!!). Be a smart consumer and do your research! Discount-Merchant.com promises to be the low price leader in all Projection TV Lamps they carry…if this is not true, let us know and we’ll fix it!

Tools Required: Standard Philips or Flathead screwdriver, Pair of Pliers, A new lamp.

Time Required: About 15 minutes.

Abstract: This guide is being published to show how easy it is to replace your original Sony XL-2200 Lamp.

NOTE: We recommend you to use latex gloves when handling the new bub, to avoid any dirt or oil. Our hands are naturally oily…The oil residue from our hands can cause premature failure of the lamp if the front side of the lamp is not wiped down after the installation. It doesn’t hurt to do a final wipe with a clean, non-abrasive, lint-free cloth before reinstalling your lamp…

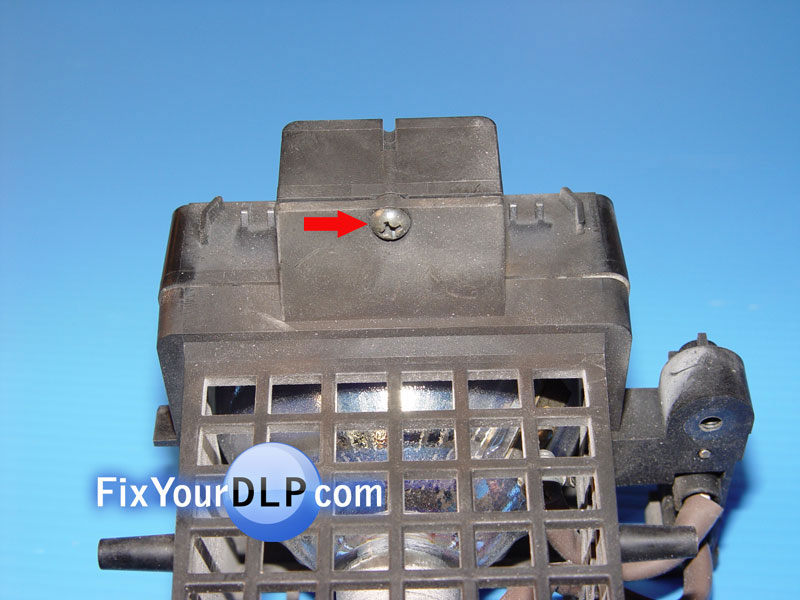

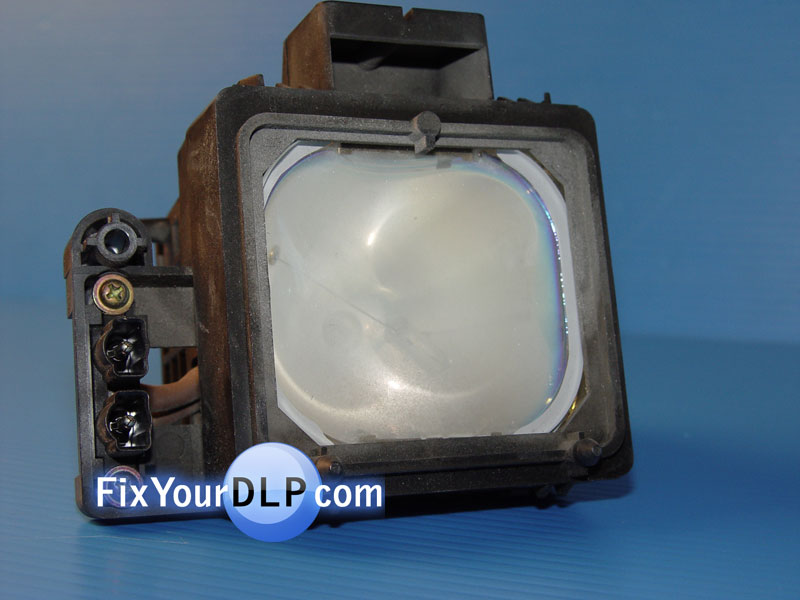

	Sony XL-2200U Lamp casing			1.- Let’s start by remove two screws adjacent to the power connector.

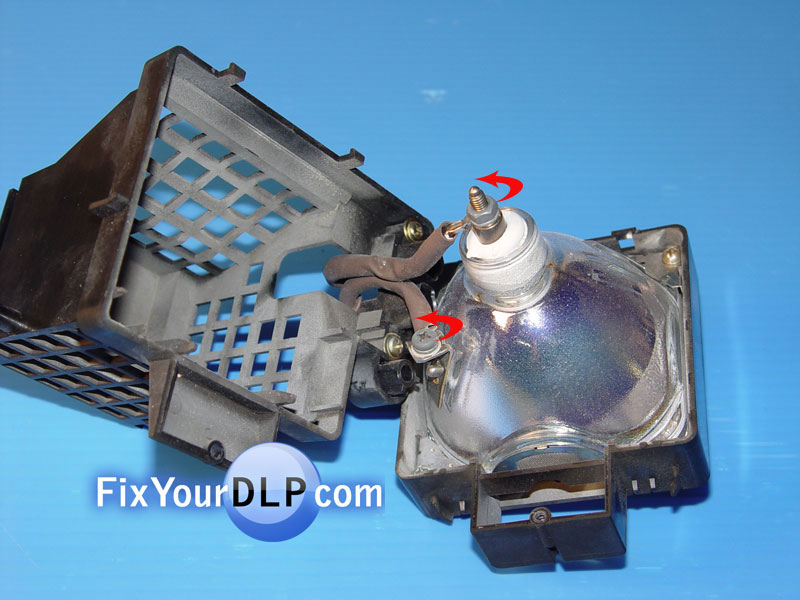

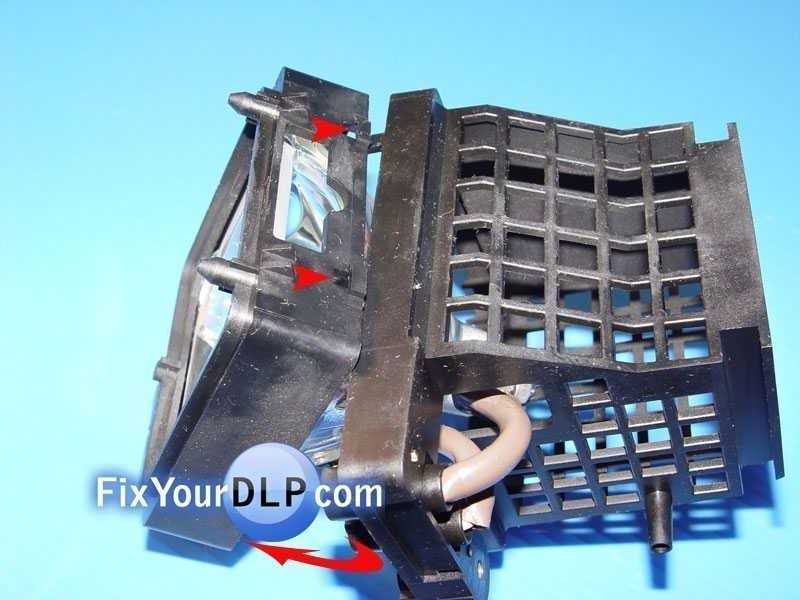

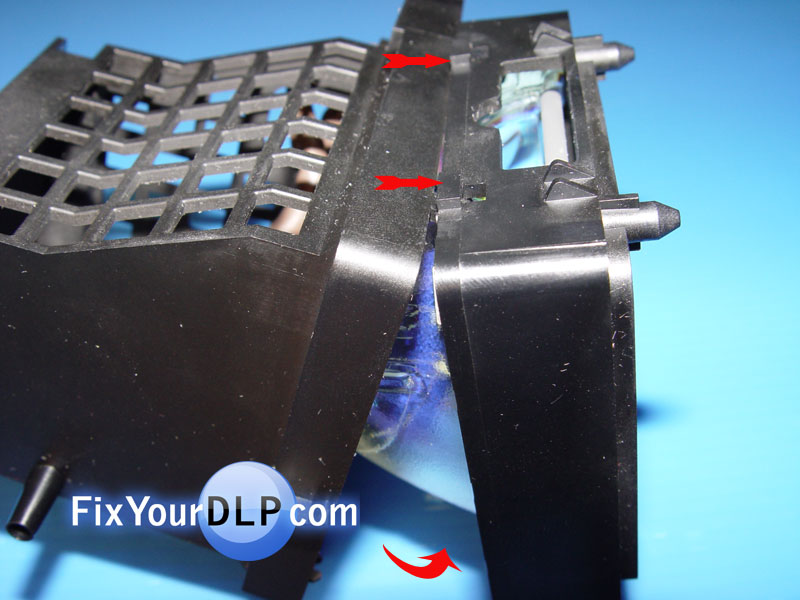

	2.- Separate both front lamp base from the back lamp casing by pressing on the security clips.			3.-Disconnect the two cables attached to the bulb, the top one using you pliers and the one on the side using your screw driver.

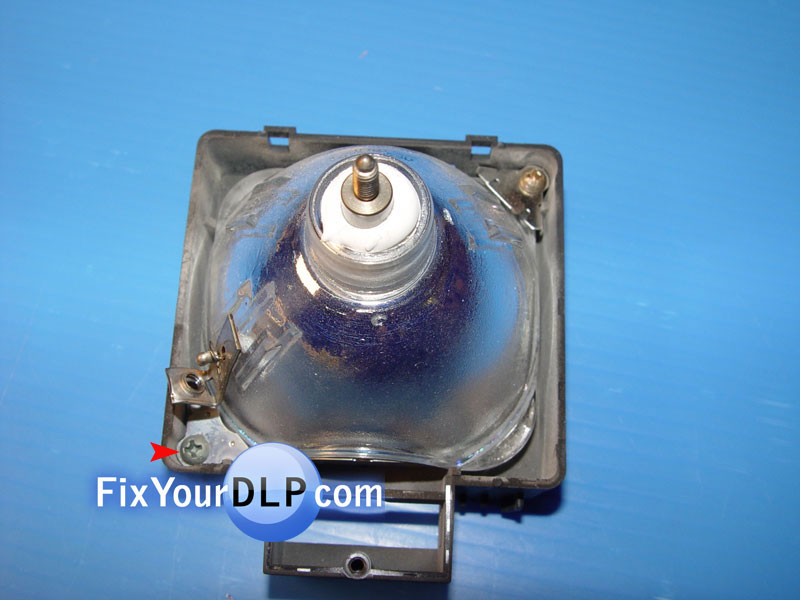

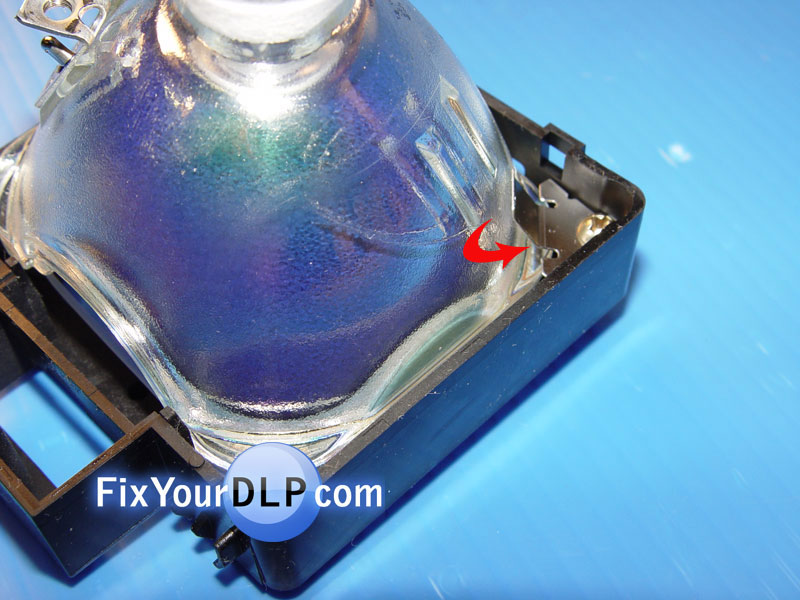

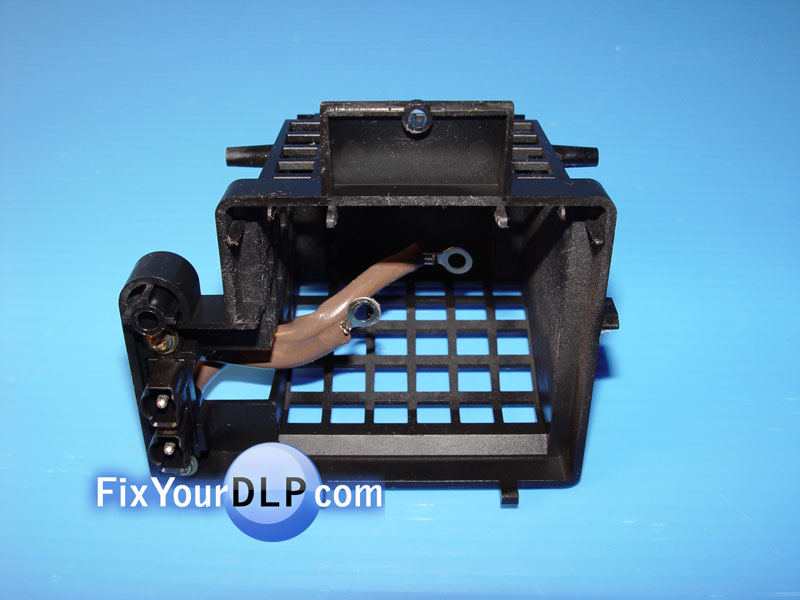

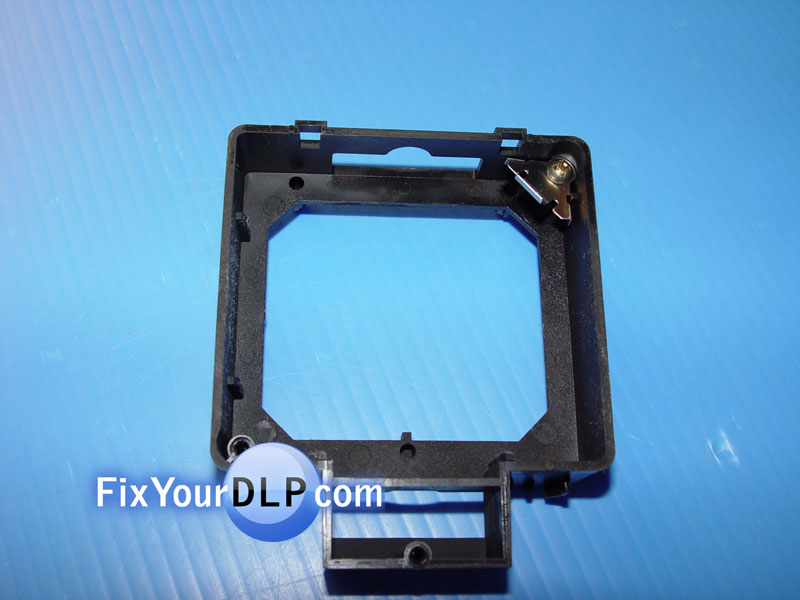

	4.- Now that the lamp base is free from the back casing, you’ll notice two clips that secure the bulb in place.			5.- Remove one of them and slip the lamp buy the side to avoid the other screw.

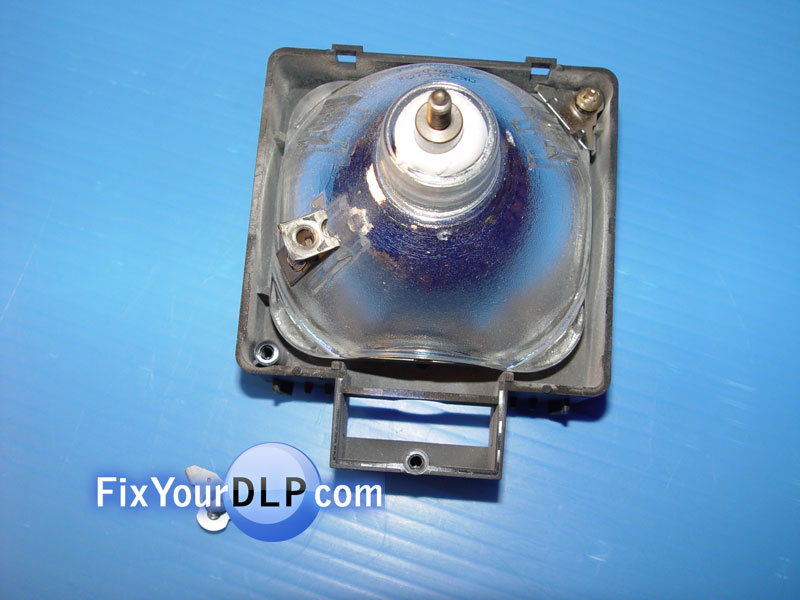

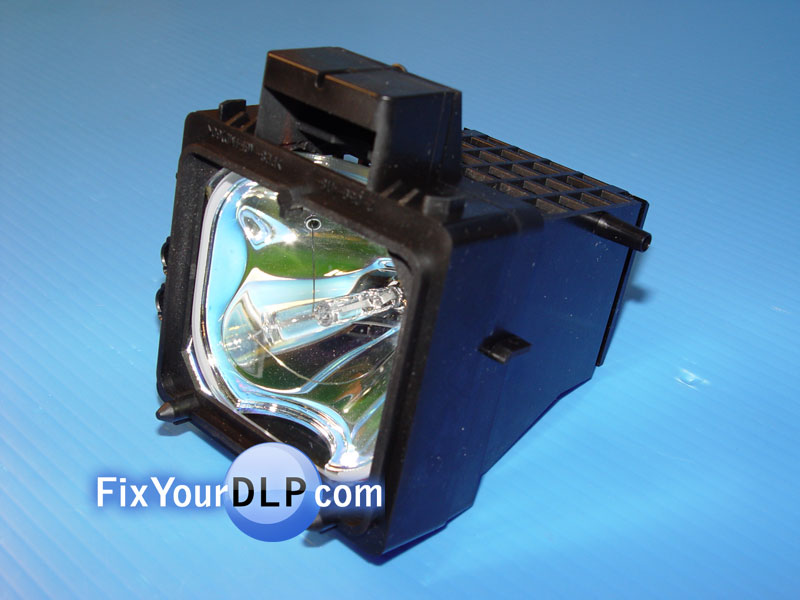

	6.- After the bulb base is empty ready your new lamp to complete the swap.			7.-From the side, take out the lamp out along with the connector.
	8.-Take the back casing to reconnect it with the front.			9.- Reinsert the two screws, one on the security clip and the other one on the side of your new lamp.

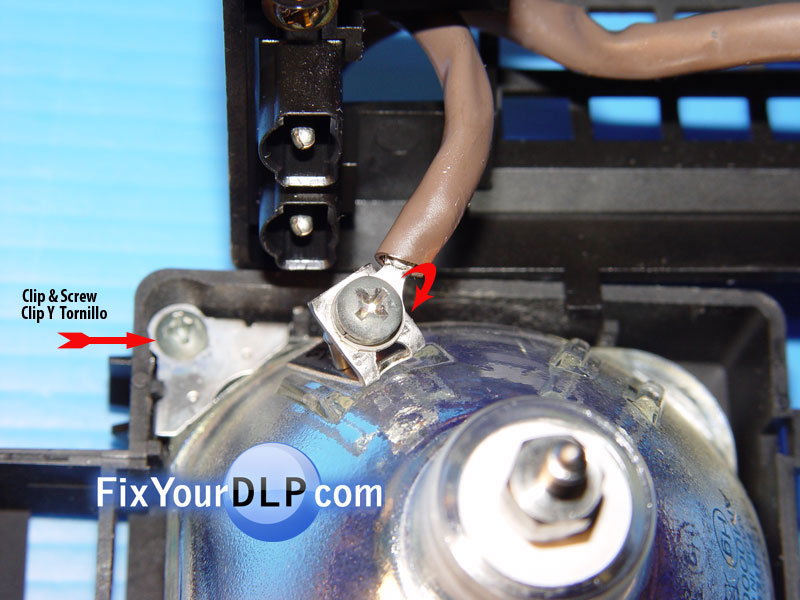

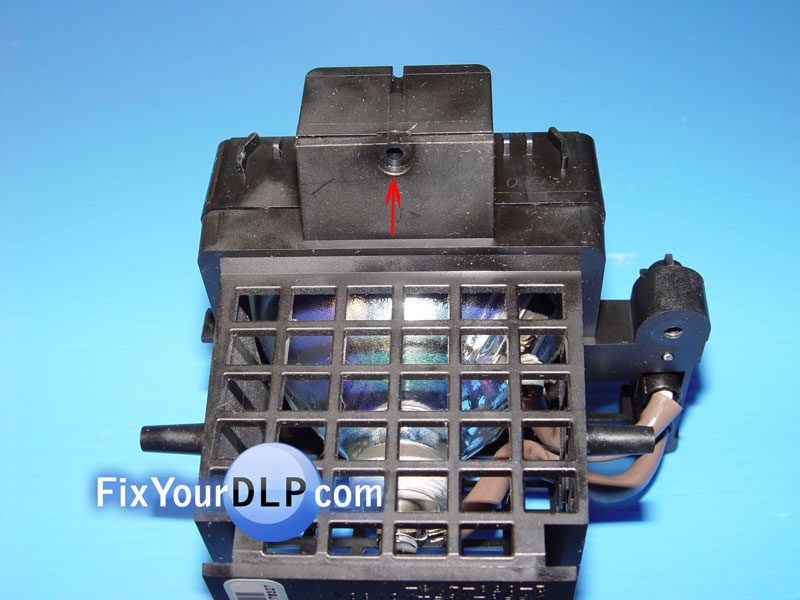

	A.- Now place the nut on the top of the lamp to secure the last cable.			B.-Reconnect both front and back housing pieces until you hear the clicking sound of the clips.
	C.-Finaly place the last screw on the side of the casing to hold both pieces together.			D.-And after 15 minutes or less you’re done.

IMPORTANT: After installing the replacement bulb, you should wipe it with a clean cloth to avoid any dirt or oil. Our hands are naturally oily…this could reduce considerably the life span of the new lamp.
