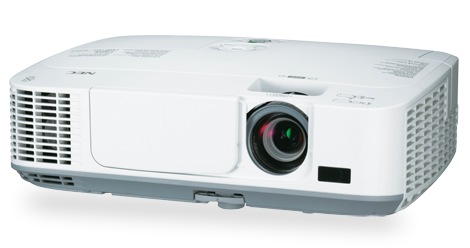

NEC NP M271X projector lamp replacement

Follow this guide to install a new NEC NP M271X projector lamp

When the NEC NP M271X projector lamp has reached its end of life, the LAMP INDICATOR will blink red. Shortly afterwards message LAMP HAS REACHED THE END OF ITS USABLE LIFE. PLEASE REPLACE THE LAMP AND FILTER will appear on the screen.

Look for the seal of approval

Be sure the purchase an authentic NEC NP M271X projector lamp. Although generic lamps seem like a bargain,they actually have a much shorter lamp life than original lamps. Unauthorized copy cat manufacturers don’t have access to the proper materials and often use toxic and carcinogenic substitutes. They are also unable to properly calibrate these generic lamps so generic often end up damaging the sophisticated electronics in your NEC NP M271X projector. Since they are unstable, generics are also prone to explosions. Your projector warranty will be void if a generic is installed. Go with an authentic.

Find this lamp sold on Amazon by these authorized dealers:

• Lutema for NEC NP15LP Replacement DLP/LCD Cinema Projector Lamp – Philips Inside
• NP15LP NEC NP15LP Projector Lamp
• NP15LP – Lamp With Housing For Nec NP-M300X, NP-M260X, M300X, M260X, M260W, NP-M260W, NP-M230X, M260XSG, M260XS, M260WS, M230X Projectors
• NP15LP – Lamp With Housing For Nec NP-M300X, NP-M260X, M300X, M260X, M260W, NP-M260W, NP-M230X, M260XSG, M260XS, M260WS, M230X Projectors

End of life signs

The end of life message about replacing the lamp is displayed for one minute when the projector is turned on and when the POWER button or remote control is pressed. Remove the message by pressing any button on the projector or remote control.

The progress indicator shows the percentage of remaining bulb life. When the lamp usage reaches 0, the Lamp Life REMAINING starts a count down from 100 hours. When the count down reaches 0, the projector will turn off and not turn on.

Changing the NEC NP15LP lamp

Follow these important safety instructions before installing the new lamp

• turn off the NEC NP M271X projector.
• unplug the projector from its power source.
• unplug the power cable.
• wait until the projector is cool to the touch to avoid getting burned.

Loosen the NEC NP M271X lamp cover screw.

Push and slide the lamp cover off

Loosen the two screws holding the NEC NP15LP lamp in place. (The screws will not come out only loosen.) Remove the lamp by holding the indent and pulling up.

NOTE: Your NEC NP15LP lamp should be properly recycled. These lamps contain mercury and can’t be placed into common garbage.

Install a new lamp housing into the NP M271X projector, gently pressing the lamp housing into the socket. Take care not to touch the actual bulb as your finger prints can leave oil marks that burn black marks onto the bulb.

Push the top center on the lamp to secure it. Tighten the screw on the lamp.

Reattach the NEC NP M271X lamp cover by sliding the cover until it snaps into place. Tighten the screw on the lamp cover.

Replacing the filters

There are four filters in the NEC NP M271X projector:

• Honeycomb hard filter – large and small
• Accordion soft filter — large and small

Replace all four filters at the same time. Before replacing the filters wipe off any dust and dirt that came loose from the old filters. NOTE: The filters are made with two different types of material in the membrane. Both perform the same.

Push the catch to release the filter and gently pull it out.

The filter cover is fixed at six separate points in the projector. Bow the filter cover by pushing it slightly until it releases.

Remove the dark sponge filter and clean the filter unit and cover. Attach the new non-woven white material filters.

• Filter unit: Attach two honeycomb hard filters to the NEC NP-M271x filter unit.
• Filter cover: Attach the two accordion soft filters to the filter cover. Be sure to align the accordion slits with the protrusions of the filter cover.

Attach the filter cover back to the filter unit. Align the filter until with the filter cover and push the protrusions into place.

Make sure all the six mounting points are aligned properly.

Insert the two catches of the top of the filter into the groove of the cabinet. Push the filter until it clicks into place.

Reset the lamp timer

Once the NEC NP15LP lamp and NEC NP M271X filter have both been replaced you will need to reset the timer for both. You want the projector to be able to accurately track the lamp life.

Clear usage hours and reset hours

• Plug in the power cord into the wall outlet.
• Turn on the projector.
• From the MENU select RESET.
• Choose CLEAR LAMP HOURS.
• A confirmation message appears.
• Select YES.

Reset the filter hours:

• Scroll up to CLEAR Filter HOURS.
• A second submenu will appear.
• Select YES. Press the ENTER button.

Extending the life of the NEC NP15LP lamp

Get your newly installed NEC NP15LP lamp will last longer by choosing the ECO option. The ECO MODE increases lamp life by lowering the power consumption. There are three modes to choose from on the NEC NP M271X projector:

• Auto Mode: 4000 hours
• Normal: 5000 hours
• Eco ModeL 8000 hours

Learn more tips to extend the life of the NEC NP15LP lamp lamp.
