3 Steps to a new Epson EX7200 projector lamp

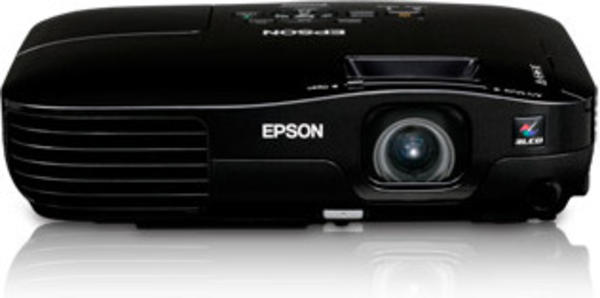

-ex5200_projector_epson_ELPLP58_projector_lampReplacing the Epson EX7200 projector lamp is not difficult. This 3-step guide shows you how.

Step 1: Invest in authentic

You may be tempted to buy a cheaper generic Epson EX7200 projector lamp in order to save money. While these knock-off lamps appear to be a bargain, they will actually end up costing you more money in the long run since they a shorter life than original lamps and are prone to explosions. Since they are often created with created with toxic substitute parts they pose a significatnt health hazard and can damage the sensitive optics in your Epson EX7200 projector.

Do yourself a favor and buy an authentic Epson ELPLP58 projector lamp from a recognized OEM dealer. When buying look for the seal of approval. Learn to spot copycat lamps posing as authentic lamps.Keep track of projector lamp life.

Find this lamp on Amazon sold by these authorized dealers:

Step 2: Know the end of warning signs

Epson_EX7200_projector_Epson_ELPLP58_check_projector_lamp_hoursWhen the Epson EX57200 projector lamp is reaching end of life the projector lamp indicator will flash orange and continue flashing until the projector lamp has been changed.

Epson_EX7200_projector_Epson_ELPLP58_projector_lamp_lamp_warningThe message Replace the lamp also appears on the screen. You may also the image on screen gets darker or starts deteriorate altogether. In order to maintain projector brightness and image quality, replace with a new Epson LPLP58  projector lamp as soon as possible.

The Epson EX7200 projector lamp can last for close to 4,000 hours when the power consumption is set to NORMAL and up to 5,000 hours if the ECO option is used.

You can check the hours left on the ELPLP58 projector lamp from the INFO Menu access off the Main Menu.

Step 3: Installing a new ELPLP58 projector lamp

Before replacing the ELPLP58 projector lamp follow these important safety rules:

  1. Always unplug the power cord on the Epson EX7200 projector before replacing the projector lamp.
  2. This projector operates using high temperature. Wait at least 60 minutes before replacing the lamp so you don’t run the risk of getting burned.
  3. Never touch the bare projector lamp bulb as the oil from your fingers will burn black marks onto the projector lamp when it heats up.
  4. Never operate the Epson EX7200 projector with the projector lamp removed.


Remove the projector lamp cover screws and place to one side.

Epson_EX7200_projector_Epson_ELPLP58__remove_projector_lamp_screwsLoosen the two screws holding the Epson ELPLP58  projector lamp in place (you can’t remove them).


Gently lift out the Epson LPLP58 projector lamp taking care not to bang it against the projector. NOTE: The LPLP58 projector lamp contains mercury and should not be thrown into regular garbage. Recycle this lamp!

Gently insert the new Epson LPLP58 projector lamp. Make sure it fits into the Epson EX7200 projector properly. (Check that it’s facing the right way.) Tighten the Epson LPLP58 projector lamp. You can know reset the lamp timer.

Reset the lamp timer


After you replace the lamp, you need to reset the Epson EX7200 projector lamp timer using the projector’s menu system.

  • Press the MENU button on the remote control or on the projector’s control panel. You see the main menu.
  • Select the RESET menu. Press ENTER.
  • Scroll down to select RESET LAMP HOURS. Press ENTER.
  • A prompt filed appears asking if you want to reset the lamp timer. Select YES. Press ENTER.
  • Press MENU to exit.

Longer life for the ELPLP58  projector lamp

Extend the life of the Epson ELPLP58 projector lamp with the following tips:

  • Set the Power Consumption to ECO option.
  • Clean the air filters regularly so the Epson EX7200 projector doesn’t overheat.
  • Make sure there is enough airflow around the projector.
  • Turn it off when it’s not in use.
  • Learn more: Top tips for extending DLP projector lamp life.
