3 Steps to a new BenQ PB7700 projector lamp

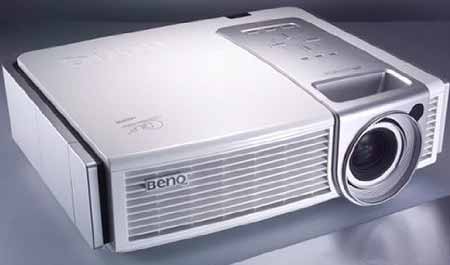

BenQ_-PB7700_projector_BenQ_59.J0C01.CG1_replacement_projector_lampChanging your BenQ PB7700 projector lamp is hard enough without unnecessary complications. Follow our 3-step guide for a smooth installation.

Step 1: Be prepared with the correct lamp

When BenQ PB7700 projector lamp is reaching end of life, you’ll see a warning message on screen. The lamp light on the projector panel will also light up red. Be sure to change the BenQ 59.J0C01.CG1 projector lamp immediately.

Avoid generic “compatible” lamps. You get what you pay for and in the case of generic lamps it’s usually a long list of problems:

Save yourself unnecessary headaches and buy authentic from a recognized dealer. You’ll be getting a far superior product with a replacement guarantee and tech support.

Buy this lamp on Amazon sold by these authorized dealers:



Step 2: Replacing the BenQ 59.J0C01.CG1 projector lamp

IMPORTANT NOTE: The BenQ PB7700 projector operates at an extremely high temperature. Let the projector cool for a least 45 minutes before replacing the BenQ 59.J0C01.CG1 projector lamp. The projector should be cool to the touch. Don’t rush it or you may end up with a nasty burn.

BenQ_PB7700 _lamp_cover_BenQ_59.J0C01.CG1_projector_lampBenQ_PB7700_projector_lamp_cover_BenQ_59.J0C01.CG1_projector_lamp

1. Turn the power off and disconnect the BenQ PB7700 projector from all power sources.

2. The BenQ PB7700 projector lamp door is on the left side. You may need to lift it up slightly to loosen the screws and remove the lamp cover.





BenQ_PB7700_projector_lamp_screw_BenQ_59.J0C01.CG1_projector_lamp3. Loosen the two screws that hold the BenQ 59.J0C01.CG1 projector lamp in place. A magnetic screw driver will make the whole process easier.

BenQ_PB7700_projector_lamp_out_BenQ_59.J0C01.CG1_projector_lamp4. Grab the BenQ 59.J0C01.CG1 projector lamp by the two side indentations and slowly pull the lamp out. Pulling out too quickly may cause the bulb to break. If this happens go to: What to do when your projector lamp explodes.



5. Don’t touch the inside of the BenQ PB7700 projector after the lamp is removed. The optical components are very sensitive and even the slightest movement can cause unevenness and distortion of the projected images.

NOTE: The BenQ 59.J0C01.CG1 projector lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamps! If you bought from an authentic manufacturer they will recycle the lamp for you at no extra cost (another reason to buy authentic lamps).

BenQ_PB7700_projector_cover_on_BenQ_59.J0C01.CG1_projector_lamp6. Slowly insert the new projector lamp, making sure it’s securely in place.

7. Tighten the screws on the projector lamp cage.

8. Reinstall the projector lamp cover. Tighten the side screw holding the lamp cover in place. Don’t over tighten the screws otherwise the lamp may not work properly.

9. Turn the power on and wait for the projector to warm up.

10. Reset the Lamp Timer.

Step 3: Reset the Lamp Timer

Never reset the lamp timer if the lamp has not been replaced as this could cause damage to your projector. Always reset the lamp time after changing the BenQ 59.J0C01.CG1 projector lamp so the BenQ PB7700 projector can accurately track end of life for the lamp.

To replace the lamp timer:

BenQ_PB7700_projector_reset_lamp_timer_BenQ_59.J0C01.CG1_projector_lamp

  • Press the MENU/EXIT button to turn the onscreen menu on.
  • Using the left or right arrow buttons scroll to SETUP. Press SOURCE ENTER.
  • Scroll to LAMP. Press SOURCE ENTER.
  • Scroll down to RESET LAMP TIMER. Press SOURCE ENTER.
  • The lamp timer will be reset to zero.



Make your newly installed BenQ 59.J0C01.CG1 lamp life last longer:

  • Keep your air filters clean to avoid overheating the projector.
  • Use the Lamp Power option on the BenQ PB7700 projector and set to Economic Mode to reduce the amount of power used but extend lamp life.
  • Learn more with Top tips for extending DLP projector lamp life.

Go green and recycle

BenQ_59.J0C01.CG1_replacement_bulb_projector_lamp



Looking for a less expensive but more environmentally friendly option? Watch our step-by-step video on replacing just the BenQ 59.J0C01.CG1 projector bulb instead of the entire lamp housing.
