Sony_KDS-50A2000Replace the Sony KDS-50A2000 TV Lamp using this guide

Don’t settle for anything but the best and be sure to an authentic Sony KDS-50A2000 TV. When buying look for the seal of approval — don’t get caught with a counterfeit lamp. They have shorter lamp and are more toxic due to the substitute materials used by counterfeit manufacturers. These lamps often don’t work properly with the sensitive electronics in your projector and are prone to explosions. Keep your projector working properly and invest in an authentic projector lamp.

Warning signs

Your Sony KDS-50A2000 TV lamp should last up to 8000 hours depending in usagfe and the environment it works in. It’s time to replace the TV lamp when the screen becomes darker, or if brightness starts to diminish gradually and the colors look wrong. A message will also appear on screen asking you to replace the lamp and the LAMP LED on the front of the TV starts blinking.

Find this lamp on Amazon sold by these authorized dealers:



Replacing the lamp

Before installations preparations:

  • Unplug the AC power cord on the KDS-50A2000 TV .
  • Your Sony KDS-50A2000 uses the Sony XL-5200 Replacement TV Lamp. Before installing the lamp, let the projector cool for at least 40 minutes. It should be cool to the touch. Don’t rush the cooling as these projectors operate using extremely high temperatures and you run the risk of a serious burn.
  • _Sony KDS-60A2000 TV_Sony XL-5200 Replacement TV Lamp Take the new Sony XL-5200 lamp out of the box.Do not touch the glass portion of the new lamp. Remove the outside lamp cover.Release the two clamps as shown in the illustration below.

remove lamp door-Sony KDS-60A2000 TV_Sony KDS-60A2000 TV_Sony XL-5200 Replacement TV Lamp

  • Remove the lamp door.
  • Turn the screw counterclockwise and slide the lever to the left.
  • Remove the door.

  • Pull out the Sony XL-5200 lamp. Hold the indented grooves on the top corners of the lampand pull the lamp straight out. If the lamp is hard to remove, pull the right side of the lamp for additional traction.
  • Do not shake the lamp. Vibration can damage the lamp or shorten its life.
  • Avoid touching the front glass of a new lamp.
  • NOTE: The Sony XL-5200 TV lamp contains mercury and should not be thrown into regular garbage. Recycle this lamp!



  • Put the new Sony XL-5200 lamp into its place.
  • Insert the new lamp by pressing the two parts firmly into.
  • Make sure the lamp is securely mounted into the compartment. Failure to do so may cause a fire or the screen to go dark.



Sony KDS-60A2000 TV

  • The lamp compartment should be properly tilted (see the illustration) in order for the installation to be aligned.
  • If the lamp is not securely reattached, the self-diagnostic function may be triggered and the POWER LED blinks three times. Re-insert the lamp if this happens.

  • Reattach the lamp door.
  • Replace the door by inserting the two tabs in the slot from the left side.
  • Slide the lever to the right and then turn the screw clockwise to secure the door.
  • replace door_ new lamp_Sony KDS-60A2000 TV .pngPut the outside lamp cover back in its place.
  • Replace the cover, inserting it from the left side.
  • Press the two tabs on the right side to secure the cover.

You are now ready to reset the TV lamp timer.

Resetting the lamp timer

Turn on the TV and set the Lamp Replacement option in the Setup settings. This setting is necessary to inform you when the next lamp replacement is needed. Until you set the Lamp Replacement option, a message announcing that the lamp is at the end of its life will appear every time you turn on the TV.

reset lamp timer_replace door_ new lamp_Sony KDS-60A2000TV



  • Press MENU.
  • Select Set up. Press enter
  • Scroll down to select Clock/Timers
  • Reset the lamp timer. Press enter.
  • To exit the Settings, press MENU.
Tagged with: , ,

MI Technologies offers some advice on projector lamps

MI Technologies runs the largest projector lamp recycling program in the USA so they see a lot of lamps.

They’ve noticed some  disturbing trends as projector bulbs get cheaper and margins deteriorate.

Here’s what to watch for as some lamp distributors get creative to get your money with sometimes an inferior product.

Scenario 1: Switching parts

You order and pay for original branded lamps, for example an OEM Epson. Instead the
manufacturer ships a lamp that’s a mixture of original branded/packaged lamps and more affordable
OEM original lamps in 3rd party housings. There is nothing wrong with a Philips or Osram OEM original bulb in a 3rd party plastic cage except when you are charged a higher price for original parts: screws, plastic cage, connectors.

The Solution: Always check packages whether they vary: Anonymous brown or Epson branded boxes. Don’t just trust the word of the authorized brand reseller

Scenario 2: Generics at OEM prices

Some resellers offer OEM at discounted prices but deliver generics in a fake box with fake stickers on the lamp. Again, there is nothing wrong buying generic lamps, especially if you’re on a budget, but you shouldn’t be paying OEM prices. Chinese generic bulbs with the Philips or Osram trademark are counterfeits sold at inflated prices. The difference between generic and OEM original bulbs is picture quality and faster deteriorating brightness.

Solution: If you suspect you have received counterfeits, check their authenticity. Request a refund and find a more honest manufacturer. You can also send your lamp to MI Technologies for verification and recycling.

Scenario 3: Substitution without notification

Bid documents often request listing the manufacturer of lamp and housing to justify the higher price for all original parts. When lamps get shipped in different boxes end users usually trust that they get what they ordered.

Solution: Many authorized resellers offer a variety of lamp types so always check whether different boxes also contain different types of lamps.

Scenario 4: Inflated prices

Many lamps for older projectors are only available as aftermarket, meaning there is only the OEM original bare bulb available in a 3rd party housing. Don’t pay inflated prices for original bulbs in an original plastic housing from a projector brand. If your model is no longer in production then, these projector lamps are no longer available.

Solution: Find a trusted reseller of replacement lamps who is working with a verified manufacturer to create generic lamps for older projector models. They are out there!

Sony KDS-60A2000 Front LampWhen it’s time to replace the Sony KDS-60A2000 TV Lamp follow this guide.

Don’t settle for anything but the best and be sure to an authentic  Sony KDS-60A2000 TV. When buying look for the seal of approval — don’t get caught with a counterfeit lamp. They have shorter lamp and are more toxic due to the substitute materials used by counterfeit manufacturers. These lamps often don’t work properly with the sensitive electronics in your projector and are prone to explosions. Keep your projector working properly and invest in an authentic projector lamp.

Warning signs

Your Sony KDS-60A2000 TV lamp should last up to 8000 hours depending in usagfe and the environment it works in. It’s time to replace the TV lamp when the screen becomes darker, or if brightness starts to diminish gradually and the colors look wrong. A message will also appear on screen asking you to replace the lamp and the LAMP LED on the front of the TV starts blinking.

Find this lamp on Amazon sold by these authorized dealers:

Replacing the lamp

Before installations preparations:

  • Unplug the AC power cord on the Sony KDS-60A2000 TV .
  • Your Sony KDS-60A2000 uses the Sony XL-5200 Replacement TV Lamp. Before installing the lamp, let the projector cool for at least 40 minutes. It should be cool to the touch. Don’t rush the cooling as these projectors operate using extremely high temperatures and you run the risk of a serious burn.
  •  _Sony KDS-60A2000 TV_Sony XL-5200 Replacement TV Lamp Take the new Sony XL-5200 lamp out of the box.Do not touch the glass portion of the new lamp. Remove the outside lamp cover.Release the two clamps as shown in the illustration below.

remove lamp door-Sony KDS-60A2000 TV_Sony KDS-60A2000 TV_Sony XL-5200 Replacement TV Lamp

  • Remove the lamp door.
  • Turn the screw counterclockwise and slide the lever to the left.
  • Remove the door.

  • Pull out the Sony XL-5200 lamp. Hold the indented grooves on the top corners of the lampand pull the lamp straight out. If the lamp is hard to remove, pull the right side of the lamp for additional traction.
  • Do not shake the lamp. Vibration can damage the lamp or shorten its life.
  • Avoid touching the front glass of a new lamp.
  • NOTE: The Sony XL-5200 TV lamp contains mercury and should not be thrown into regular garbage. Recycle this lamp!



  • Put the new Sony XL-5200 lamp into its place.
  • Insert the new lamp by pressing the two parts firmly into.
  • Make sure the lamp is securely mounted into the compartment. Failure to do so may cause a fire or the screen to go dark.



Sony KDS-60A2000 TV

  • The lamp compartment should be properly tilted (see the illustration) in order for the installation to be aligned.
  • If the lamp is not securely reattached, the self-diagnostic function may be triggered and the POWER LED blinks three times. Re-insert the lamp if this happens.

  • Reattach the lamp door.
  • Replace the door by inserting the two tabs in the slot from the left side.
  • Slide the lever to the right and then turn the screw clockwise to secure the door.
  • replace door_ new lamp_Sony KDS-60A2000 TV .pngPut the outside lamp cover back in its place.
  • Replace the cover, inserting it from the left side.
  • Press the two tabs on the right side to secure the cover.

You are now ready to reset the TV lamp timer.

Resetting the lamp timer

Turn on the TV and set the Lamp Replacement option in the Setup settings. This setting is necessary to inform you when the next lamp replacement is needed. Until you set the Lamp Replacement option, a message announcing that the lamp is at the end of its life will appear every time you turn on the TV.

reset lamp timer_replace door_ new lamp_Sony KDS-60A2000TV



  • Press MENU.
  • Select Set up. Press enter
  • Scroll down to select Clock/Timers
  • Reset the lamp timer. Press enter.
  • To exit the Settings, press MENU.
Tagged with: ,

Mitsubishi WD-62827 TVHow to install a replacement Mitsubishi WD-62827 TV Lamp

When it’s time to replace the Mitsubishi WD-62827 TV Lamp follow this guide.

The best investment you can make is to invest in an authentic Mitsubishi WD-62827 TV Lamp. Knock-off counterfeit lamps have a shorter lamp life and have been created with toxic substitutes and are prone to explosions that s often damage the sensitive electronics in your projectors. Invest in authentic. The Mitsubishi WD-62827 TV uses the Mitsubishi 915P027010 Replacement TV Lamp.

Buy this lamp on Amazon from the following retailers:

Warning

When the Mitsubishi WD-62827 TV Lamp is approaching end if life, the TV displays a warning message for one minute when you power on the TV. The message will reappear the next five times you turn on the TV. Change the Mitsubishi WD-62827 TV Lamp immediately.

Replacing the projector lamp

Before replacing the projector lamp, please follow these safety precautions.

  • Reduce the risk of electrical shock by disconnecting the power cord on the Mitsubishi WD-62827 TV
  • Reduce the risk of severe burns by allowing the TV to cool for at least 45 minutes. It should be cool to the touch.

MITSUBISHI WD-62827_lamp_cover

After the lamp has cooled, remove the plastic air exhaust grille/cover by removing two screws with a large Phillips screwdriver.

MITSUBISHI WD-62827_remove_lamp

    • With a large flat-blade screwdriver, loosen the three shiny screws securing the Mitsubishi 915P027010 Replacement TV  lamp in place.
    • Open the plastic bag that came with the new lamp.
    • Grasp the wire handle of the lamp cartridge and pull if out straight.
    • CAUTION: Do not tilt or rotate the cartridge, as small glass fragments may fall out. Without tilting or putting down the lamp cartridge, insert it into the opened bag.
    • Close the bag while being careful that no glass particles fall out.Note: The used Mitsubishi 915P027010 lamp contains mercury and should be properly recycled. Don’t throw it into regular garbage. Please recycle this lamp.

MITSUBISHI WD-62827 _replace_lamp

  • Insert the new Mitsubishi 915P027010 Replacement TV  lamp in the same orientation as the old cartridge.
  • Do not touch the glass parts of the new lamp cartridge. Push on the cartridge housing until it is fully seated.
  • Tighten the three screws. AVOID OVERTIGHTENING!
  • Replace the plastic grille/cover and tighten screws.

You are now ready to update the lamp reminder.

Resetting the lamp reminder

To reset the Lamp Reminder:
a. Press TV MENU to open the Setup menu.
b. Move the highlight to Lamp Reminder.
c. Press ENTER twice.



Tagged with: , ,

Follow these instructions when it’s time to replace the Samsung HL-P6163W TV lamp

When the Samsung HL-P6163W TV lamp is reaching end of life you may notice all three LEDs on the front panel — Timer, Lamp, & Temp — are flashing. Colors may appear flattened and the brightness on the screen may be diminished.

Keep it authentic

The Samsung HL-P6163W TV lamp uses the Samsung HL-P6163W TV Replacement TV Lamp. Reduce hassles by always buying authentic. Counterfeits have several chronic problems including:

Find this lamp sold on Amazon by these authorized dealers:

    • Replacing the lamp

      Before replacing the lamp allow the Samsung HL-P6163W TV to cool down for one hour. There is a risk of a serious burn if the TV is not completely cool. Be sure to unplug the TV from the electrical socket. Before replacing the lamp allow the Samsung HL-P6163W TV to cool down for one hour. There is a risk of a serious burn if the TV is not completely cool. Be sure to unplug the TV from the electrical socket.

      Samsung_HL-P6163W_TV_replacement_lamp_BP96-00608A_remove_lamp_door

      Step 1: Use a screwdriver to remove the screw holding the TV lamp cover in place.

      Samsung_HL-P6163W_TV_replacement_lamp_BP96-00608A_lamp_door_2

      Step 2: Remove the Lamp cover.

      Samsung_HL-P6163W_TV_replacement_lamp_BP96-00608A_remove

      Step 3: Using a screwdriver loosen the screws securing the HL-P6163W in place

      Samsung_HLP4663WX:XAA_TV_replacement_lamp_BP96-00608A_replace

      Step 4: Separate the Lamp from the engine by holding the handle and pulling it out.

      NOTE: The contains mercury. Please recycle this lamp. Don’t throw it into conventional garbage.

      Inserting the new lamp

          • Insert the new Samsung HL-P6163W TV Replacement TV Lamp
          • Tighten the two screws on the lamp.
          • Replace the lamp cover and tighten the screws. NOTE: Be sure to tighten the lamp cover on the TV after changing the lamp. Note that the TV will not function if the lamp cover is not securely attached. Please tighten the holding screw on the lamp cover after it has been attached to the TV.

      If any there is no picture or a very dark picture or if the TV won’t turn on, repeats the steps again to ensure the lamp has been installed properly and the lamp door has been re-installed correctly. If any there is no picture or a very dark picture or if the TV won’t turn on, repeats the steps again to ensure the lamp has been installed properly and the lamp door has been re-installed correctly.

      Extend the life of the Samsung HL-P6163W TV Replacement TV Lamp by following these tips.

Tagged with: ,

PE401H_projectorWe have you covered when it’s time to change the NEC NP-PE401H projector lamp.

You can expect up to 2500 hours of lamp use (33pp in Eco-Mode) with your NEC NP-PE401H projector lamp.

When the lamp is reaching end of life the POWER light will start blinking red and the warning messages will appear on screen.

PE401H_projector_lamp_NEC NP24LP_warning

Invest in authentic

Prolong the life of your NEC NP-PE401H projector by installing an original projector lamp. Generic lamps look like a great bargain but have a number of problems. Your NEC NP-PE401H projector uses the NEC NP24LP projector lamp.

6 reasons to avoid counterfeit lamps:

Find this lamp sold on Amazon by these authorized distributors

  • NEC NP24LP Projector Housing w/ High Quality Genuine Original Ushio Bulb
  • NEC NP24LP – Projector lamp – for NEC PE401H

    Changing the NP-PE401H projector lamp

    The NEC NP-PE401H projector uses the NEC NP24LP projector lamp. Follow these important safety instructions before installing the new NEC NP24LP Replacement Projector Lamp.

    • turn off the NEC NP-PE401H projector.
    • unplug the projector from its power source.
    • unplug the power cable.
    • wait until the projector is cool to the touch to avoid getting burned.

    PE401H_projector_lamp_NEC NP24LP_replacement1. Loosen the NEC NP-PE401H lamp cover screw.

    2. Slide the  projector cover off.

    3. Loosen the two screws holding the NEC NP24LP projector lamp in place.

    4. Remove the projector lamp by holding the indent and pulling up.

    NOTE: Your NEC NP24LP projector lamp should be properly recycled and not placed into regular garbage.

    Install a new lamp housing into the NEC NP-PE401H projector, gently pressing the projector lamp housing into the socket. . Tighten the screw on the projector lamp.

    Re-attach the NEC NP-PE401H lamp cover by sliding the cover until it snaps into place. Tighten the screw on the lamp cover.

    Reset the NEC NP-PE401H lamp timer

    Once the NEC NP24LP projector lamp has been replaced you will need to reset the lamp timer.

    PE401H_projector_lamp_NEC NP24LP_reset_timer

    • Plug in the power cored into the wall outlet.
    • Turn on the projector.
    • From the MENU select OPTIONS.
    • Choose CLEAR LAMP HOURS.
    • A confirmation message appears.
    • Select YES.

    Learn more tips for extending the life of the NP-PE401H projector lamp.

Tagged with: , , ,

Shopping for a projector? Understanding resolution is key.

Resolution refers to the number of lines displayed on the screen. The higher the resolution, the crisper the quality of the picture.

Most projectors come with a fixed resolution that is completely separate from the incoming signal received. If you plan to use the projector with only one computer, it’s important to match the resolution to the computer’s resolution.

Here’s a list of the different resolutions:

SVGA = 800×600. The Super Video Graphics Array (SVGA) is a video-display-standard type developed by the Video Electronics Standards Association (VESA) for IBM PC compatible personal computers (PCs).

XGA = 1024×768. XGA-2 is a display mode with high color and higher-refresh rates than XGA. XGA. Introduced by IBM in 1990, this =standard is used in desktop and laptop computers as well as in projection systems.

WXGA = 1280×768. Wide XGA describes a display screen that is appropriate for business but is also suitable for watching DVDs with 16 million colors. This display was common in widescreen notebook computers.

SXGA+ = 1400×1050. This resolution became the standard for early graphics and monitors with an aspect ratio of 5:4 (1.25:1) for 17″ and 19″ LCD monitors. Allows 24-bit colour in 4 MB of graphics memory, or 4-bit colour in 640 kB.

720p = 1280×720. This was the first available High Definition TV resolution. It is still available but is not as popular as it once was now that the prices have come down on the 1080 TVs. By comparison, a 720p TV has twice the resolution of an analog TV picture.

1080p = 1920×1080. Known as Full High Definiton (FHD), this set has the highest number of pixels –1,920 pixels displayed across the screen horizontally and 1,080 pixels down the screen vertically. The “P” stands for progressive scan and uses the widescreen aspect ratio of 16:9. It’s become the ATSC standard in the USA and now includes all TV broadcasts, Blueray Discs, smartphones, Internet content and most TV, projectors, computer monitors, video game consoles and most digital cameras or camcorders.

Learn more about projectors and screens:

Tagged with:

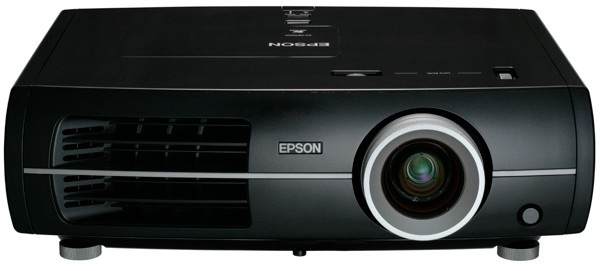

Epson-7500-projector Clean the Epson EMP-7500 air filter

This guide shows how to clean or replace the Epson EMP-5500 air filter.

 When to replace

Clean the air filter at the bottom of the Epson EMP-7500 projector after every 100 hours of use. If it is not cleaned periodically, it can become clogged with dust, preventing proper ventilation.
This can cause overheating and damage the Epson EMP-7500 projector. Keeping the air filter clean will prolong the life of your projector.

Changing the filter

Follow these steps to replace or clean the air filter:

Epson_EMP-7500_clean_air_filter

  1. Turn off the projector and unplug the power cable.
  2. Turn the projector on its side so that the handle is on top and you can access the filter easily. Note: Standing the projector with the handle at the top keeps dust from getting inside the projector housing.
  1. Pull up the filter cover tab to release the filter cover. Remove the cover.
  1. The filter is attached to the inside of the filter cover. It is recommended that you use a small vacuum cleaner designed for computers and other office equipment to clean the filter. If you don’t have one, use a dry, lint-free cloth. If the dirt is difficult to remove or if the filter is torn, replace it.
  2. Replace the Epson EMP-7500 filter cover.
Tagged with: ,

Epson-7500-projector Install a new Epson EMP-7500 projector lamp

This guide shows how to replace the Epson EMP-7500 projector lamp.

 When to replace

The Epson EMP-7500 projector lamp has an expected life of 200 hours. When it’s time to replace the lamp look for these warning signs:

  • The projected image gets darker or starts to deteriorate.
  • The projection lamp indicator flashes orange.
  • The message “LAMP REPLACE” appears on the screen

Finding the correct lamp

Protect your investment and buy a genuine Epson EMP-7500 projector lamp. You will need the Epson ELPLP06 replacement projector lamp.

You can find plenty of bargain generic lamps sold over the Internet. But Buyer Beware! These lamps can damage the sensitive and expensive mechanisms in your EMP-7500 projector.   They are also more prone to explosions due to the inferior materials and have a shorter life.

6 reasons to avoid counterfeit lamps:

Find this lamp on Amazon sold by these authorized dealers:

Installing a new lamp

Pre-installation preparation:

1. Turn off the projector power and wait for the cool-down period which is about two minutes. Disconnect the power cord after the two minutes is over.

2. Wait at least 30 minutes to one hour for the Epson EMP-7500 projector to cool internally before opening it up. It should be cool to the touch.

NOTE: Do not operate the projectors while the lamp is removed as this may result in malfunctions, fire hazard and other accidents.

 To install:

Epson_EMP-7500_projector_lamp_ELPLP06_lamp_cover

Use a screwdriver, coin, or similar object to loosen one retaining screw on the lamp cover. When the screw is loose, lift off the lamp cover. (You cannot remove this screw from the cover.)

Epson_EMP-7500_projector_lamp_ELPLP06_remove

Use a screwdriver, coin, or similar object to loosen two screws holding the lamp in position. (You cannot remove these screws.) Lift up the handle and pull out the Epson ELPLP06 projector lamp

NOTE: The Epson ELPLP06 lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamps!

Gently insert the new lamp by lowering it into position. Make sure it is inserted securely.
Tighten the screws you loosened. Replace the lamp cover and tighten the cover screw.
(Make sure the lamp cover is securely fastened. The projector will not run if the lamp cover is open.)

The lamps timer be automatically be reset to zero.

Extend lamp life

Extend the life of the newly installed Epson ELPLP06 with the following tips:

  • Keep your air filters clean to avoid overheating the projector.
  • Turn off the Epson EMP-7500 projector and let it stand for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
  • Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.
  • Learn more with Top tips for extending DLP projector lamp life.
Tagged with: , ,

Epson_EMP-5500 projector Clean the Epson EMP-5500 air filter

This guide shows how to clean or replace the Epson EMP-5500 air filter.

 When to replace

Clean the air filter at the bottom of the projector after every 100 hours of use. If it is not cleaned periodically, it can become clogged with dust, preventing proper ventilation.
This can cause overheating and damage the projector. Keeping the air filter clean will prolong the life of your projector.

Changing the filter

Follow these steps to replace or clean the air filter:

Epson_EMP-5500_clean_air_filter

  1. Turn off the projector and unplug the power cable.
  2. Turn the projector on its side so that the handle is on top and you can access the filter easily. Note: Standing the projector with the handle at the top keeps dust from getting inside the projector housing.
  1. Pull up the filter cover tab to release the filter cover. Remove the cover.
  1. The filter is attached to the inside of the filter cover. It is recommended that you use a small vacuum cleaner designed for computers and other office equipment to clean the filter. If you don’t have one, use a dry, lint-free cloth. If the dirt is difficult to remove or if the filter is torn, replace it.
  2. Replace the filter cover.
Tagged with: ,
Join the discussion on Facebook! All your questions, answered! The Screen & Projector Group
