Banish white dots on the Samsung HLT6756WX/XAA

White dots on the Samsumg HLT6756WX /XAA screen is a sign the DLP chip needs replacing

Replace your 4719-001997 DLP Chip for under $300 and get rid of those white dots

Note: These instructions can also be used for the following Samsung models:

50A650C1FXZA, HLT5055WX/XAA , HLT5076SX/XAA, HLT5087SX/XAA, HLS5087WX/XAA, HL56A650C1FXZA, HLT5656WX/XAA, HLT5676SX/XAA, HLT5687SX/XAA, HLT5687SAX/XAA, HLT5689SX/XAA, HLT6156WX/XAA, HL61A650C1FXZA, HL61A750A1FXZA, HLT6156WX/XAA, HLT6176SX/XAA, HLT6187SAX/XAA, HLT6187SX/XAA, HLS6187WX/XAA, HLT6189SX/XAA, HL67A750A1FXZA, HLT6756WX/XAA, HL72A650C1FXZA, HLT7288WX/XAA

Find this New Mitsubishi/Toshiba 4719-001997 DLP Chip 1910-6143W on Amazon.

Equipment needed

• • Electric Philips screwdriver
  • needle nose pliers or a 5mm nut driver
  • antistatic gloves OR plastic gloves used with an antistatic wrist band
  • soft cloth or brush

Replacing the 4719-001997 DLP Chip

Step 1

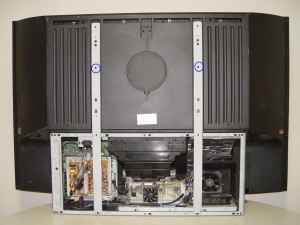

Step 1: Put on the plastic gloves. Loosen all the screws found on the back panel. Put the screws to one side and remove the back panel.

Step 2

Step 2: Loosen the two screws holding the lamp bracket in place.

Step 3

Step 3: Remove the 4 screws holding the lamp engine in place. Disconnect all the connectors. Important: don’t yank any cables.

Step 4

Step 4: Carefully remove light engine from the cabinet.

Step 5

Step 5: Remove the 2 screws holding the color wheel protective cover in it place. Avoid touching any of the optical components as this can affect the quality of your picture.

Step 6

Step 6: Carefully disconnect the cables between the terminal board and lamp.

Step 7

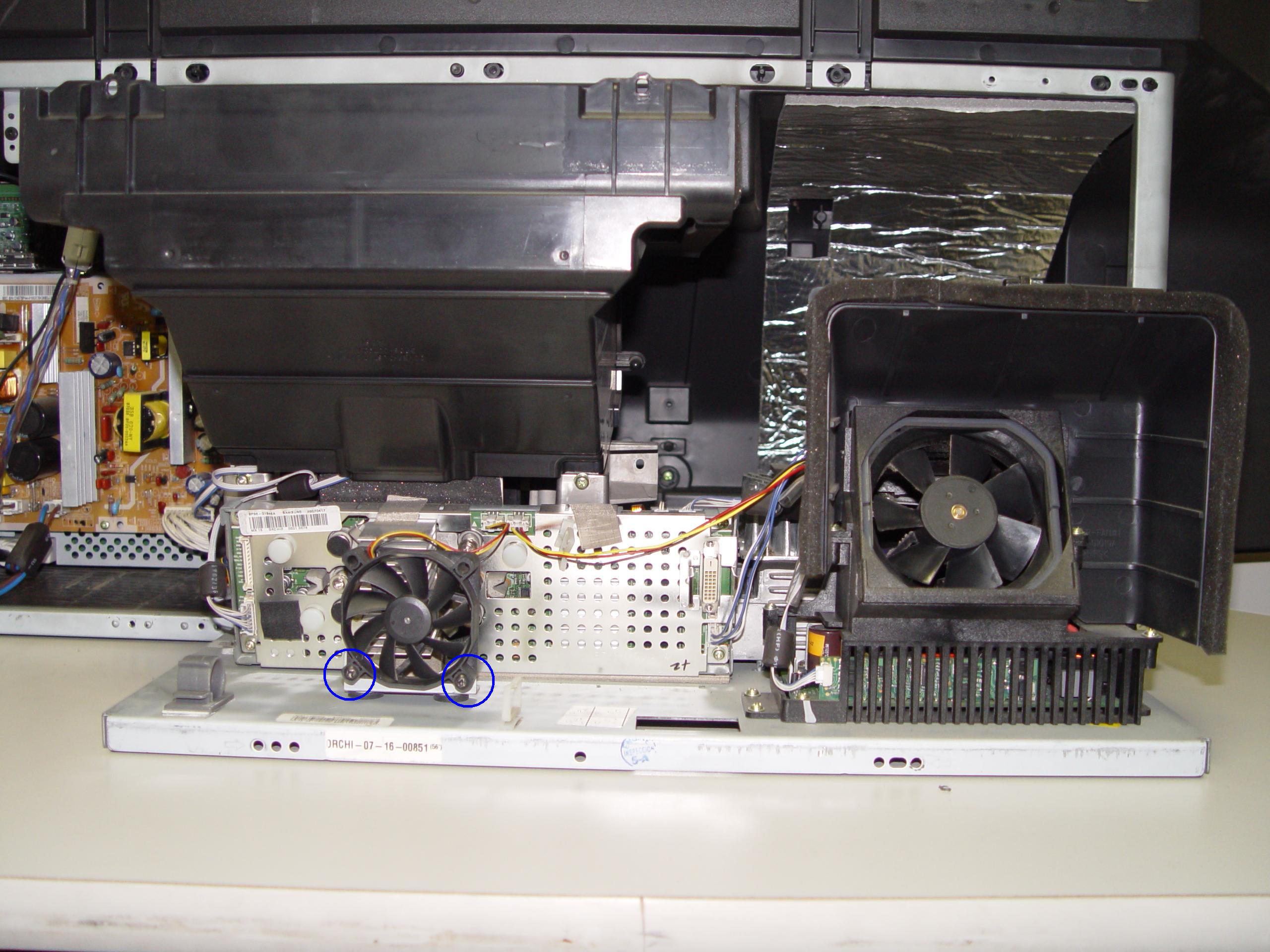

Step 7: Disconnect the clip connecting the cooling unit.

Step 8

Step 8: Remove the cooling unit and terminal board.

Step 9

Step 9: Remove the terminal board.

Step 10

Step 10: Loosen the 7 screws holding the terminal cover in place. (Good time to dust this section).

Step 11

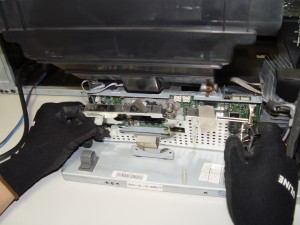

Step 11: Carefully pop the terminal out of its holder.

Step 12

Step 12: Unlock the old DLP Chip from the terminal. You may need to use a flat edged screwdriver to pop it out.

Step 13

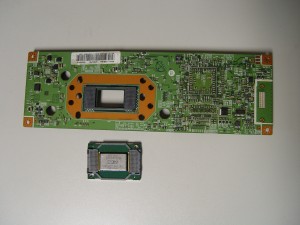

Step 13: Place the new DLP chip into place. Handle the DMD DLP CHIP only by the edges because it is very sensitive to static electricity.

Step 14

Step 14: Put the terminal back into its holder.

Step 15

Step 15: Tighten the 7 screws holding the terminal in place.

Step 16

Step 16: Replace the terminal board’s cover.

Step 17

Step 17: Reconnect the clip holding the cooling unit.

Step 18

Step 18: Re-connect the cables between the terminal board and lamp.

Step 19

Step 19: Tighten the 2 screws holding the color wheel protective cover in it place. Avoid touching any of the optical components as this can affect the quality of your picture.

Step 20

Step 20: Carefully replace the light engine back into the cabinet.

Step 21

Step 21: Replace and tighten the 4 screws holding the lamp engine in place. Re-connect all the connectors.

Step 22

Step 22: Put the light engine back into the RPTV. Tighten both screws that keep the back bracket in place.

Step 23

Step 23: Put the back panel back onto the TV. Put the screws back into place and tighten them. Enjoy the crisp, clear picture on your Samsung HLT6756WX RPTV.
